Shacman 2/3 Axles Container Chassis Semi-Trailer is a specialized vehicle designed for the transportation of containers. It features a robust chassis and a versatile design that allows it to handle various types of containerized cargo. The trailer is equipped with either two or three axles, providing stability and load-bearing capacity for heavy loads.

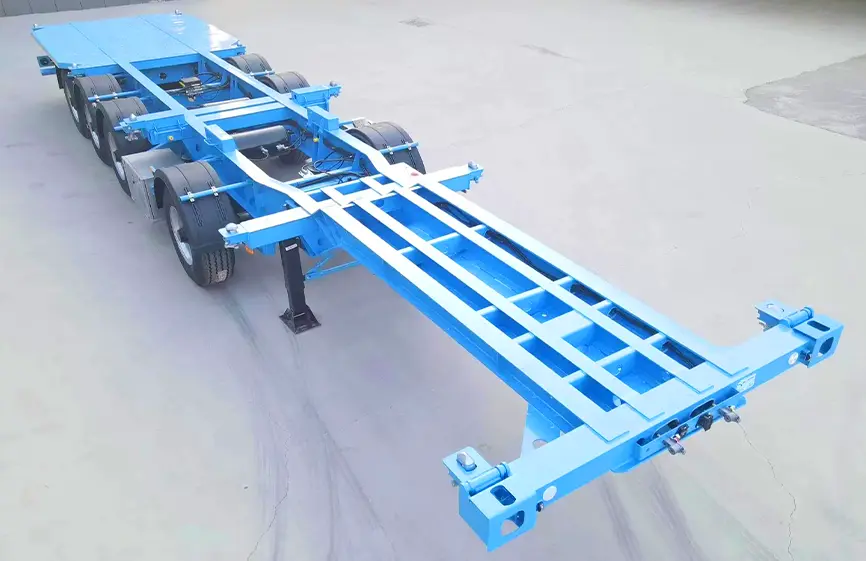

Shacman 2/3 Axle Container Chassis Semi-Trailer, designed for transporting containers. These skeleton trailers can carry 20-foot, 30-foot, 40-foot, and 45-foot containers as required. Equipped with 8-12 standard container locks, utilizing durable trailer axle types and configurations based on the chassis semi-trailer’s load capacity.
BPW, FUWA, or China Axle; self-steering or hydraulic steering axles; single or dual tires; cross-section twist locks; height twist locks; air or mechanical suspension; ABS and EBS braking systems.
The Shacman 2/3 Axles Container Chassis Semi-Trailer is a reliable and versatile solution for the transportation of containers. Its robust construction, multiple axle options, and advanced safety features make it an ideal choice for businesses looking to optimize their logistics operations and enhance overall efficiency.
| Shacman 2/3 Axles Container Chassis Semi-Trailer Specification | |
| Product Type | Container Chassis Semi-Trailer |
| Main Chassis Material | The chassis designed in accordance with the international transportation standards. An “I” section with high resistance to allow to obtain the highest efficiency under all road and weather conditions, is manufactured with automatic tig welding machines. Under and Upper Lamas are 14 mm and main beam is 8 mm |
| Container Sizes | 1×40’, 1x 45 Ft, 1x 30 Ft. or 2×20’ Upper Construction: Floor will be 3/4 mm steel chequred plate. If demanded side walls and front plate according to customer demands. |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Leaf Spring suspension |
| Springs and Type | air suspension also possible |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 12R22.5 (Optional any compatible size) |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, |
| Other Compatible Tire Sizes | 12.00R20 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |

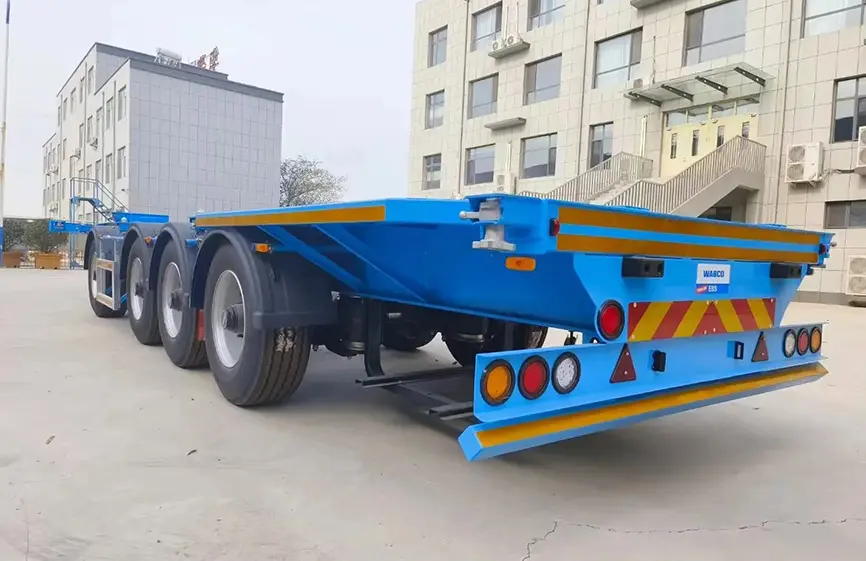

| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
