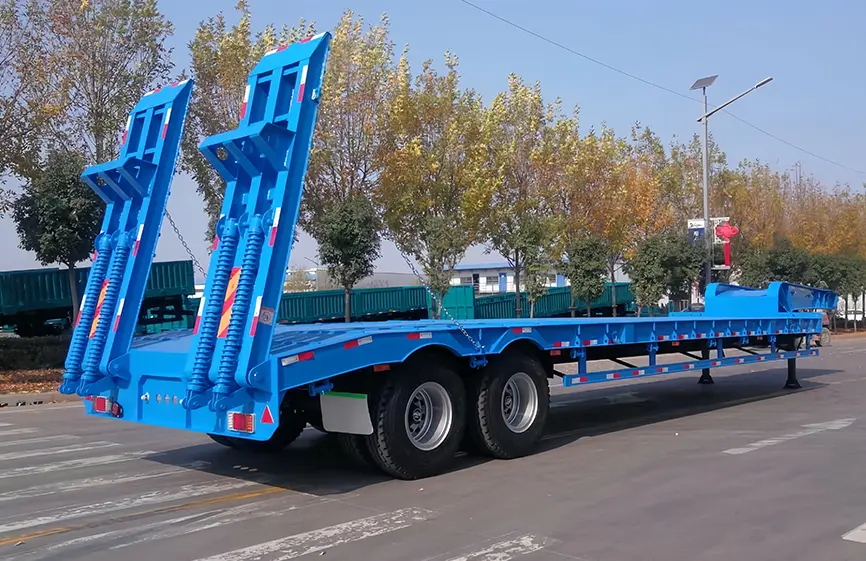

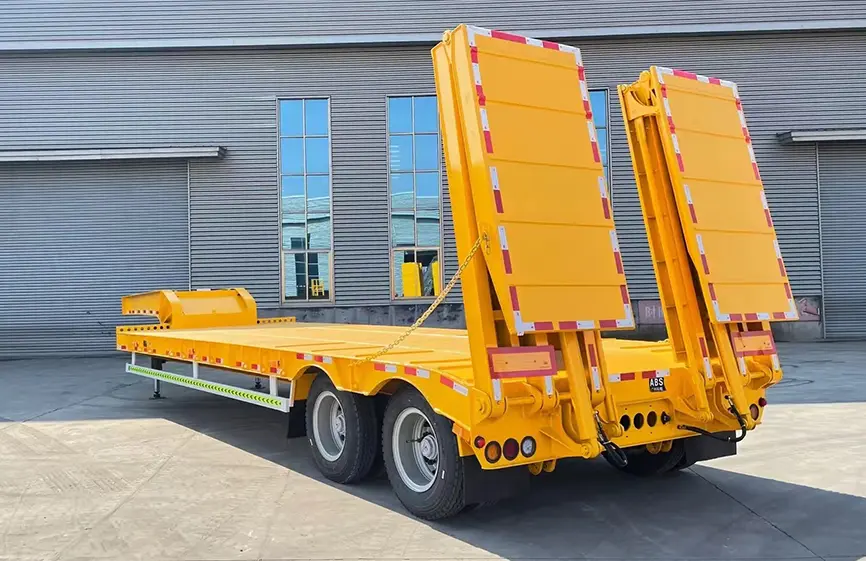

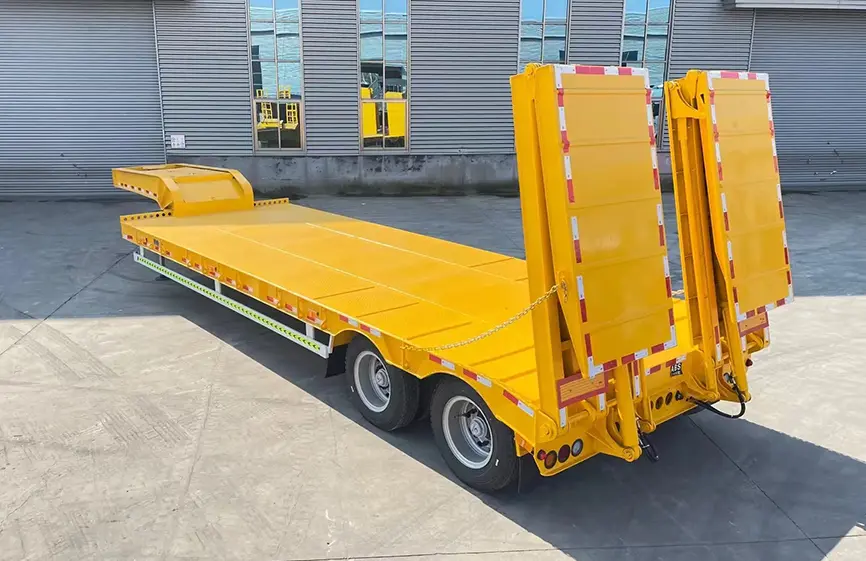

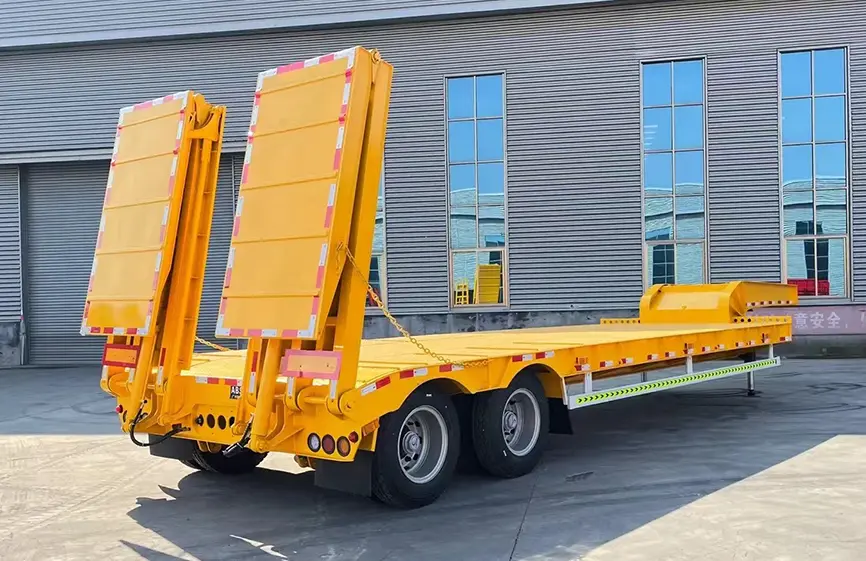

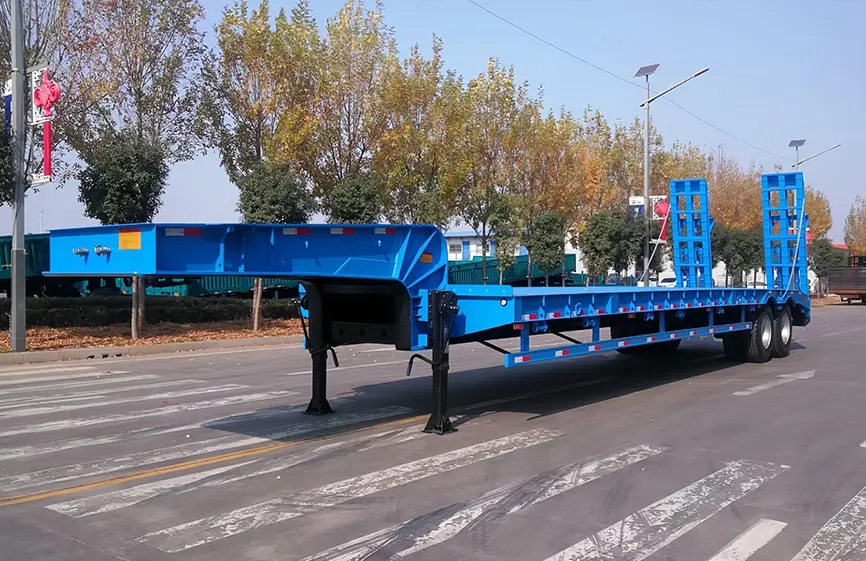

Shacman 2 Axle Lowbed Semi-Trailer is typically used to transport heavy-duty vehicles (such as tractor trucks, large buses, special-purpose vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (e.g., excavators, bulldozers, loaders, pavers, cranes), and other heavy-duty cargo. The Shacman 2 Axle Lowbed Semi-Trailer offers enhanced stability and safety due to its lower center of gravity, enabling superior transport of oversized loads and clearance under overhead obstacles.
The Shacman 2 Axle Lowbed Semi-Trailer can transport machinery ranging from construction equipment to heavy industrial machinery. Tire quality and the hydraulic system play a critical role in maintaining load stability. With axle configurations ranging from 2 to 8 axles, the Shacman 2 Axle Lowbed Semi-Trailer accommodates a wide spectrum of machinery weights. Each trailer model is precisely engineered considering technical dimensions and tonnage requirements.
Additionally, our Shacman 2 Axle Lowbed Semi-Trailer holds OTTC certification and is exported to Africa, Central Asia, Russia, and other regions. Comprehensive after-sales service and sales networks are established in Tanzania, the Tashkent area, and Moscow.
| Shacman 2 Axle Lowbed Semi-Trailer Specification | |
| Product Type & Model | 2 Axle Lowbed Semi-Trailer |
| Main Chassis Material | Q345 material “I” profile is produced with gas welding, it has high-quality strength, produced according to the 98/91 EEC standards (Optional special steel for light weight design) |
| Chassis Floor Material | Structurally reinforced sheet base, the top of the wheels in 9.240 mm (for 3-axle type) platform length are drop-patterned steel and the rest of the platform has hardwood cover with 45 mm thickness |
| Chassis Extension | N/A (Optional chassis extension with any length in technical limits) |
| External Length | 12500 mm (for 3-axle type) (Optional design with any size) |
| Gooseneck Length | 3000 mm (for 3-axle type) (Optional design with any size) |
| Total Height from Ground | 3.500 mm (The maximum height is variable according to the slope of the ramp in its open position) |
| Semi-Trailer Platform Height | Optional design from 900 mm to 1200 mm |
| Total Width | 3000 mm – If side extension brackets available + 600 mm (Optional design with any size) |
| Semi Trailer Tare Weight | 8.5 Tons (for 3-axle type) (Varies with optional properties design) |
| Semi Trailer Gross Weight | 51 Tons (Optional design up to 72 tons, for 3-axle type) |
| Steering System | Self-steering (Optional mechanical or hydraulic steering system) |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3-4-5-6-7-8 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 25 tons) |
| Each Sequence Twin/Single Wheel | Twin wheel (Depends on tire dimension) |
| Number of Liftable Axles and Position | Only front axle as standard |
| Number of Steered Axles and Position | Optional other options |
| Type of Steered Axles | Optional mechanical or hydraulic steering |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 245/70R17.6 dimension (Optional any compatible size) |
| Other Compatible Tire Sizes | 235/75R17.5 – 245/70R17.5 – 295/60R22.5 – 12R22.5 – 315/80R22.5 or any size within compatible |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS, 2S/2M (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Extension Brake Module | If chassis extension available, additional air and electrical signal accelerator hardware |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V, optional 12V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Additional Electrical Connection | Directly battery connection sockets (24V, + and -) in front of the gooseneck for the power unit |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Reflectors | Reflector application suitable for traffic regulations |
| Blackout Lambs | Available as optional |
| Rotating Lamp | Rotating lamp for warning |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Telescopic landing gears mechanical with two speeds, static 50 tons capacity |
| Additional Supporting Legs | Additional mechanical lockable legs at rear as optional |
| Side Extension Brackets | 25-35 cm and lockable side extension brackets at each side as optional |
| Ro-Ro Rings | 6 + 6 ro-ro connection rings at each sides as optional |
| Safety Link of Rear Ramp | Easily removable safety connection |
| Lockable Cabinets | 1 lockable cabinet (optionally 2) on gooseneck |
| Spare Tire Holder | 1 spare tire holder (optionally 2) in front of the gooseneck |
| Fire Extinguisher Cabinet | 1 unit fire extinguisher tube and cabinet |
