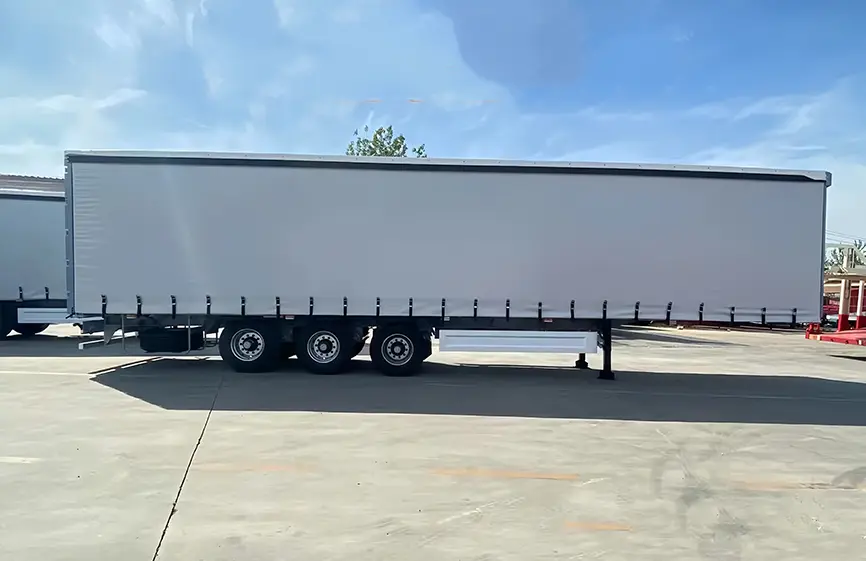

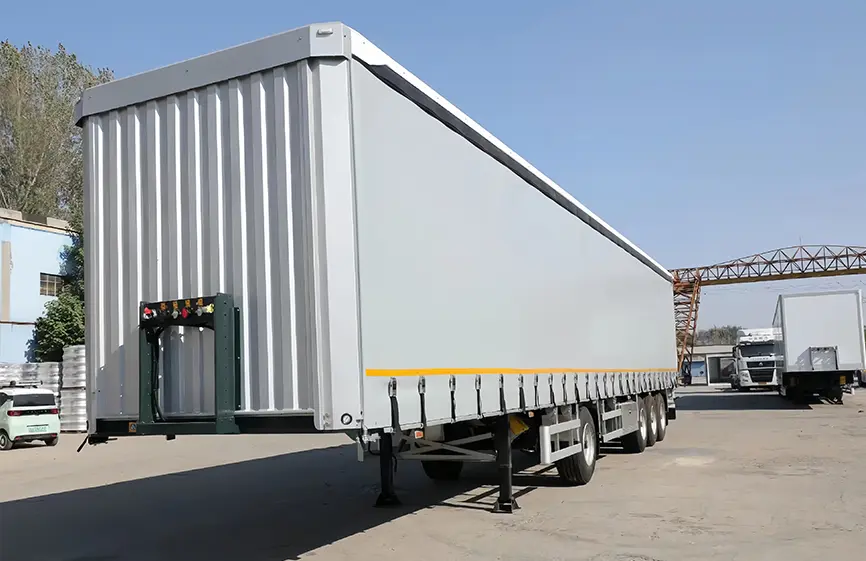

Shacman 3 Axle Curtain Side Trailer is a heavy-duty commercial vehicle designed for efficient transportation of goods. This trailer features a robust construction, ensuring durability and reliability during long-distance hauling. The three-axle design provides enhanced stability and load-bearing capacity, making it suitable for various cargo types and sizes.
The curtain side trailer offers a versatile loading option, allowing easy access to the cargo compartment from both sides. The curtains can be quickly rolled up or down, facilitating efficient loading and unloading operations. Additionally, the curtains provide weather protection, keeping the goods safe from external elements during transit.
Equipped with advanced braking systems and suspension components, the Shacman 3 Axle Curtain Side Trailer ensures optimal control and comfort on the road. The trailer also complies with international safety standards, ensuring peace of mind for both drivers and cargo owners.
With its impressive payload capacity and fuel-efficient design, the Shacman 3 Axle Curtain Side Trailer is an ideal choice for businesses looking to streamline their logistics operations while maintaining high levels of efficiency and safety.
| Shacman 3 Axle Curtain Side Trailer Main Structure | |
| Product Type | Curtain Side Trailer |
| Main Chassis Material | (Manganese steel Q345 material) Upper wing 14mm lower wing 14mm vertical plate 8mm |
| Dimension | 16500*2550*4000mm (Optional design ) |
| Semi Trailer Axle Specification | |
| Number of Axles | 3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
