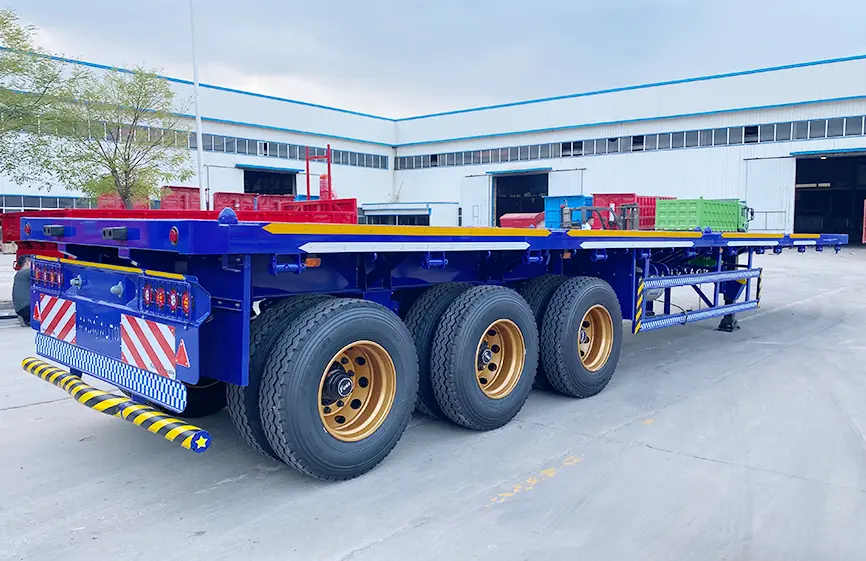

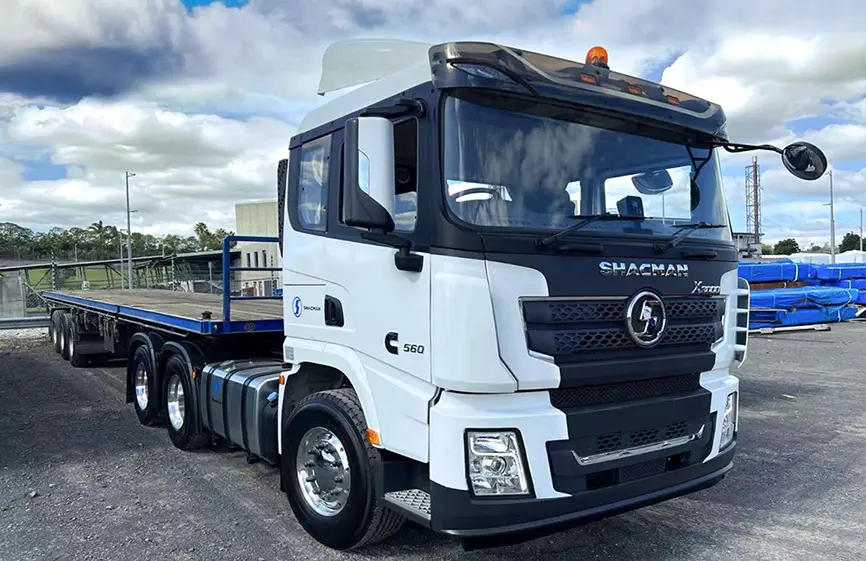

Shacman 3 Axle Flatbed Semi Trailer offers an efficient, safe, and convenient solution for container transportation through its specialized design and structure. It is widely utilized in logistics systems supporting ships, ports, shipping routes, highways, transfer stations, bridges, tunnels, and multimodal transport.
Primarily used in the transportation and logistics sectors, the Shacman 3 Axle Flatbed Semi Trailer serves long-haul freight, construction projects, freight forwarding, and other applications involving oversized or heavy-duty cargo. Its flexibility, ease of loading, and ability to protect diverse cargo types make it a popular choice within the transportation industry.
Main Product Types and Features of Shacman 3 Axle Flatbed Semi Trailer

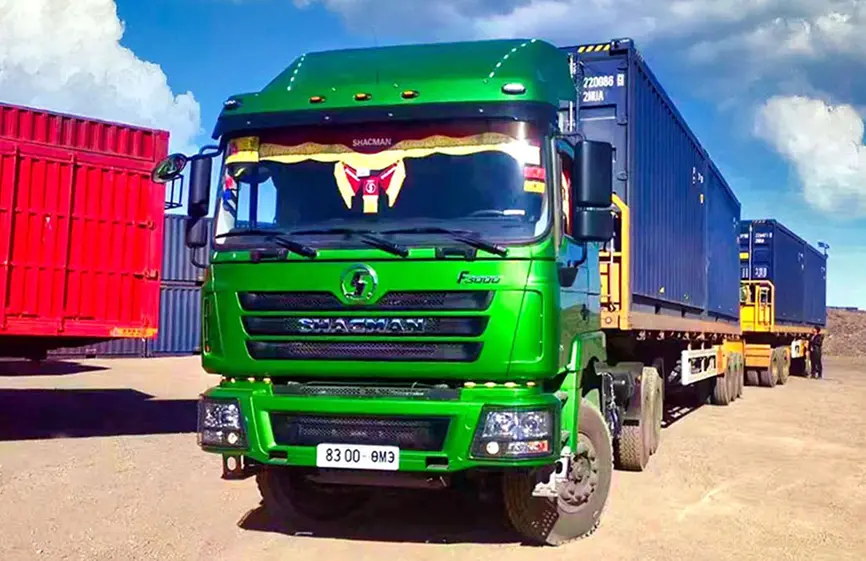

Container Transport Type: Examples include 40-foot skeleton container semi-trailers and flatbed container transport semi-trailers. Primarily used for transporting standard containers, these feature skeleton or flatbed structures compatible with 20-foot, 40-foot, and 45-foot containers.
Heavy Equipment Transport Type: Includes low-bed semi-trailers with load capacities ranging from 60 to 100 tons. Designed for transporting heavy machinery and construction equipment, these trailers feature a low chassis height for efficient loading and unloading of oversized cargo.

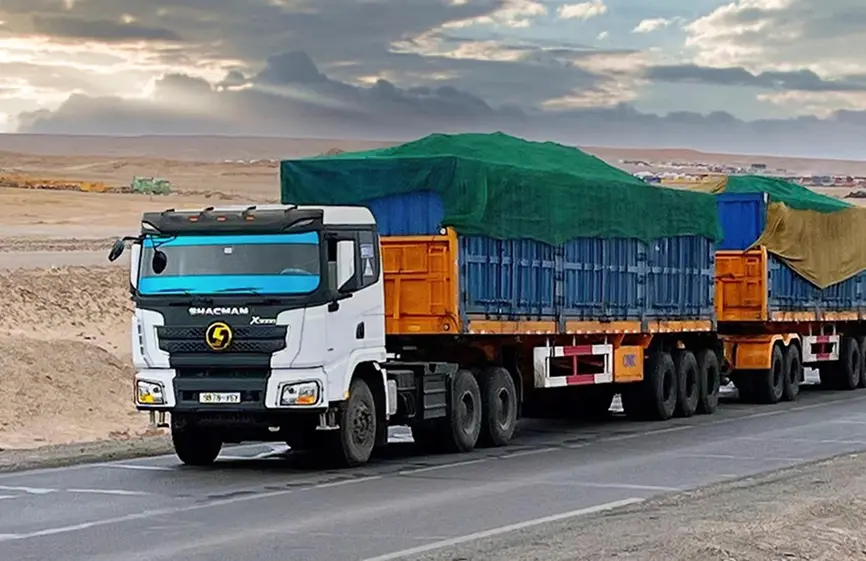

General Cargo Transport Type: Some models incorporate side walls for transporting general bulk cargo or oversized items. Constructed primarily from steel, these trailers offer high structural strength.
| Shacman 3 Axle Flatbed Semi Trailer Main Structure | |
| Product Type | Flatbed Semi Trailer |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |
| Length | 12.5/13*2.50*1.65mm （Can be customized） |
| Semi Trailer Axle Specification | |
| Number of Axles | 3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Rim Dimensions | 22.5X11.75 steel rims with standard tire dimension |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, totally 12 units (for 24m3) |
| Other Compatible Tire Sizes | 12 R 22.5 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |

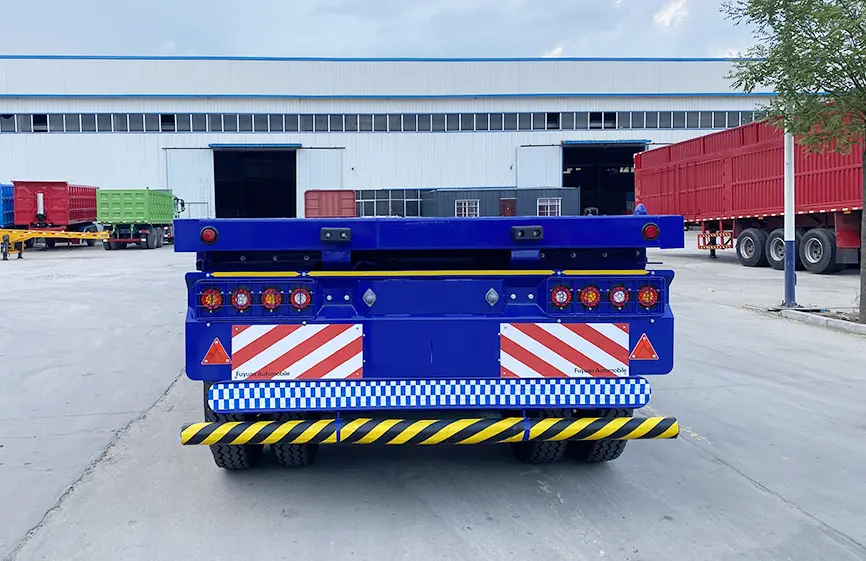

| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
