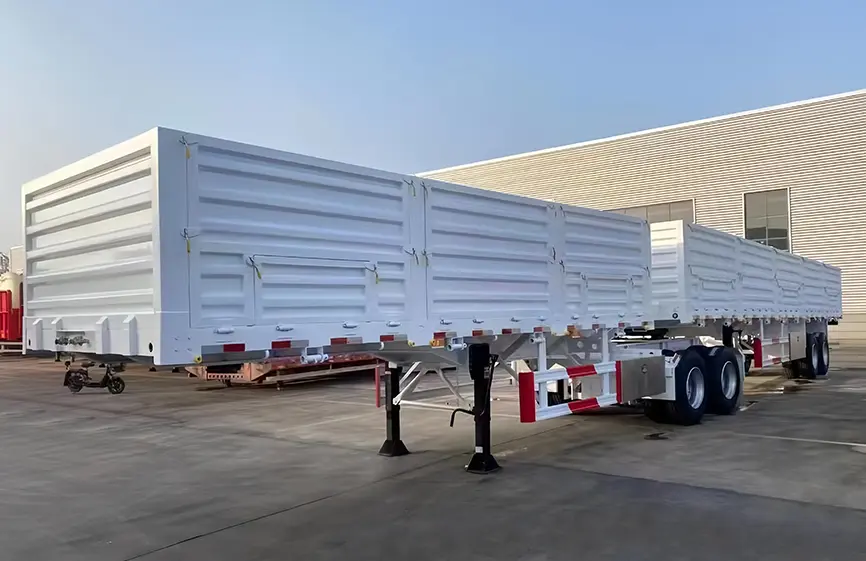

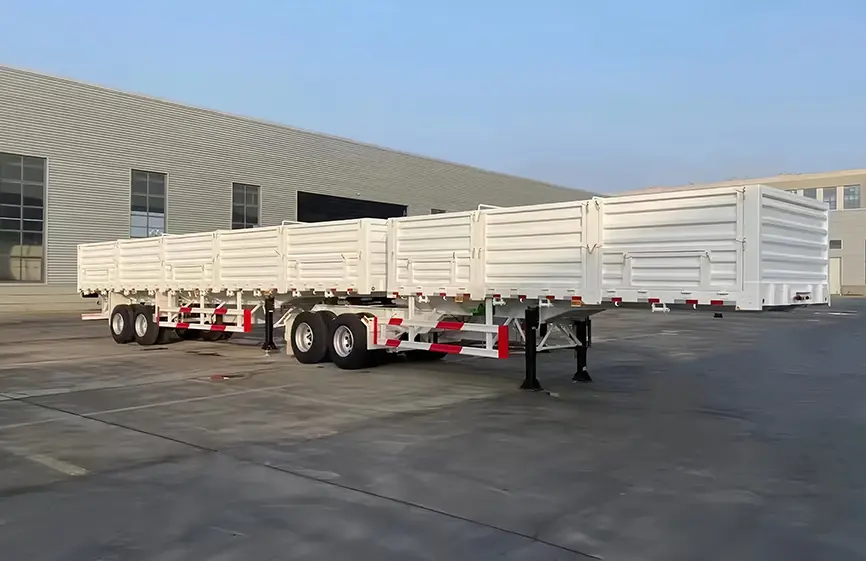

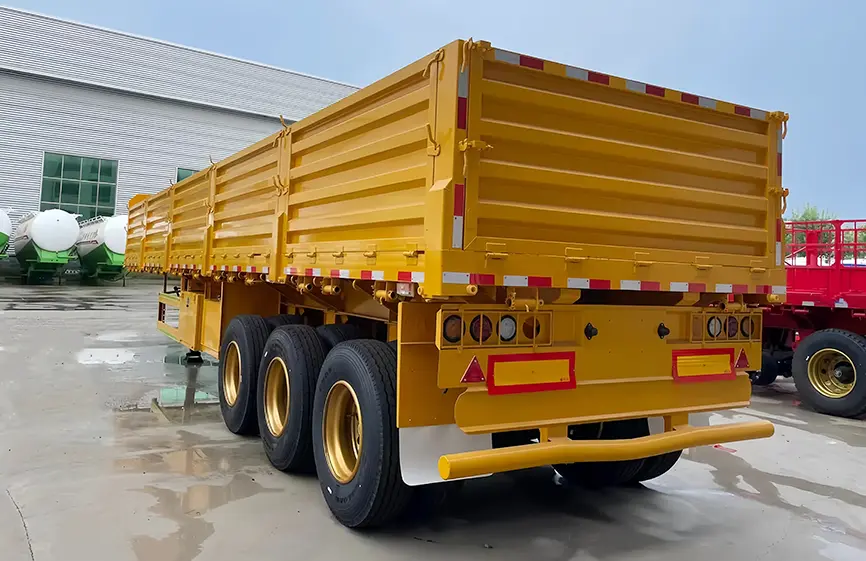

Shacman 3 Axle Side Wall Semi Trailer is a heavy-duty commercial vehicle designed for efficient transportation of goods. This trailer features a robust construction with a three-axle setup, providing stability and load-bearing capacity for various cargo types. The side wall design offers easy access to the cargo compartment, facilitating loading and unloading operations.
Three-Axle Configuration: The 3-axle design enhances stability and load-carrying capacity, making it suitable for transporting heavy loads over long distances.
Side Wall Design: The side wall design allows for convenient access to the cargo area, enabling efficient loading and unloading of goods.
Durable Construction: Built with high-quality materials and advanced manufacturing techniques, this semi-trailer ensures durability and reliability in demanding transportation applications.
Adjustable Suspension System: The suspension system is engineered to provide a smooth ride and optimal load distribution, reducing wear and tear on the vehicle and improving overall performance.
Safety Features: Equipped with safety measures such as brake systems, lighting, and reflective markings, ensuring compliance with traffic regulations and enhancing road safety.
Customization Options: Shacman 3 Axle Side Wall Semi Trailer can be customized to meet specific customer requirements, including cargo compartment size, door configurations, and additional equipment.
Fuel Efficiency: Advanced aerodynamics and fuel-saving technologies contribute to reduced fuel consumption, making it an environmentally friendly and cost-effective transportation solution.
Wide Application: Ideal for various industries, including logistics, construction, and agricultural sectors, where efficient and reliable cargo transportation is essential.
In summary, the Shacman 3 Axle Side Wall Semi Trailer is a versatile and robust vehicle designed for efficient cargo transportation. Its durable construction, adjustable suspension, and customization options make it an ideal choice for businesses seeking a reliable and cost-effective solution for their transportation needs.
| Shacman 3 Axle Side Wall Semi Trailer Main Structure | |
| Product Type | Side Wall Semi Trailer |
| Main Chassis Material | (Manganese steel Q345 material) Upper wing 14mm lower wing 14mm vertical plate 8mm |
| Dimension | 12500*2500*600mm (Optional design800/1000/1200mm ) |
| Semi Trailer Axle Specification | |
| Number of Axles | 3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 12R22.5 (Optional any compatible size) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
