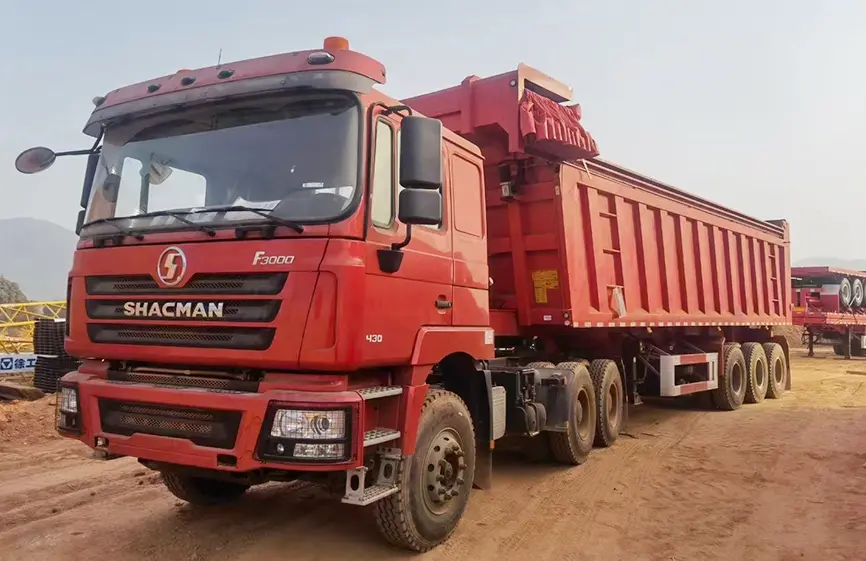

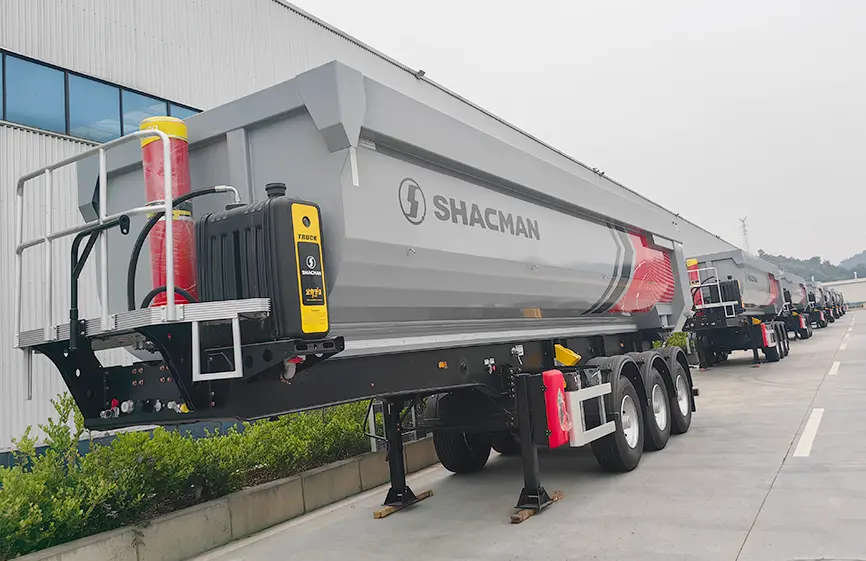

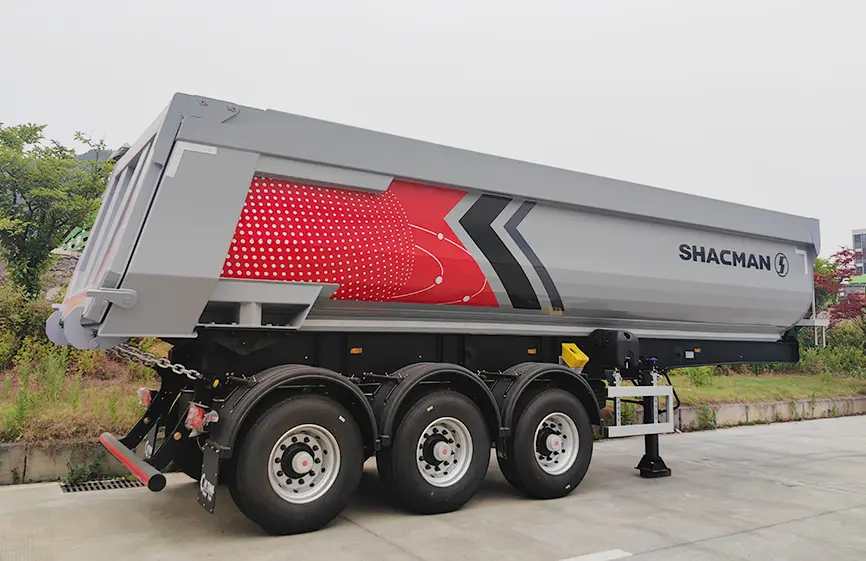

The Shacman 3 Axle Tipper Semi-Trailer is primarily designed for transporting large volumes of heavy materials such as rocks, gravel, sand, and other construction-related items. This makes it an indispensable asset in the construction sector, facilitating seamless material delivery to job sites. Meticulously engineered to withstand the challenging conditions and heavy loads typical of construction sites, this trailer ensures reliability and durability.
Large-scale construction projects and the mining industry benefit from this robust trailer as it serves as a vital transport vehicle for moving ore, rock, and other critical materials to and from processing plants. In this sector, the Shacman 3 Axle Tipper Semi-Trailer excels by providing a safe, economical, and efficient transportation solution—essential for high-risk mining operations.
Additionally, our Shacman 3 Axle Tipper Semi-Trailer holds OTTC certification and boasts an extensive sales network and after-sales service presence across Africa, Central Asia, and Russia.
Exclusive Features of the Shacman 3 Axle Tipper Semi-Trailer
1. Suitable for diverse applications including transportation logistics, construction projects, port handling, and mining operations, primarily transporting sand, gravel, grain, coal, and similar cargo.
2. The body panels are constructed from domestically produced high-strength wear-resistant steel, while primary load-bearing components utilize premium domestic high-strength steel. This enhances structural integrity and abrasion resistance while reducing overall vehicle weight.
3. Large body capacity ensures high transportation efficiency.
4. The tailgate incorporates a dual-hinge mechanism to prevent cargo buildup from obstructing opening and closing operations.
| Shacman 3 Axle Tipper Semi-Trailer Main Structure | |
| Product Type | Tipper Semi-Trailer |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |
| Body Material | Body is made of Q345/NM450 materials for maximum abrasiveness and impact resistance. (Optional special Hardox® 450 and Hardox® 500 Tuf steel for light weight design) |
| Tail Gate | Mechanical open, lengthwise, top-hinged (Optional hydraulic) |
| Volume | 30 m3 (Optional design with any volume) |
| Semi Trailer Axle Specification | |
| Number of Axles | 3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Rim Dimensions | 22.5X11.75 steel rims with standard tire dimension |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, totally 12 units (for 24m3) |
| Other Compatible Tire Sizes | 12 R 22.5 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
