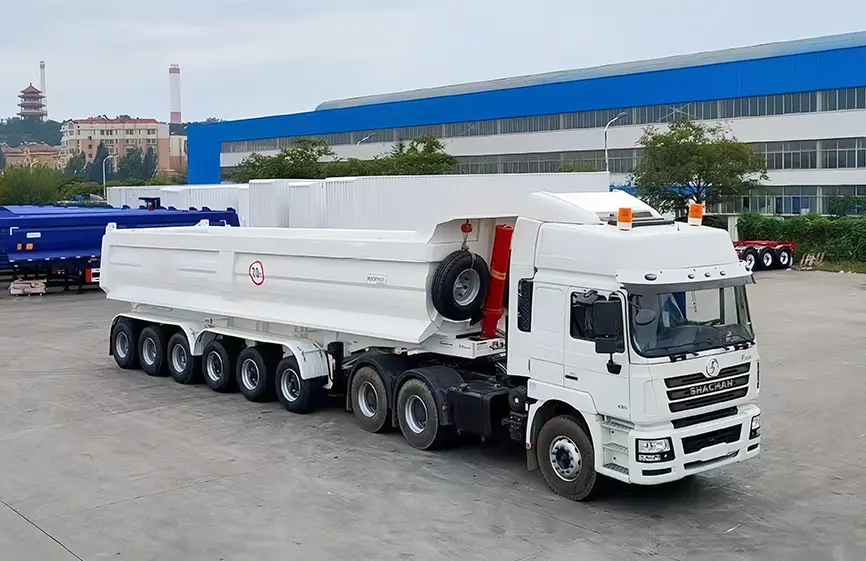

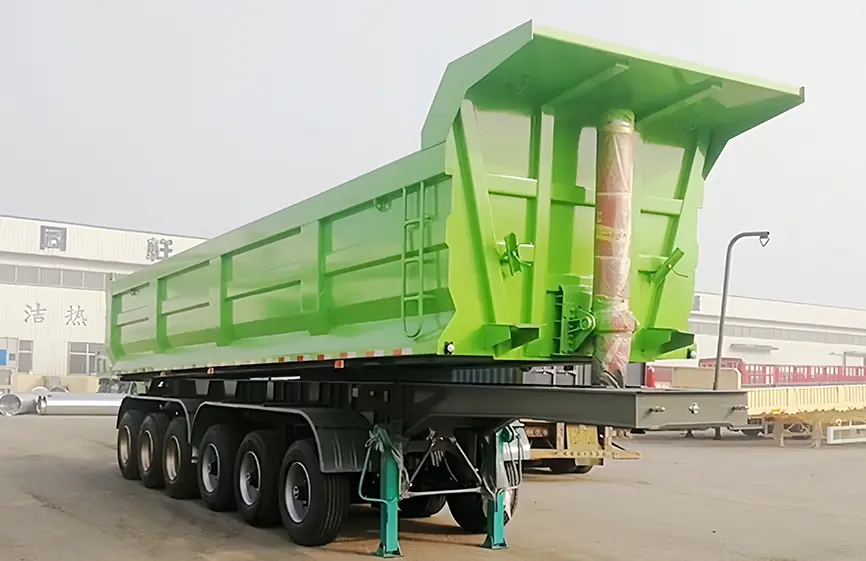

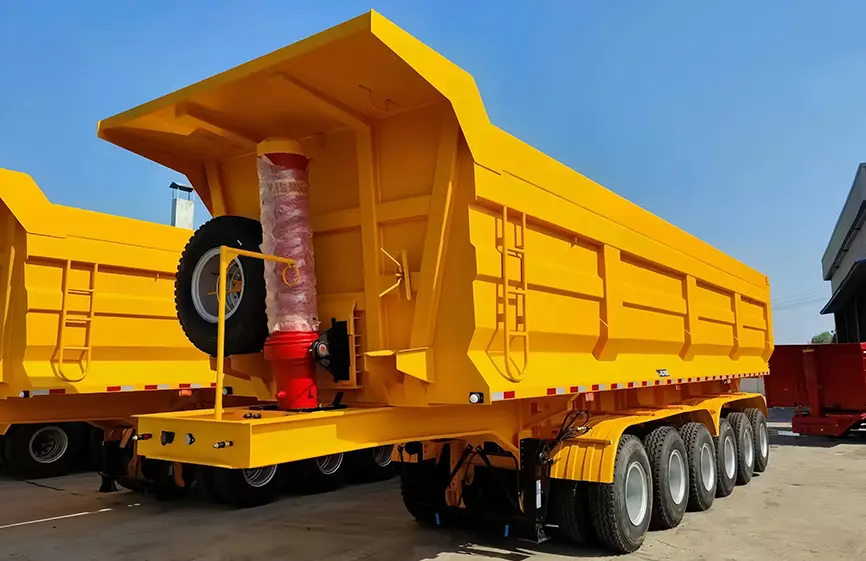

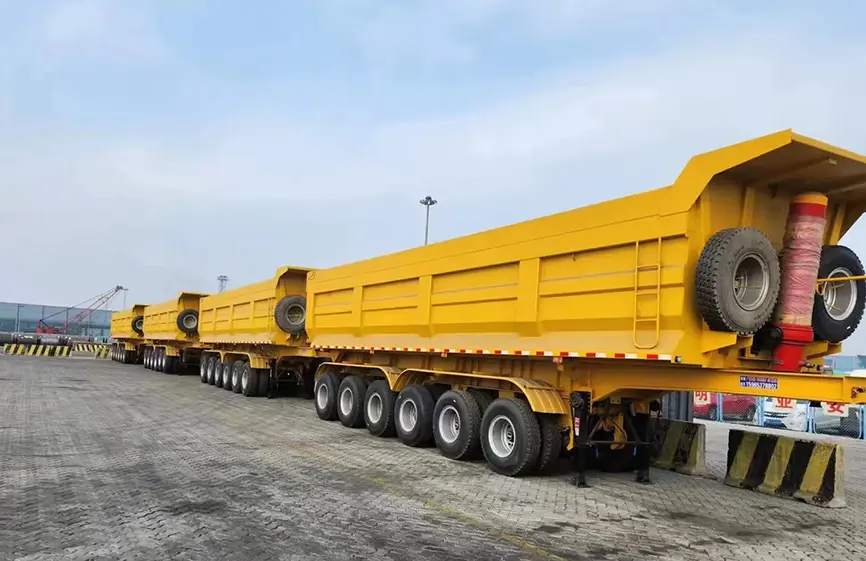

Shacman 6 Axle Tipper Semi-Trailer is a heavy-duty vehicle designed for efficient and safe transportation of bulk materials. This semi-trailer features a robust construction, ensuring durability and reliability in various working conditions. The six-axle design provides excellent stability and load-carrying capacity, making it suitable for hauling large volumes of materials such as coal, sand, gravel, and other construction materials.

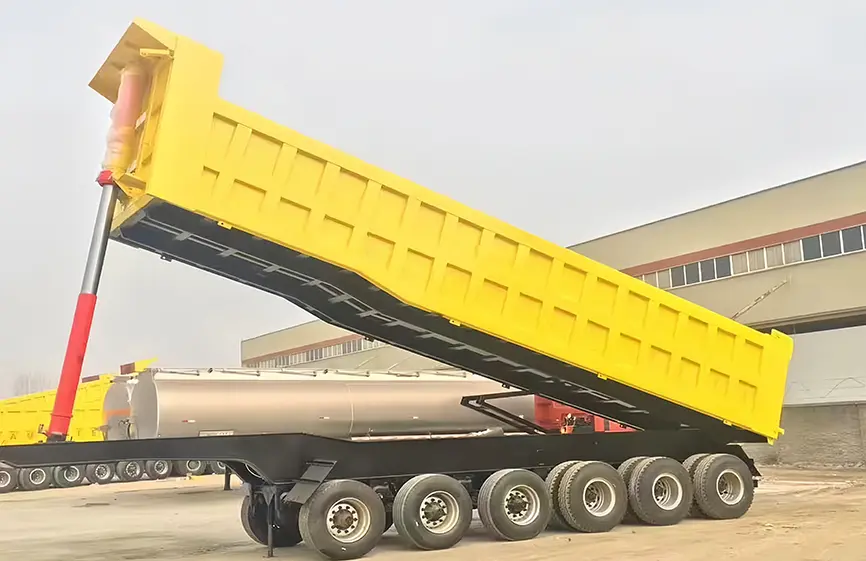

The tipper body of the Shacman 6 Axle Tipper Semi-Trailer is made of high-quality steel, which guarantees strength and resistance to wear and tear. The hydraulic tipping mechanism allows for smooth and controlled dumping of materials, reducing the risk of spillage and improving overall efficiency. The spacious loading area ensures that the trailer can accommodate large quantities of materials, while the reinforced frame and suspension system provide a comfortable ride for the driver and protect the cargo during transit.
In addition to its impressive performance capabilities, the Shacman 6 Axle Tipper Semi-Trailer also boasts a range of safety features. These include LED lights, reflective tape, and a backup alarm, which help to ensure the safety of the driver, passengers, and other road users. The trailer is also equipped with a locking system that secures the tipper body when not in use, preventing unauthorized access and potential theft.
| Shacman 6 Axle Tipper Semi-Trailer Main Structure | |
| Product Type | Tipper Semi-Trailer |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |
| Body Material | Body is made of Q345/NM450 materials for maximum abrasiveness and impact resistance. (Optional special Hardox® 450 and Hardox® 500 Tuf steel for light weight design) |
| Tail Gate | Mechanical open, lengthwise, top-hinged (Optional hydraulic) |
| Volume | 40 m3 (Optional design with any volume) |
| Semi Trailer Axle Specification | |
| Number of Axles | 6 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Rim Dimensions | 22.5X11.75 steel rims with standard tire dimension |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, totally 12 units (for 24m3) |
| Other Compatible Tire Sizes | 12 R 22.5 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
