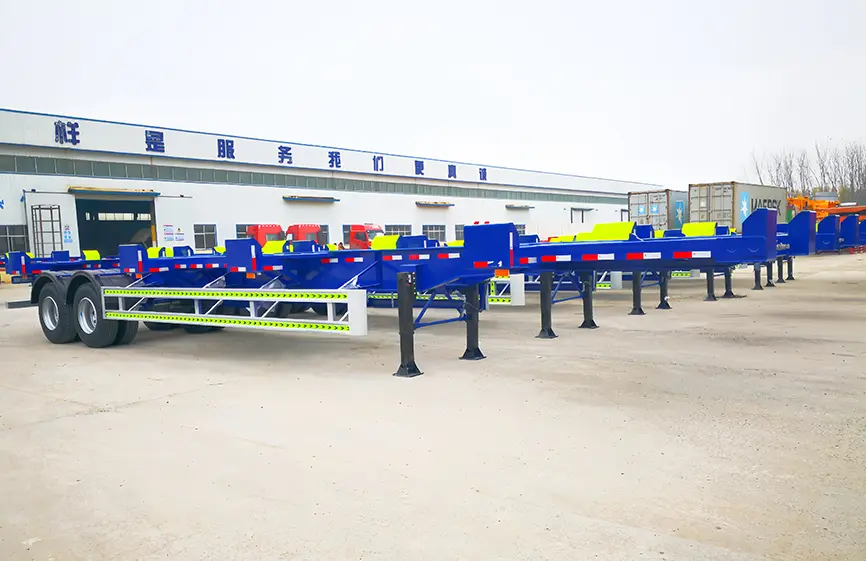

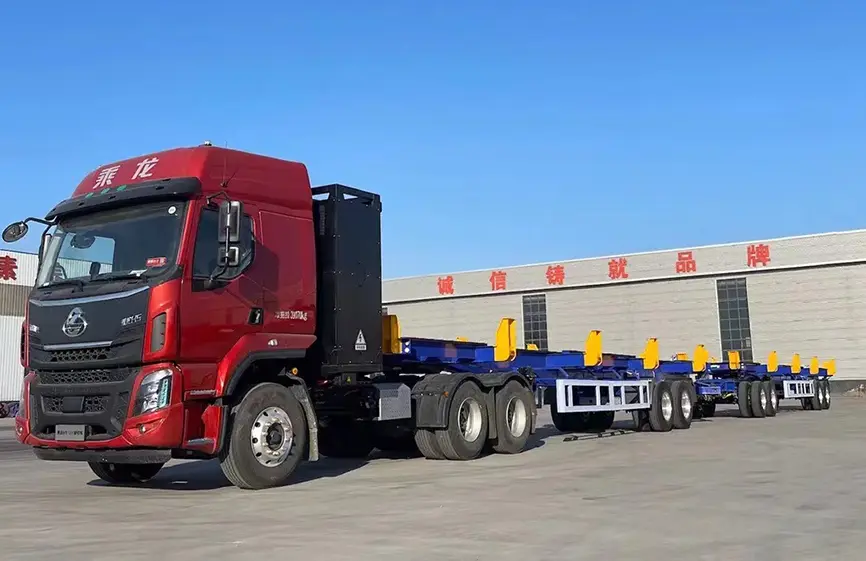

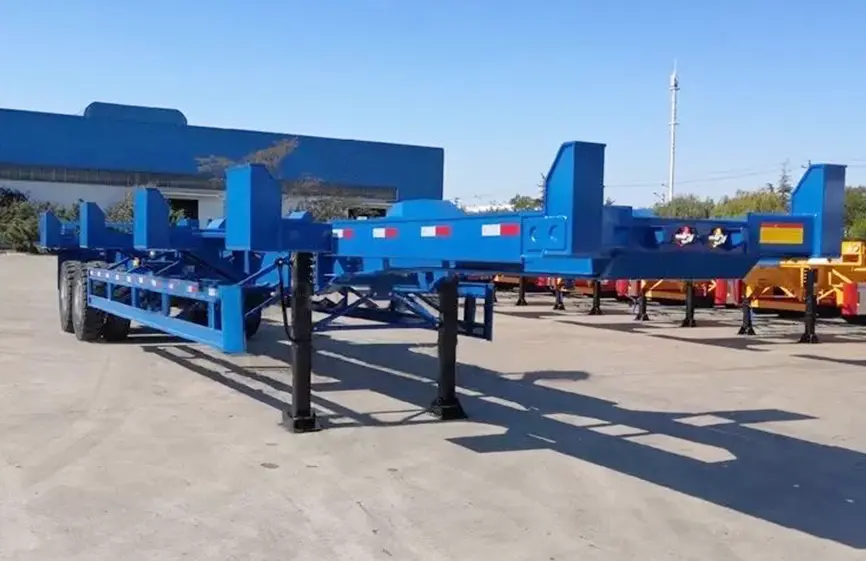

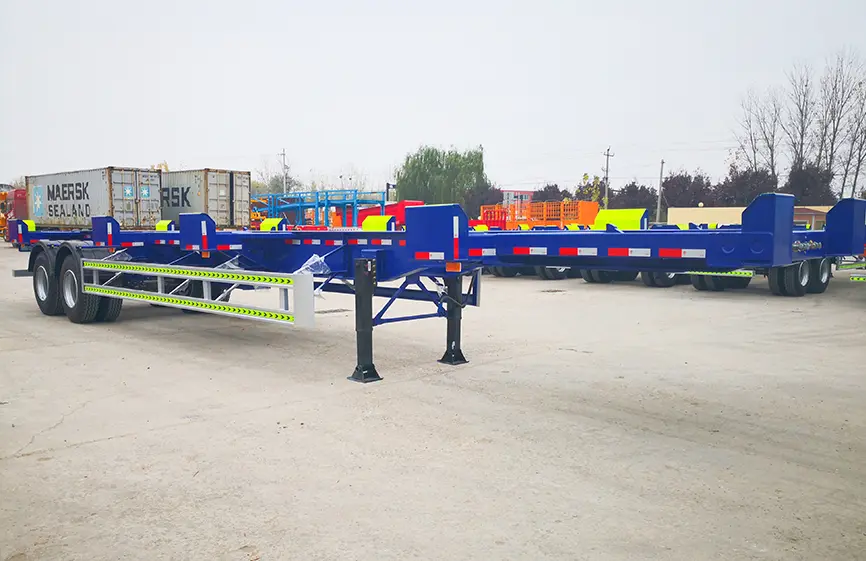

The Shacman Container Chassis Semi Trailer is designed to transport containers of various sizes ranging from 20 feet to 45 feet, making it the perfect choice for port container transportation operations. The Shacman Container Chassis Semi Trailer can also be used for a variety of transportation purposes, including towing ISO tanks, ISO containers, logs, and more.
1. High-strength structure and adaptability, capable of withstanding various harsh road and weather conditions.
2. Reasonable axle load distribution, ensuring maximum load capacity.
3. High transportation efficiency, capable of quickly completing container loading, unloading, and transportation tasks.
4. High safety and reliability, effectively protecting the safety of cargo.
5. Customizable to meet customer requirements, offering flexibility and adaptability.
1. Ports: The Shacman Container Chassis Semi Trailer is an important vehicle type for port transportation, capable of quickly and safely transporting containers to port terminals.
2. Railways: The Shacman Container Chassis Semi Trailer is also an important tool for intermodal transportation, capable of efficiently completing cargo transportation tasks.
3. Construction sites: Construction sites require frequent transportation of building materials, and the Shacman Container Chassis Semi Trailer can effectively address this need.
| Specification | |
| Product Type | Shacman Container Chassis Semi Trailer |
| Main Chassis Material | The chassis designed in accordance with the international transportation standards. An “I” section with high resistance to allow to obtain the highest efficiency under all road and weather conditions, is manufactured with automatic tig welding machines. Under and Upper Lamas are 14 mm and main beam is 8 mm |
| Container Sizes | 1×40’, 1x 45 Ft, 1x 30 Ft. or 2×20’ Upper Construction: Floor will be 3/4 mm steel chequred plate. If demanded side walls and front plate according to customer demands. |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Leaf Spring suspension |
| Springs and Type | air suspension also possible |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 12R22.5 (Optional any compatible size) |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, |
| Other Compatible Tire Sizes | 12.00R20 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
