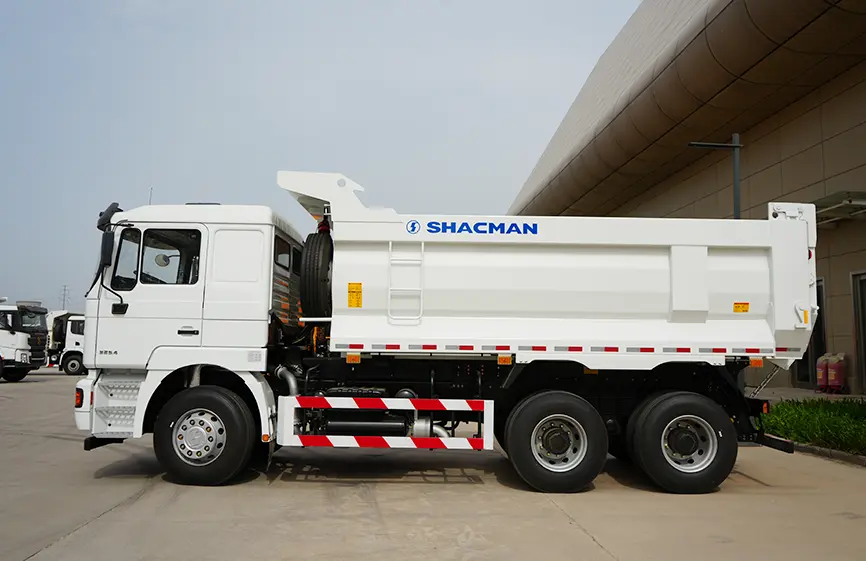

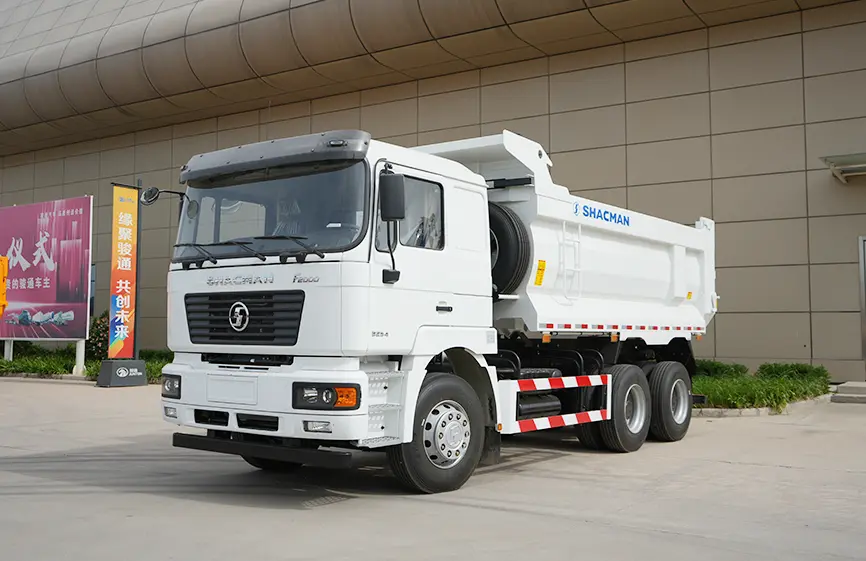

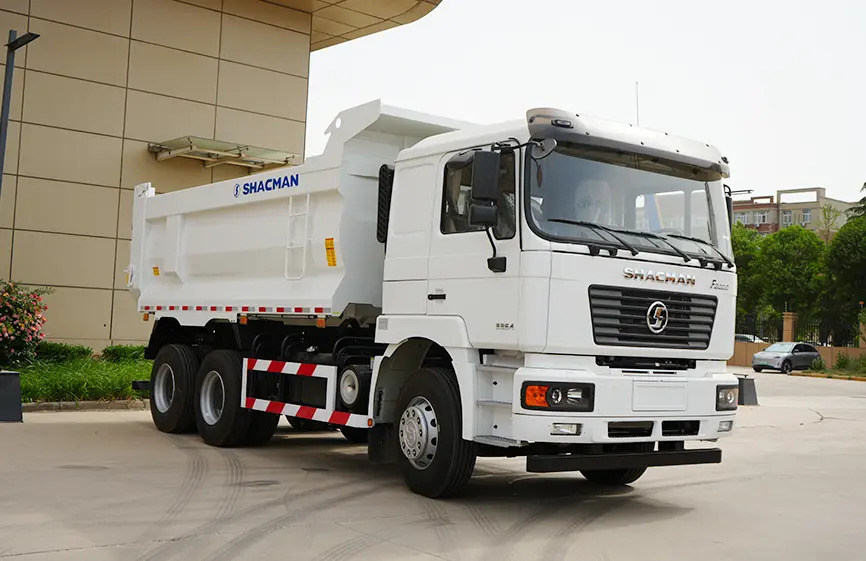

In the heavy-duty construction machinery sector, the Shacman F2000 6X4 3254 Tipper Truck, with its exceptional load-carrying performance, has become a key player in mining transportation. Equipped with a Weichai WP10.300E22 engine with a 300-horsepower output and a Fast 9-speed transmission, the Shacman F2000 6X4 3254 Tipper Truck maintains stable climbing capability even on a 45° incline. Its 6X4 drive system with dual rear axles and reinforced leaf spring suspension enables a maximum compliant load capacity of 25 tons.

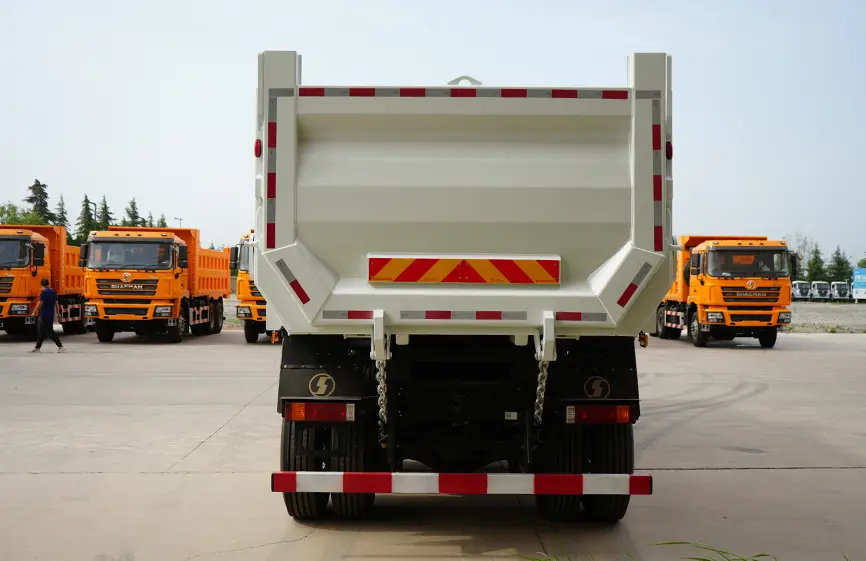

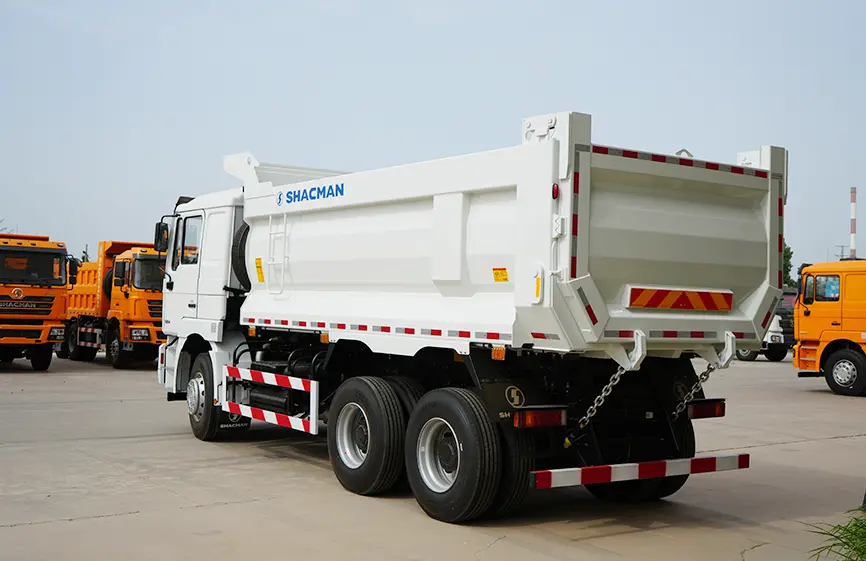

Reinforced cargo box design: The Shacman F2000 6X4 3254 Tipper Truck features a U-shaped bucket with a 16m³ capacity, a floor constructed of NM450 wear-resistant steel, and side panels equipped with anti-collision guardrails, making it ideal for transporting highly abrasive materials such as iron ore slag.
Intelligent Control System: The Shacman F2000 6X4 3254 Tipper Truck comes standard with ABS+ASR anti-skid systems. The hydraulic lift system supports remote control, allowing the driver to monitor the hydraulic oil temperature and lift angle in real time via the central control screen.
Economical maintenance: An extended 30,000km maintenance interval, an 800,000km B10 engine lifespan, and a 4.8 rear axle ratio ensure a balanced balance of power and fuel efficiency.
|
Truck Name
|
Shacman F2000 6X4 3254 Tipper Truck
|
|
Model
|
SX3255JM384
|
|
Cab
|

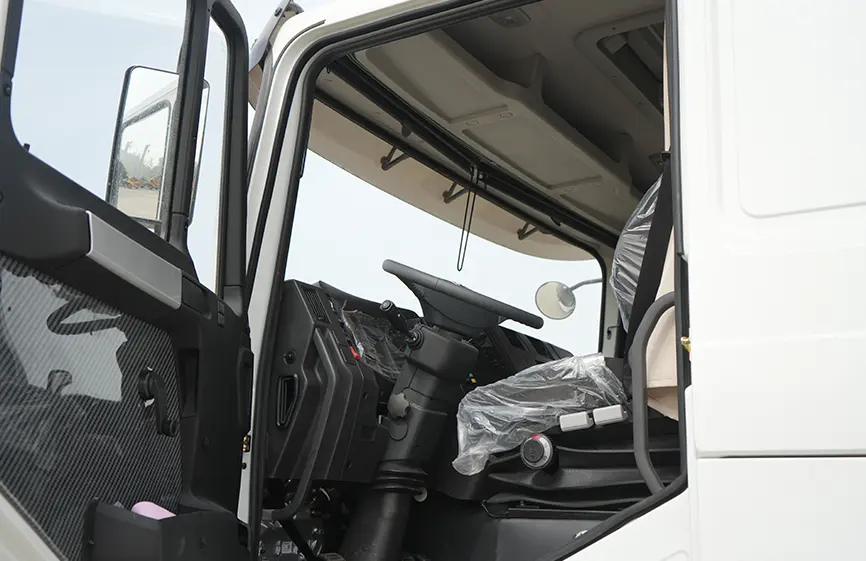

MAN F2000 Cab Single bedAir conditioner
|
|
Dimension(Lx W xH)(mm)
|
8275×2500×3450mm
|
|
Total mass(kg)
|
25000kg
|
|
Kerb mass(kg)
|
11200kg
|
|
Rated mass(kg)
|
13670kg
|
|
Payload(kg)
|
25000kg
|
|
Approach / departure angel
|
16/66
|
|
Front/rear suspension(mm)
|
1525/1600
|
|
Max.gradeability(％)
|
28
|
|
Enginebrand
|
Weichai Engine
|
|
Engine model
|
WP10.300E22，300hp
|
|
Emission Standard
|
E-II
|
|
Displacement(L)
|
9.726L
|
|
Driving type
|
6×4
|
|
Axle number
|
3
|
|
Wheel base(mm)
|
3775+1400mm
|
|
Clutch
|
φ430diaphragm spring
|
|
Gearbox
|
FAST 10JSD140，10 Forward&2Reverse，Manual
|
|
Front axle
|
9.5T MAN 9500kg
|
|
Rear axle
|
16TMAN 2×16000kg
|
|
Ratio
|
5.92
|
|
Steering
|
ZFtechnology Left-hand drive(LHD)
|
|
Type
|
12R22.5，10+1pc
|
|
Brake system
|
ABS(Four channel)
|
|
Tank capacity(L)
|
380L
|
|
Max. speed (km/h)
|
77km/h
|
|
Color
|
Optional
|
|
Cargo box size(mm)
|
5200×2300×1500mm(18m³) bottom8mm,side4mm
|
|
Lifting style
|
Middlelifting
|
