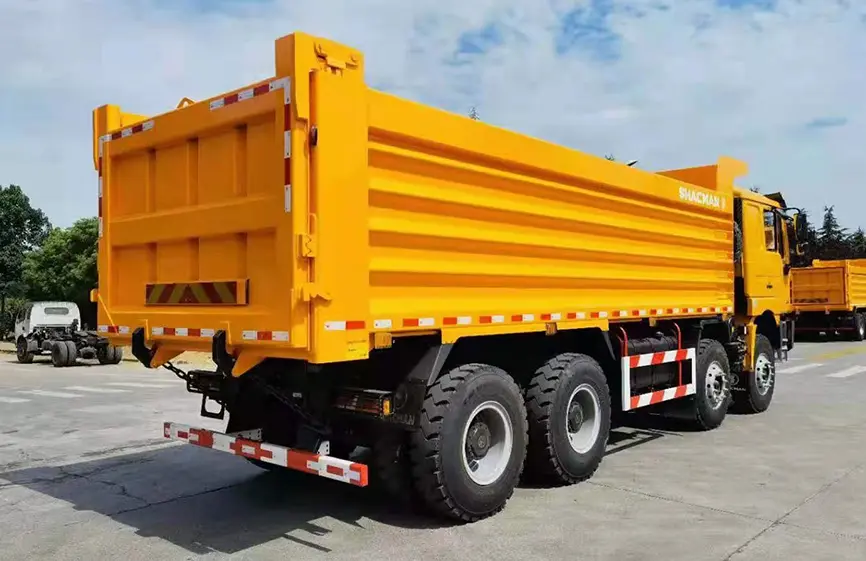

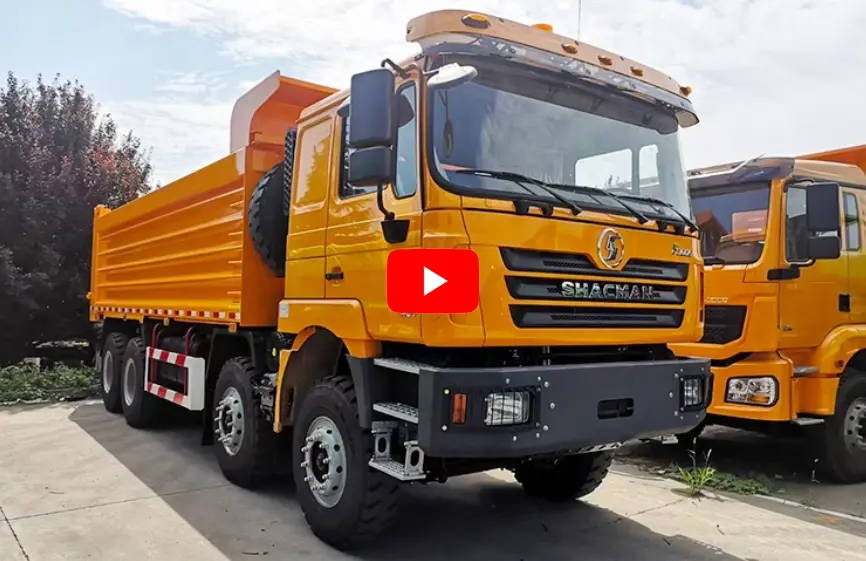

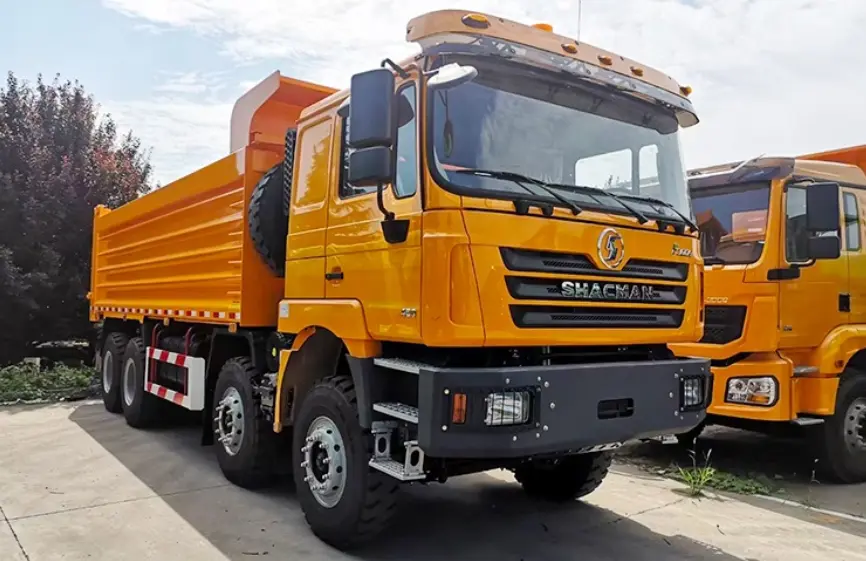

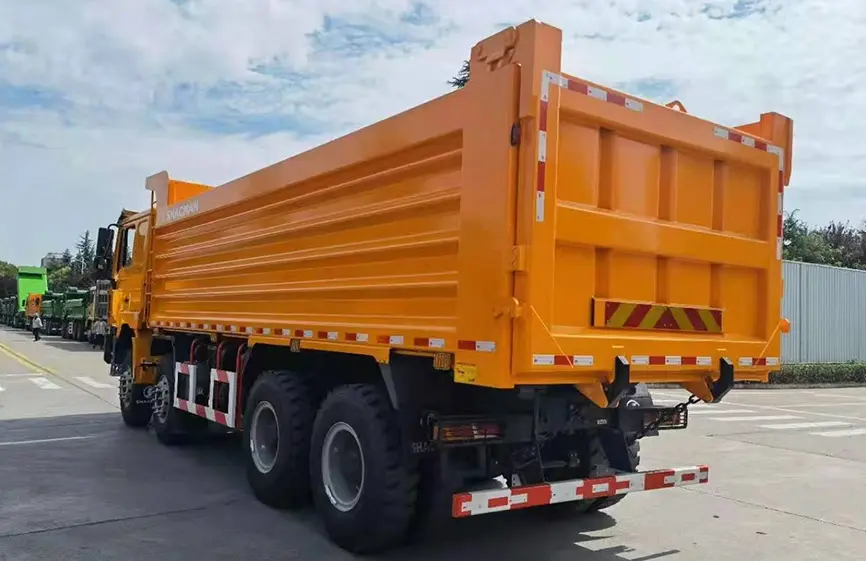

Shacman F3000 8×4 Dump Truck 430hp: The Dynamic Innovator of Heavy Duty Transportation
The Shacman F3000 8×4 Dump Truck 430hp sets the industry standard with its surging power and superb load-carrying capacity in the construction of giant mines and cross-sea bridges. Equipped with a 430hp high-performance engine, this model pushes the limits of traditional power and can realize efficient heavy-duty transportation even on steep slopes or in deep pits. Its Shacman F3000 8×4 Dump Truck 430hp all-wheel drive system combined with optimized torque distribution significantly improves the passability and stability under complex road conditions, making it a “hardcore partner” for transporting bulk materials such as gravel and steel.
Shacman F3000 8×4 Dump Truck 430hp adopts lightweight and high-strength frame and extended cargo box design, which improves the single load capacity by 15% compared with similar models, and together with the intelligent hydraulic self-unloading system, the unloading efficiency is improved by 30%. The Shacman F3000 8×4 Dump Truck 430hp cab is equipped with a human-machine interactive center control screen and air suspension seats, taking into account the convenience of operation and long-distance driving comfort. In addition, the vehicle is equipped with intelligent fuel-saving mode and low-emission technology, which protects power while practicing the concept of green transportation.
Facing the demand for global infrastructure upgrading, Shacman F3000 8×4 Dump Truck 430hp has become the first choice for engineering fleet to improve quality and efficiency by virtue of the triple advantages of “Power + Durability + Intelligence”. From desert mining area to tropical rainforest construction site, this Shacman F3000 8×4 Dump Truck 430hp heavy-duty tool is reshaping the efficiency boundary of heavy-duty dump truck with its hardcore strength.
| Truck Name | Shacman F3000 8×4 Dump Truck 430hp |
| Transport type | Highway transport |
| Logistics type | Ore / sand / gravel / coal |
| Distance(km) | ≤200 |
| Road type | Offroad/Paved roads |
| Drive | 8×4 |
| Max weight(t) | ≤90 |
| Max speed(km/h) | 80 |
| Loaded speed(km) | 45~60 |
| Vehicle model | SX3315DV366C |
| Engine | WP12.430E201 |
| Emission standard | Euro II |
| Displacement | 10.8L |
| Rated output | 306kw |
| Max.torque | 2010N·m |
| Transmission | 12JSD200T-B+QH50 |
| Clutch | 430 |
| Frame | 850×320(8+7+8) |
| Front axle | MAN 9.5T |
| Rear axle | 16T MAN double reduction 4.769 |
| Tire | 12.00R20 |
| Front Suspension | Multi leaf springs |
| Rear Suspension | Multi leaf springs |
| Fuel | Diesel |
| Capacity of the fuel tank | 400L |
| Battery | 180Ah |
| Dimensions(L×W×H) | 9300×2490×3250 |
| Trunk(LxWxH) | 7400×2300×1500 |
| Wheelbase | 1800+3575+1400 |
| Approach/Departure angle(°) | 23/44 |
| Max.gradeability(%) | 40 |
| Cab Type | MAN F3000 , mid-lengthened flat roof |
| Cab Equipments | ◆Rear window ◆Mechanical clerestory ◆Hydraulic suspension of cab ◆Hydraulic driver seat with seatbelts ◆One sleeping bed ◆Hydraulic reversal ◆Radio with MP3 player |
| Cab Optional | ●Air cushioned drivers seat ●Front lamp protection grid ●Oil bath air filter |
