Shacman H3000 6x4 371hp Dump Truck

Shacman H3000 6x4 371hp Dump Truck

Engine – WP10.340E32
Fuel tank volume – 380L
Series – H3000
Wheel formula – 6X4
Vehicle weight – 12270 kg
Volume of dump box – 18 cubic meters
Max speed(km/h) – 80
Description
Hardcore Transportation Expert: Shacman H3000 6x4 371hp Dump Truck

Designed specifically for high-intensity material transportation, the Shacman H3000 6×4 371hp Dump Truck stands out as a core piece of equipment in construction sites and sand and gravel transportation thanks to its stable performance and efficient load-carrying capacity. Equipped with a 371-horsepower high-efficiency engine, the Shacman H3000 6×4 371hp Dump Truck delivers smooth power output and outstanding fuel efficiency. Combined with an optimized transmission system, it maintains low failure rates and high operational efficiency even in complex working conditions.

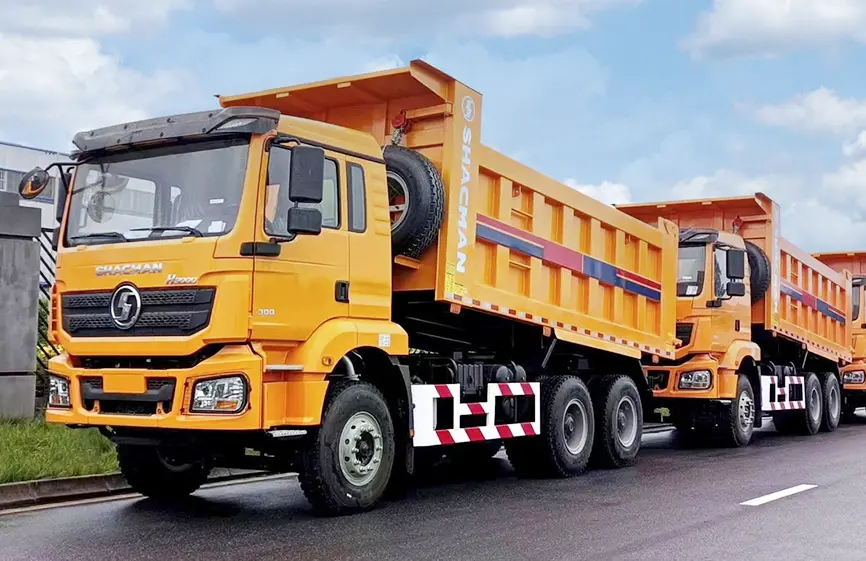

Shacman H3000 6×4 371hp Dump Truck-1
Shacman H3000 6x4 371hp Dump Truck

The Shacman H3000 6×4 371hp Dump Truck features a 6×4 drive layout and reinforced chassis structure, with a maximum payload of 28 tons, balancing maneuverability and load stability. The Shacman H3000 6×4 371hp Dump Truck has a cargo box volume of up to 18 cubic meters, paired with a rapid hydraulic lifting system, which increases single-trip loading and unloading efficiency by 15%, significantly reducing the operational cycle.

shacmantruks video-2
Characteristics
Shacman H3000 6×4 371hp Dump Truck Specifications
Model Shacman H3000 6×4 371hp Dump Truck
Engine Weichai WP10.340E32 engine with a rated power of 340 horsepower and a maximum torque of 1250 Nm.
Gearbox 12JS200T gearbox with 12 forward gears and 2 reverse gears.
Drive form 6×4
Wheel distance 1800 + 3200 + 1350mm
Tire specification 12.00R20
Front Suspension Semi-suspension with stabilizer bar.
Rear Suspension Pneumatic suspension with stabilizer bar.
Maximum total mass 25000 kg
Vehicle weight 12270 kg
Rated load capacity 12600 kg
Volume of dump box 18 cubic meters
Tipper container inclination 45 degrees
Lifting method of dump box hydraulic lift
Cab configuration H3000LX cab with 1 bed
Air Conditioning and Heating Systems
Electric windows and central locking
CD sound system and power sunroof
Adjustable driver’s seat and adjustable steering wheel
Fuel tank volume 380 liters
Maximum speed 80 km/h
Minimum ground clearance 260 mm
Overall length 8650mm
Overall width 2490 mm
Overall height 3450mm

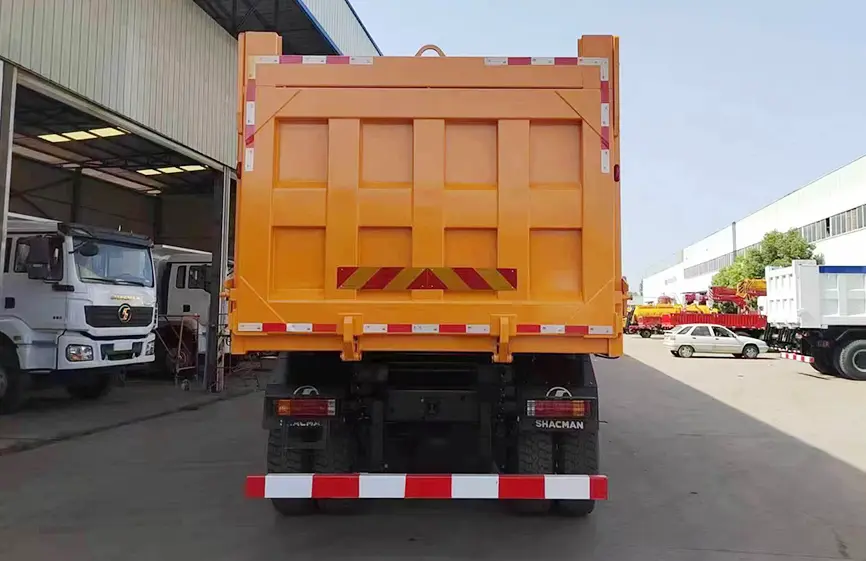

Shacman H3000 6×4 371hp Dump Truck-4

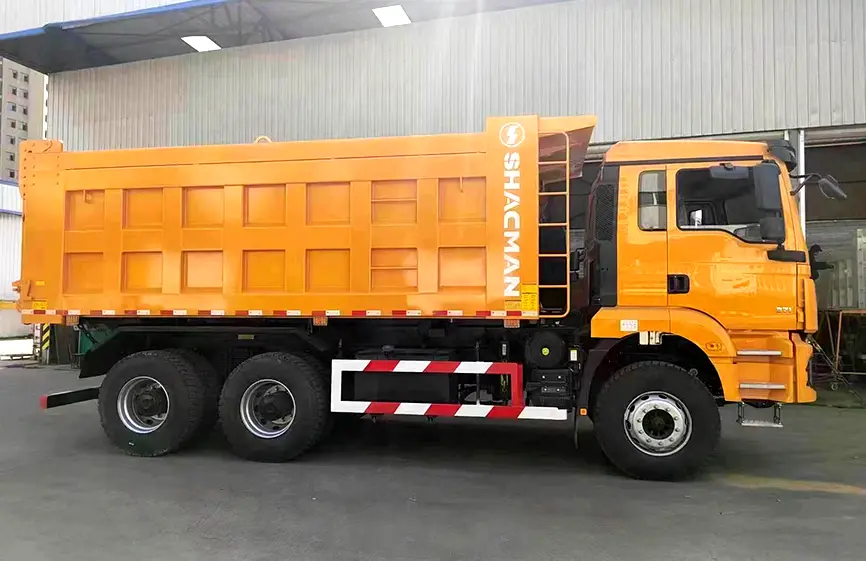

Shacman H3000 6×4 371hp Dump Truck-3

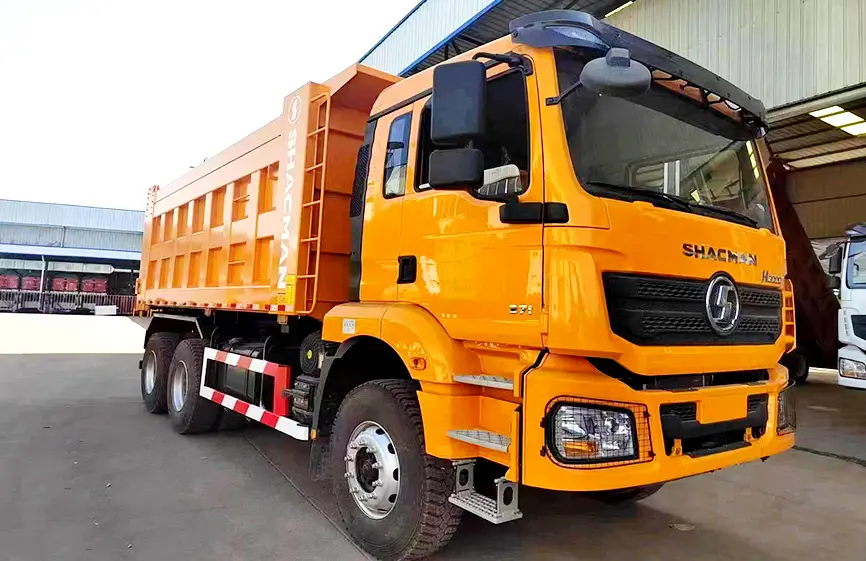

Shacman H3000 6×4 371hp Dump Truck-2
Shacman H3000 6×4 371hp Dump Truck-1

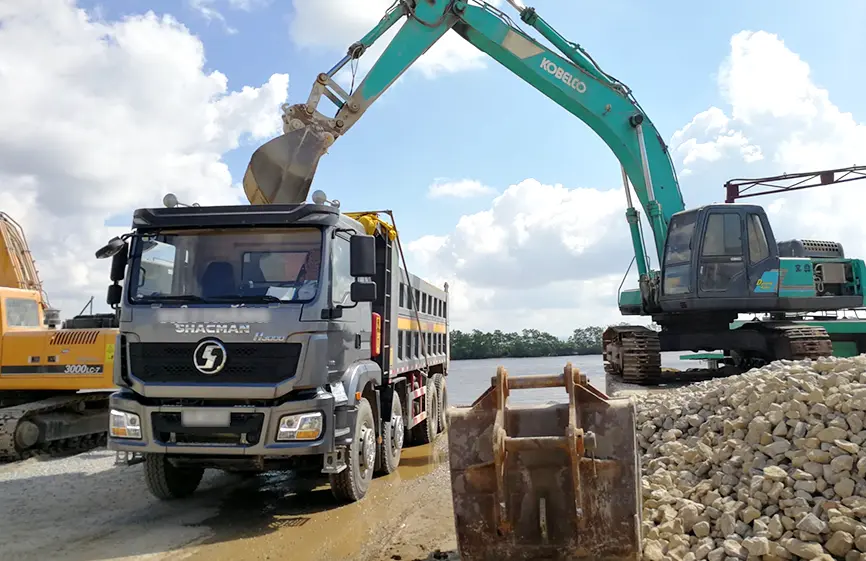

Shacman H3000 8×4 380hp Tipper Truck-5

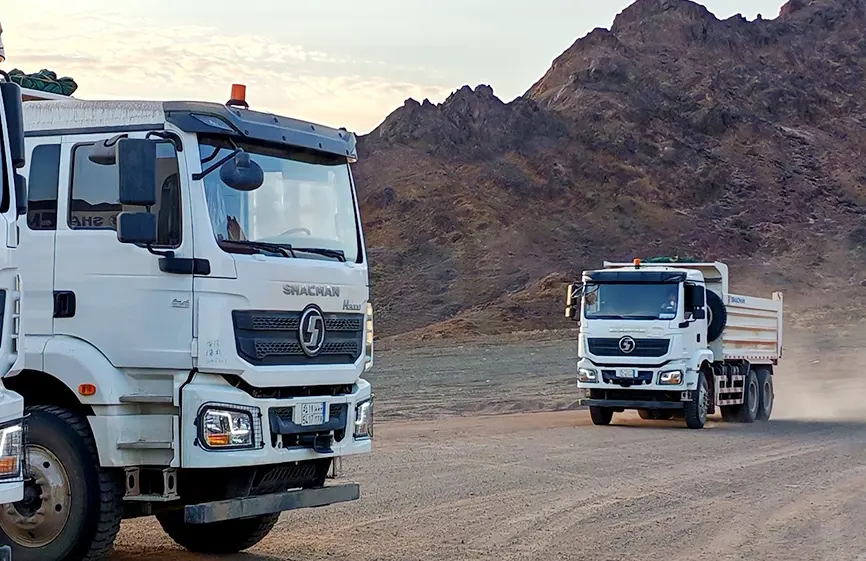

Shacman H3000 6×4 340hp Dump Truck-5
