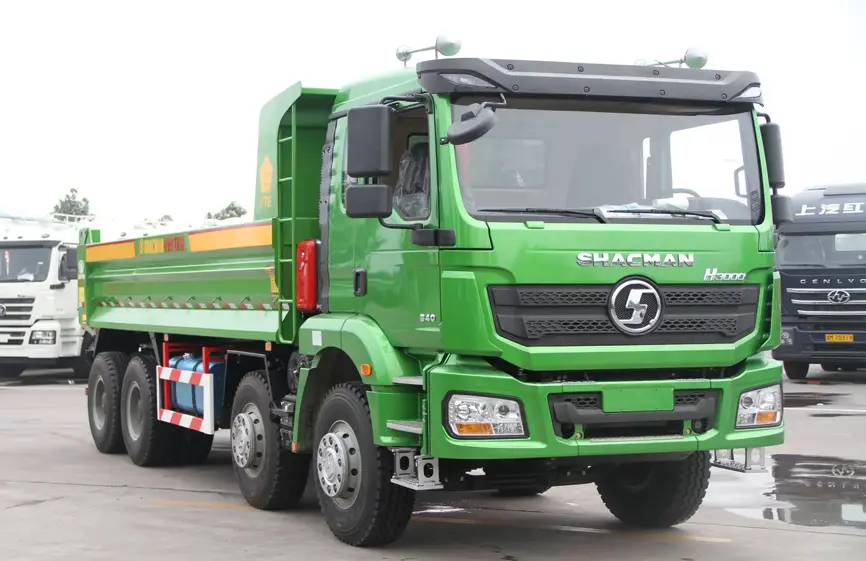

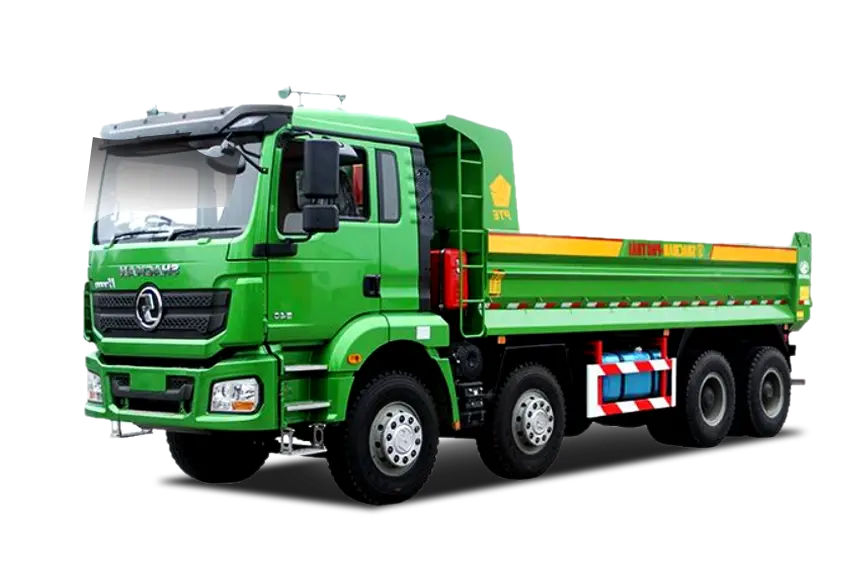

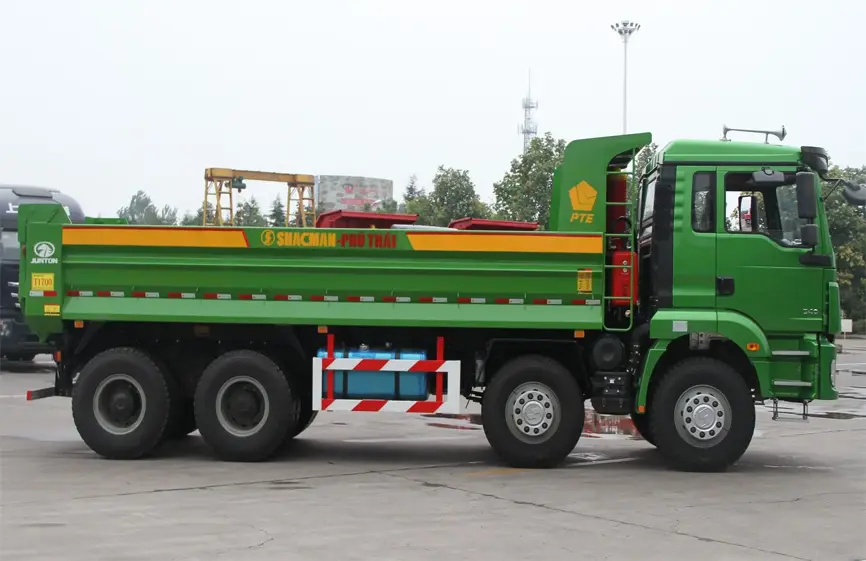

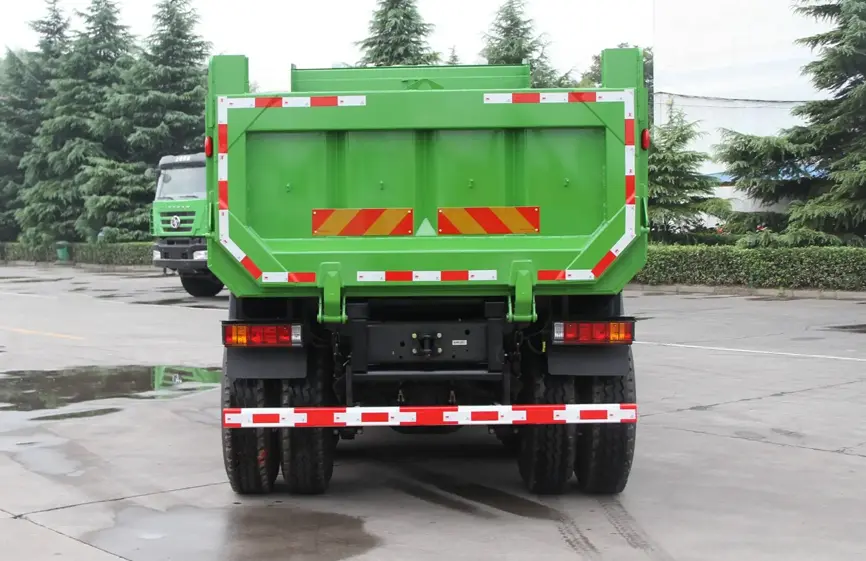

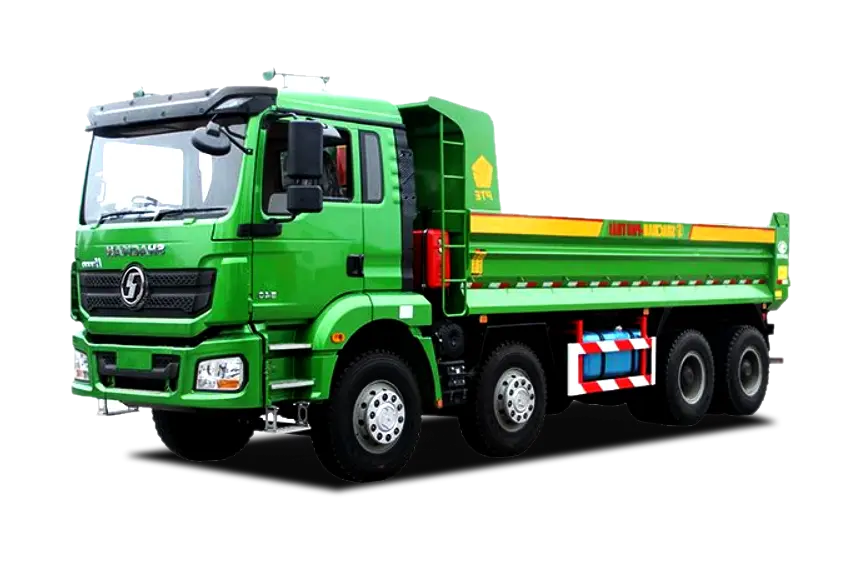

SHACMAN 8*4 Dump Truck H3000 is mainly comfortable, simple and lightweight.Drive easily and say no to fatigue. The newly developed telescopic shaft shifting mechanism and four- point air bag suspension improve the overall sound insulation, comfort, dust and rain resistance, allowing you to drive long distance without fatigue.
■ Cummins core power upgrade, FAST twin center shaft structure gearbox, HanDe high ratio single stage axle, vehicle power increased by 20%, Cummins ISM engine
■ High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new stabilizing technology
■ Military grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring
■ Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost
Driving is a stressful endeavor, which is why the F3000 is designed with an improved driver’s cab utilizing advanced technologies from the German truck giant, MAN. Spacious, comfortable and safe, the F3000 cab will bring a peace of mind to you on the job.
■ Frame type structure, local strengthening design, for maximum safety
■ Industry leading torsional stiffness and bending stiffness
■ Highly efficient cabin design; reducing drag and increasing air intake to the engine
■ Toughened laminated windshield glass, ensuring safe operation
■ Greater driver field of vision; allowing better driver awareness
■ Spacious interior and storage space, up to 620mm wide cushioned bed
| Market Segement: | Shacman F3000 8×4 Dump Truck |
| Driving Type | 8×4 |
| Cabin | One Sleeper/H3000 |
| Engine Brand | WEICHAI/Cummins |
| Engine Power | 340-430HP |
| Engine Emission | Euro II |
| Loading Capacity | 50-70 tons |
| Transmission | FAST |
| Lifting System | Front |
| Lifting Brand | Chinese/HYVA |
| Tires | 12.00R20 315/80R22.5 12.00R22.5 |
| Fuel | Diesel |
| Fuel Tank | 400L |
| Cargo box size | 7.6*2.3*1.5m/Customized |
| Dimensions (L x W x H) (mm) | 10.6*2.45*3.4m |
| Dumper Thichness | Bottom 8 Size 6mm/Customized |
