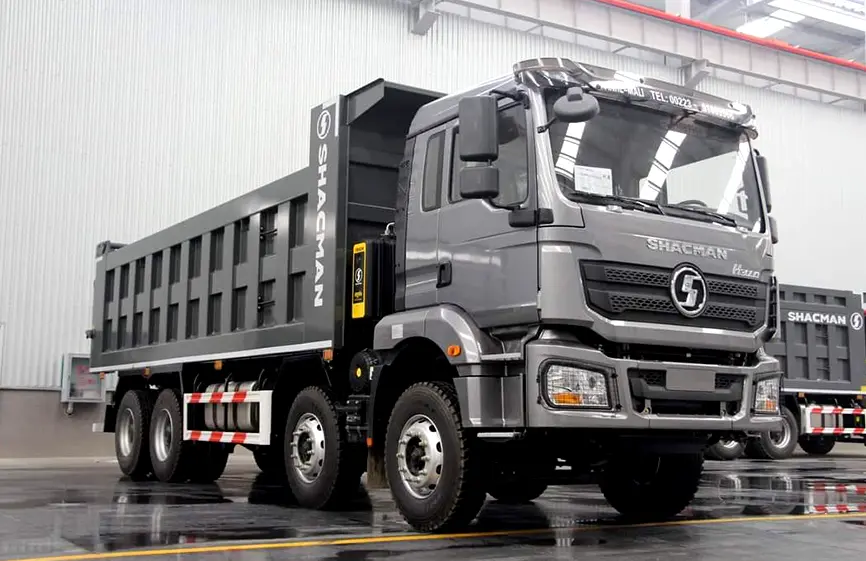

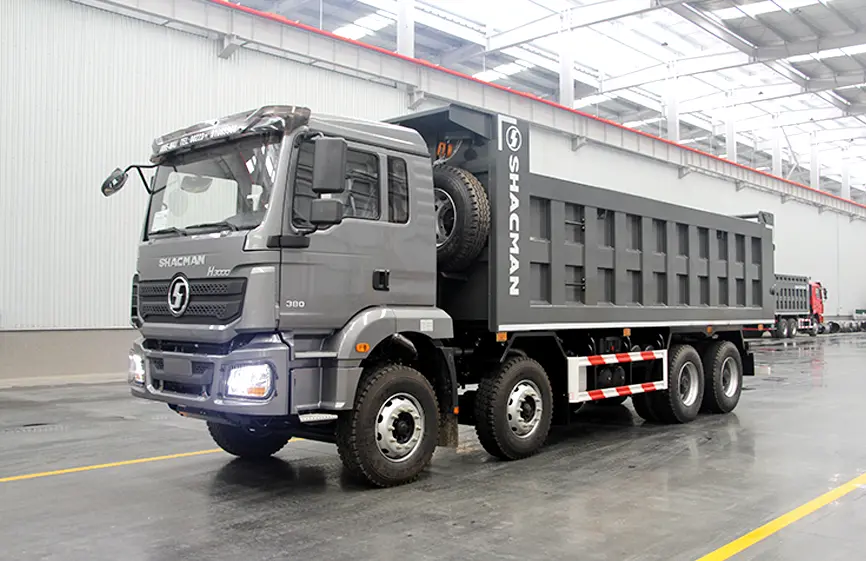

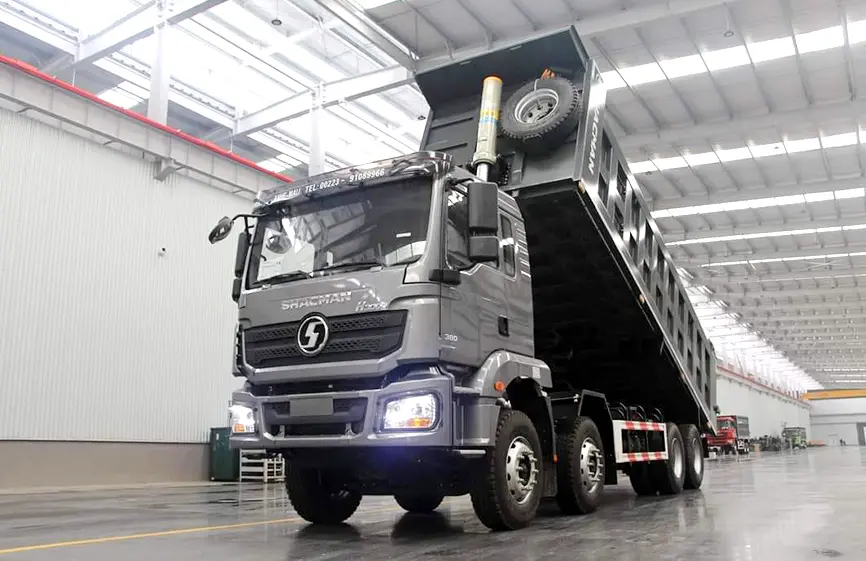

As a benchmark model in the engineering transportation sector, the Shacman H3000 8×4 380hp Tipper Truck stands out for its exceptional performance and reliable quality, making it the top choice for heavy-duty applications in mining, infrastructure, and other demanding environments. Equipped with a high-efficiency, fuel-efficient 380-horsepower engine and advanced powertrain technology, the Shacman H3000 8×4 380hp Tipper Truck delivers powerful performance while achieving a balance between low fuel consumption and low emissions, significantly reducing operational costs for users.
The Shacman H3000 8×4 380hp Tipper Truck features a high-strength lightweight chassis and 8×4 all-wheel drive design, with a maximum load capacity of 31 tons, easily handling complex road conditions and high-intensity operational demands.

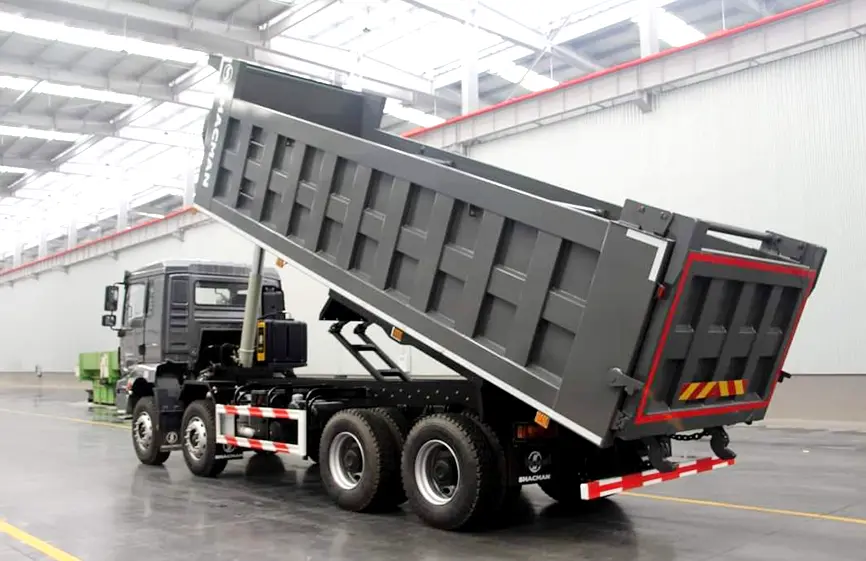

The Shacman H3000 8×4 380hp Tipper Truck’s hydraulic lifting system responds quickly, with an optimized dumping angle design for the cargo box, ensuring a 20% or more improvement in loading and unloading efficiency.
| Truck name | Shacman H3000 8×4 380hp Tipper Truck | |
| Transport type | Highway transport | |
| Logistics type | Ore / sand / gravel / coal | |
| Distance(km) | ≤200 | |
| Road type | Paved roads | |
| Drive | 8×4 | 8×4 |
| Max weight(t) | ≤70 | ≤70 |
| Max speed | 85 | 75 |
| Loaded speed(km) | 45~60 | 45~60 |
| Vehicle model | SX3315MR306 | SX3315MT326C |
| Engine | WP10.380E22 | ISM 385 |
| Emission standard | Euroǁ | Euroǁ |
| Displacement | 9.726L | 10.8L |
| Rated output | 247kw | 283kw |
| Max.torque | 1250N•m | 1835N•m |
| Transmission | 10JSD180+QH50 | 12JSD180T+QH50 |
| Clutch | 430 | 430 |
| Frame | 850×300(8+7) | 850×300(8+7) |
| Front axle | MAN 9.5T | MAN 9.5T |
| Rear axle | 16T MAN double reducion 5.262 | 16 MAN dote dudion 5.262 |
| Tire | 12.00R20 | 12.00R20 |
| Front Suspension | Multi leaf springs | Multi leaf springs |
| Rear Suspension | Multi leaf springs | Multi leaf springs |
| Fuel | Diesel | Diesel |
| Capacity of the fuel tank | 400L ( Aluminum shell ) | 400L ( Aluminum shell ) |
| Battery | 165Ah | 180Ah |
| Dimensions(L×W×H) | 8500x2490x3210 | 8700x2490x3210 |
| Wheelbase | 1800+2975+1400 | 1800+3175+1400 |
| Truck(L×W×H) | 6500x2300x1500 | 6800x2300x1500 |
| Approach/Departure angle(°) | 28/55 | 28/55 |
| Max.gradeability(%) | 25 | 25 |
