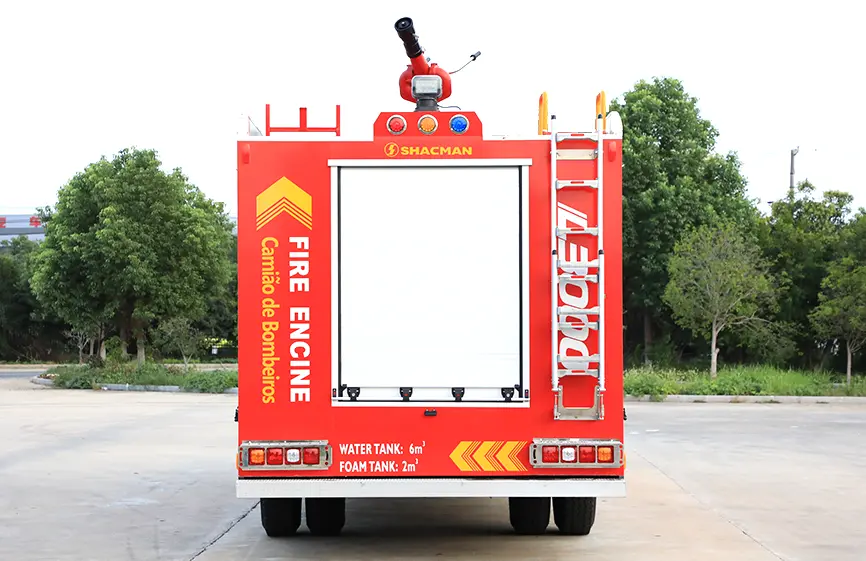

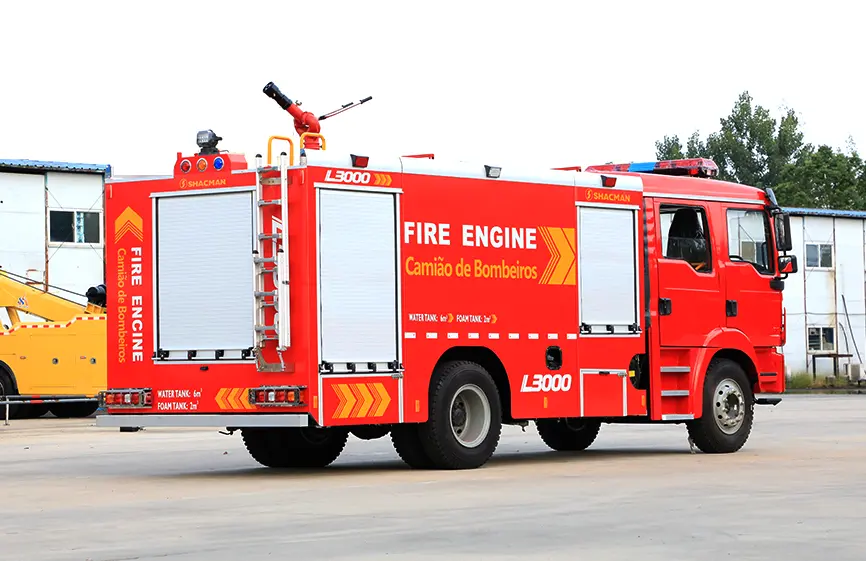

SHACMAN L3000 FIRE ENGINE TRUCK

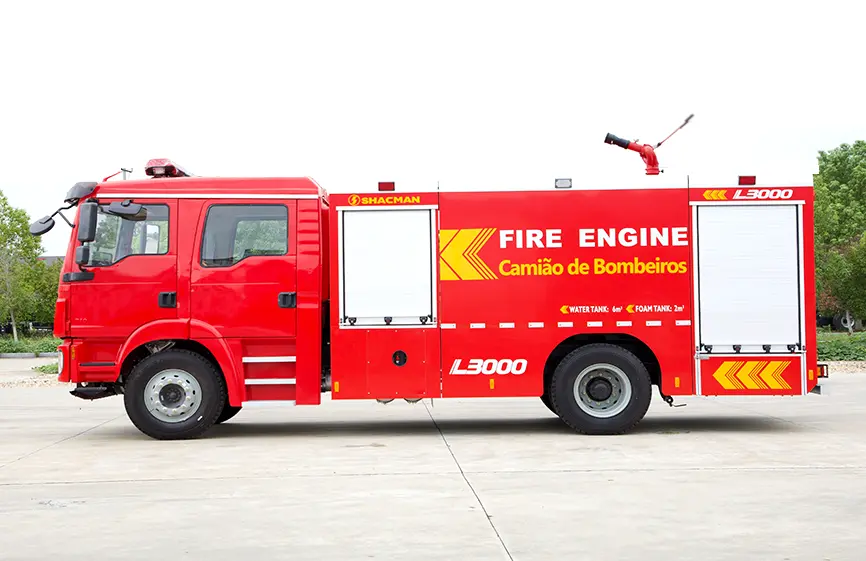

Carriage parameters	Distribution structure of carriages	The front part is the equipment box, the middle part is the water tank, and the rear part is the pump room.
	Material of carriage construction	The frame skeleton and skin are made of high quality Q235 carbon steel profiles.
	Car body making process	plates are treated with acid washing and phosphating to prevent corrosion, all parts and standard parts are treated with electroplating, electrophoresis and other surface treatment processes. All cutting parts are cut by laser cutting machine to ensure the precision of parts.
Fire extinguishing agent tank parameters	Tank capacity	6000KG，2000KG 6000KG water tank, 2000KG foam tank
	Tank material	Water tank and foam tank are made of 304 stainless steel
	Tank structure	The tank frame is welded, longitudinal and transverse wave prevention plates are set inside the tank, and a manhole is opened in the middle. The head, side plate and partition plate all have trapezoidal rib to increase strength, and the top plate is reinforced with steel triangular profile.
	detection mode	After 0.1 MPa hydrostatic pressure strength test, no obvious residual deformation appeared on both sides of the tank.
	Tank characteristics	1.The tank is equipped with a device to prevent the water pump from forming vortices which will affect the flow rate and a filter screen. 2. The tank is equipped with a stainless steel floating ball level indicator, which can display the capacity of the extinguishing agent in the tank through the level meter on the instrument panel; the bottom of the tank is equipped with a sewage outlet with a ball valve. 3.The tank has one DN76 overflow pipe and two DN76 inlet ports on both sides of the car, which is convenient for other vehicles to supply water and add liquid.
Fire pump parameters	brand	Shanghai Rongshen
	model	CB10/60 normal pressure fire pump
	rate of flow	60L/s
	pressure	1.0MPa
Vacuum pump parameters	Working form	piston
	Water diversion time	≤35s
	Water absorption depth	≥7m
	maximum working pressure	≥85Kpa
Pipeline system parameter	Water suction line	DN150，The water pump has a DN150 inlet.
	Water absorption method	Natural water source, liquid tank, fire water storage tank.
	Water absorption method	One DN100 outlet fire cannon pipe is set on the roof, and one DN80 and one DN65 outlet are set on both sides of the pump room.
	Water supply line	A DN65 pump is set in the pump room to inject water into the tank. There are 2 DN65 injection pipes on both sides of the car, which can inject water into the tank.
	Empty the remaining pipes	In order to protect the pump and each ball valve, a discharge pipe is installed in the pipeline, and ball valves are respectively equipped.
	Cooling water lines	Set up a circulating water line to cool the force collector for a long time.
Fire cannon parameters	brand	WESTE
	model	fire cannon
	rate of flow	48L/S
	working pressure	1.0MPa
	Work radiu	Water ≥ 70m, foam ≥ 65m
	installation site	Top of the tank.
Fire pump power unit	Form of forceps	Full power sandwich actuator.
	cooling-down method	Forced water cooling.
	Lubrication method	Splashing oil lubrication.
	control mode	Cab control.
electrical system	lamps and lanterns	1.The cab is equipped with a long row of police lights, and three warning flashing lights are set on both sides of the car. 2 Fire scene lighting lamps are set on the roof of the car, and lighting combination lamps are set on both sides of the car. 3.LED lighting is set in the member room, equipment box and pump room 4.Side profile lights are set, and turn signals are set at the rear.
	siren	100W
	control method	1The police light, alarm and flashing light are controlled in the cab. 2.The lighting of the equipment box and pump room is controlled in the pump room
Equipment room parameters	material quality	The equipment rack is made of aluminum alloy profile, and the interior panel is oxidized aluminum plate.
	technology	The equipment room adopts a lockable roller shutter door, the handle and lock pin are strong and durable, and do not deform. The rivets are fixed in the sliding tracks on both sides, and the sealing performance has been tested by water to ensure no leakage.
	design discipline	1.Design materials integration according to combat formation and combat deployment. 2.Various equipment brackets are designed according to ergonomic principles. 3.No climbing tools are required, and the principle of simple and practical access to any equipment in the box. 4.Place equipment according to the logical relationship and frequency of use. 5. Take any equipment within 1-2 movements from the ground or on the pedal.

Fire fighting equipment list

order number	name	unit	quantity	remarks
1	fire hose	tray	10	6 DN65,4 DN80
2	Water supply hose	meter	1	Type 13, DN65 inward buckle
3	Straight water gun	piece	1
4	Fountain water gun	piece	1
5	dry-chemical fire extinguisher	piece	1	ABC dry powder fire extinguisher
6	Collector	piece	1
7	Distribution pipeline	piece	1
8	Water pipe wrench	piece	2
9	rubber hammer	piece	1
10	Fire hydrant wrench on the ground	piece	1
11	Underground fire hydrant wrench	piece	1
12	The Guard Bridge	piece	2
13	Water belt wrap	piece	4
14	Water hose hooks	piece	4
15	a fireman’s axe	piece	1
16	Fire suction pipe	meter	8
17	Water intake pipe filter	piece	1	One is provided for every 8 m suction pipe
18	Oblique interface	piece	2	Inner diameter Φ65 to Φ80
19	shovel	piece	1
20	T-shaped pick	piece	1
21	Same type interface	piece	1	DN100
22	Foam pipette	piece	1
23	Foam gun	piece	1
