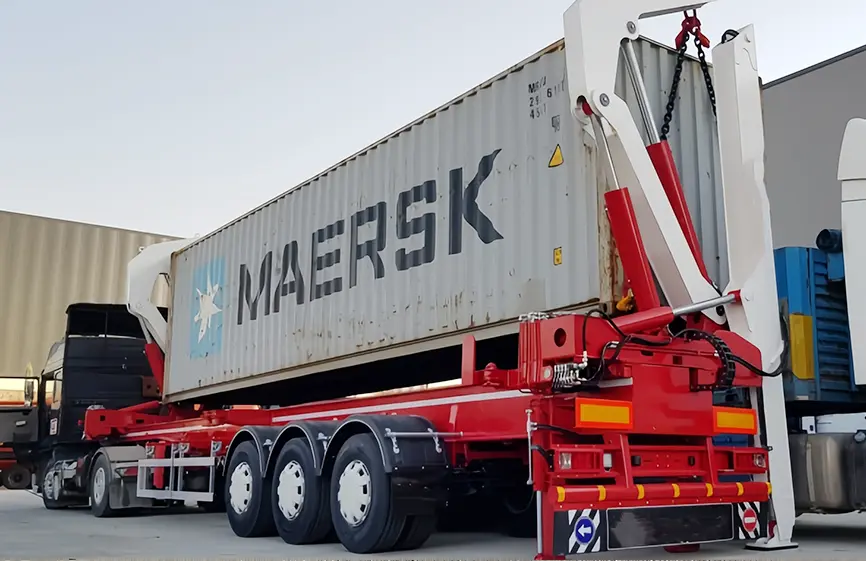

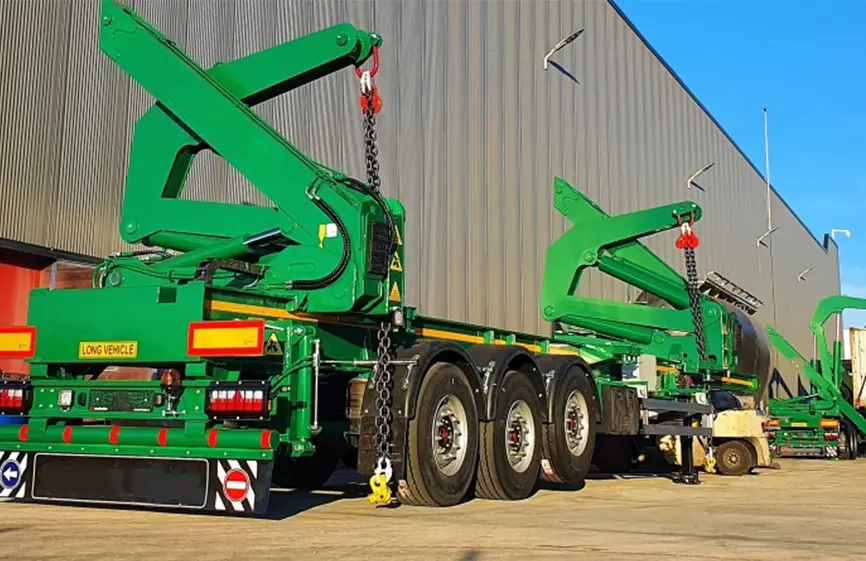

Shacman Low Loader Semi Trailers are available in various capacities. For example: 2-axle, 3-axle, or 4-axle configurations. Dual tyres can also be used. Shacman Low Loader Semi Trailers are equipped with a hydraulic telescoping mechanism. In terms of transport capacity, they can carry 1×40-foot, 1×30-foot, or 2×20-foot containers. Its maximum load capacity is 45 tonnes. Shacman Low Loader Semi-Trailers are the most common trailers for container cargo.
• BPW, FUWA, or certified Chinese axles
• Self-steering axle
• Side-loading container trailers, self-loading semi-trailers,
• Single or dual tyres
• High-quality steel construction
• Air or mechanical suspension
• EBS braking system
• Steel or aluminium wheels
Shacman Low Loader Semi-Trailers can provide different specifications of container side-loading semi-trailers or side cranes from China to the world according to customer needs.
| Specification | |
| Product Type | Shacman Low loader Semi Trailers |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |

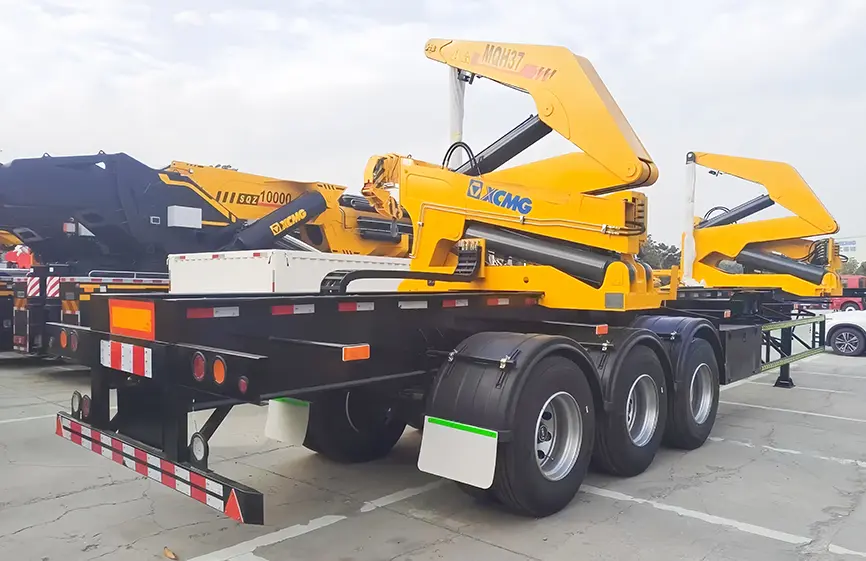

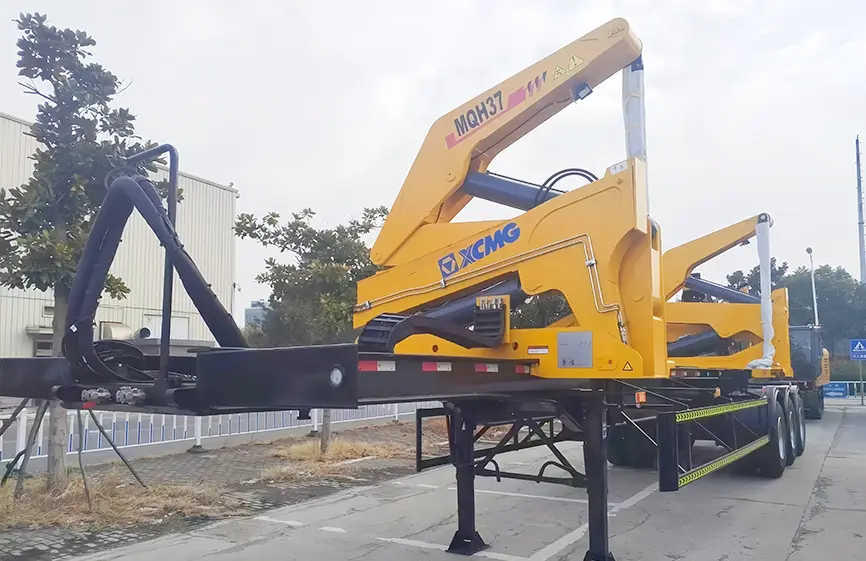

| Crane type | Complete vehicle model: XCMG MQH37A Maximum lifting weight:37000kg Maximum span of legs:3200mm Maximum operating range:4000mm Maximum outer width height:2490mm Maximum outer width:2500mm Maximum profile thickness:1020mm Maximum pressure of hydraulic system:28MPa |
| Carrying capacity | 45tons |
| Semi Trailer Axle Specification | |
| Number of Axles | 3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Suspensions : Air Suspension, Front Axle Liftable (Optional) |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 12R22.5 (Optional any compatible size) |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, |
| Other Compatible Tire Sizes | 12.00R20 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
