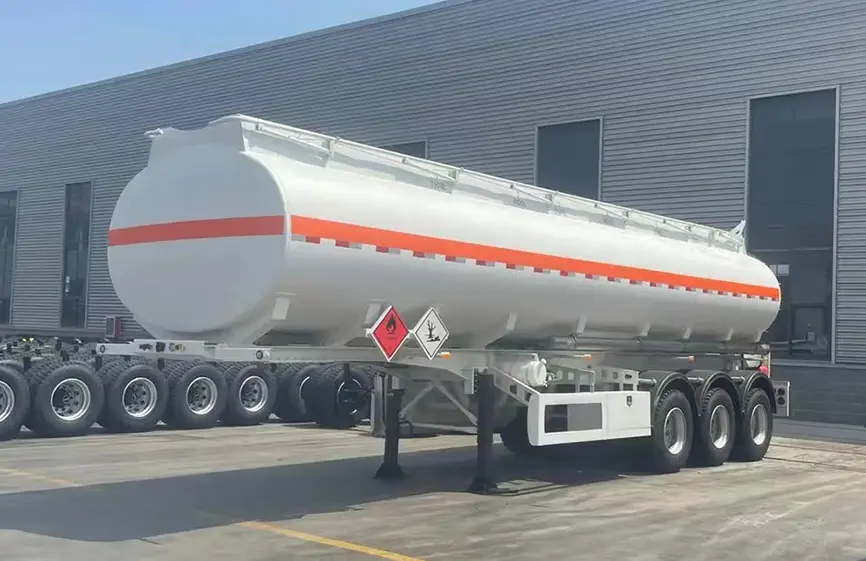

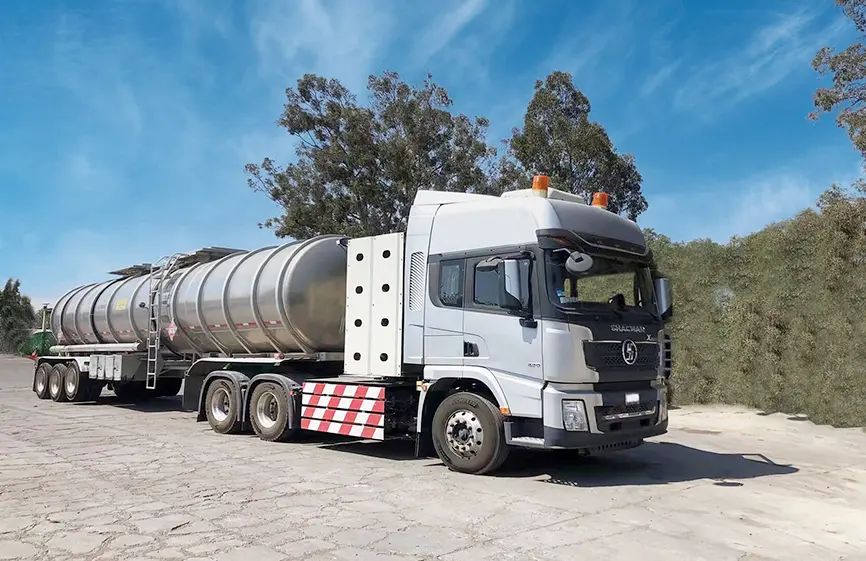

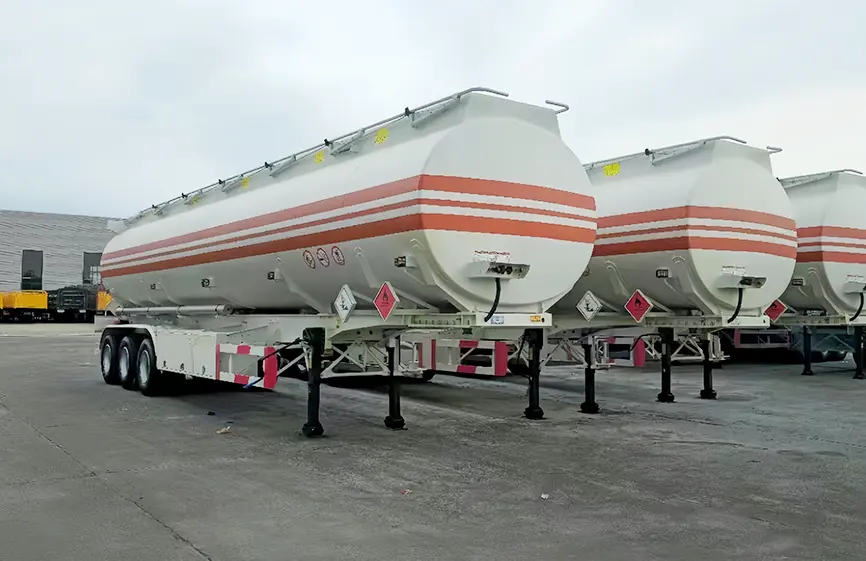

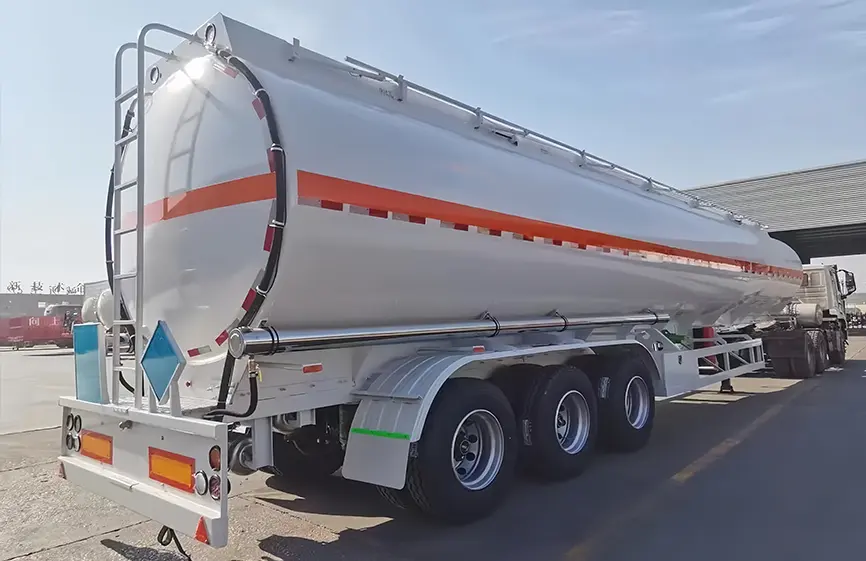

Shacman Oil Tank Semi Trailer tanks using automatic longitudinal/ring to the welding seam is firm and level off, can be independent warehouse storage, shipment different abrasive materials, unloeding speed, low residual rate, safety performance is high, easy to operate.Shacman Oil Tank Semi Trailer Shape is round or M tanks, material can choose carbon steel, stainless steel, aluminum alloy.
Shacman Oil Tank Semi Trailer, Inside the bag or fluidized bed or MiZiXing fluidized bed. Good performance of simple structure, convenient maintenance, vulcani zation.
Can choose air compressor or direct drive transmission shaft (optional belt drive and motor drive).Help clients get more, cost less.
Feature:
1. Loading rate >98% fully filling
2. Residual rate <0.2%
3. Delivery height >25m suitable most silo
4. Faster unloading >1.5ton/min save fuel
| Shacman Oil Tank Semi Trailer Specification | |
| Product Type | OIL TANKER SEMI-TRAILER |
| Main Chassis Material | Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 140/14-16 mm and main beam is 5-6 mm , Octopus System for Chassis for tough African road conditions |
| Tank body | Volume：23,000-120,000 cbm；Capacity28-150 tons；Tank body material 5.5mm， carbon steel/aluminum alloy/stainless steel End plate 6mm carbon steel Manhole cover diameter 500 mm 2 pieces, material aluminium |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3-4-5 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Suspensions : Air Suspension, Front Axle Liftable (Optional) |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 12R22.5 (Optional any compatible size) |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, |
| Other Compatible Tire Sizes | 12.00R20 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
