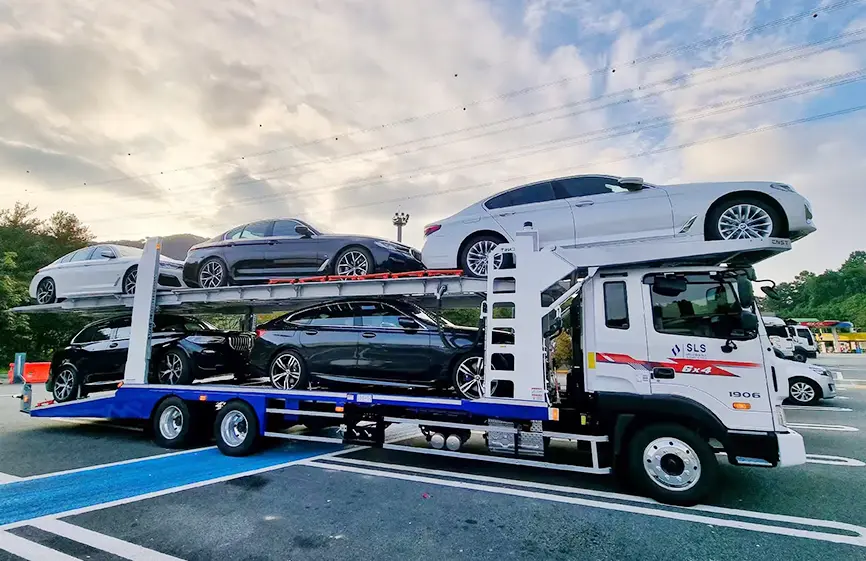

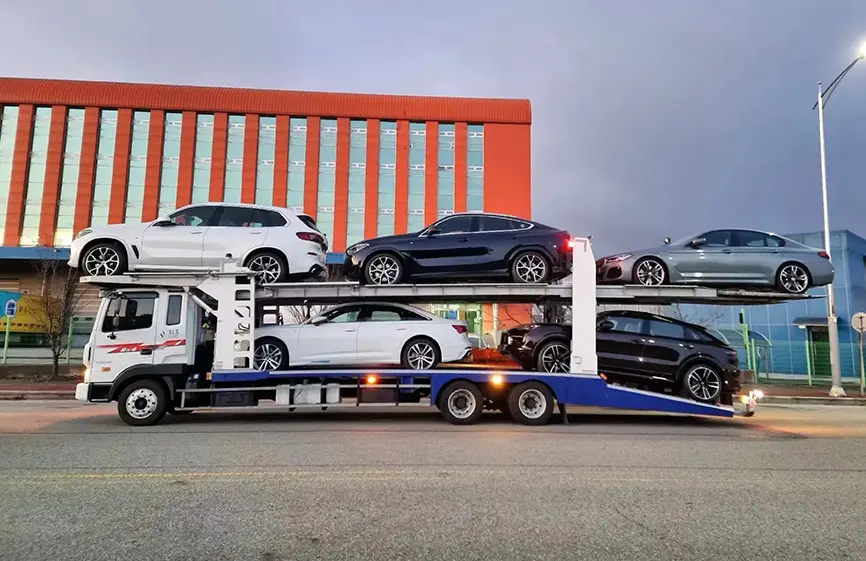

The Shacman Semi Trailer for Transporting Cars is a vehicle specifically designed for transporting passenger vehicles, featuring a unique structure and advantages.

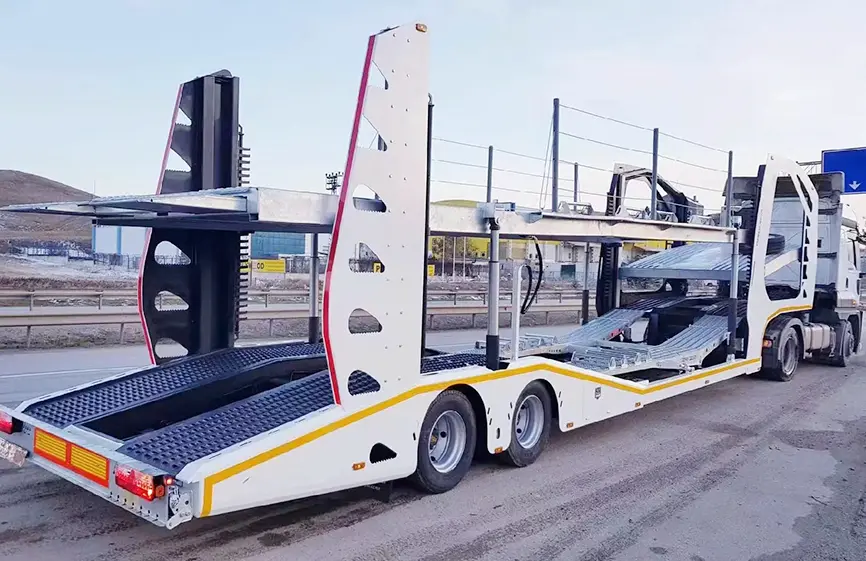

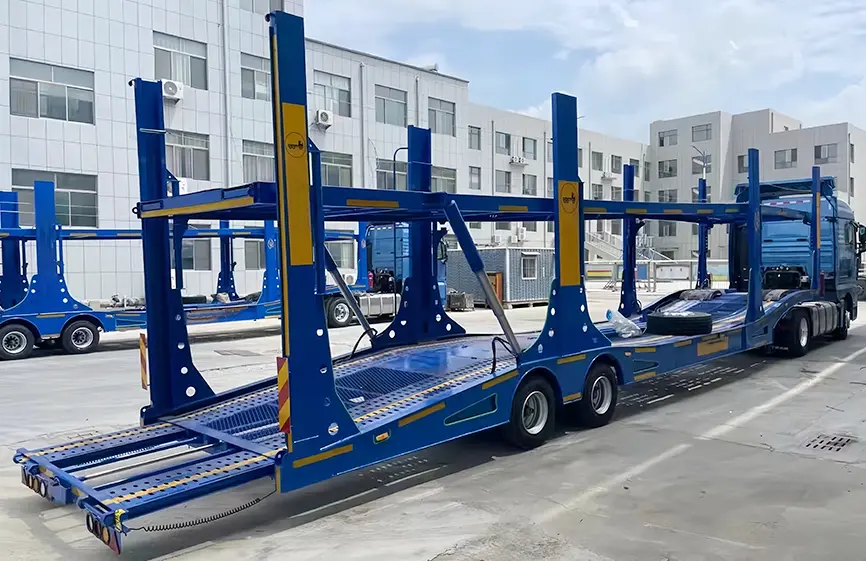

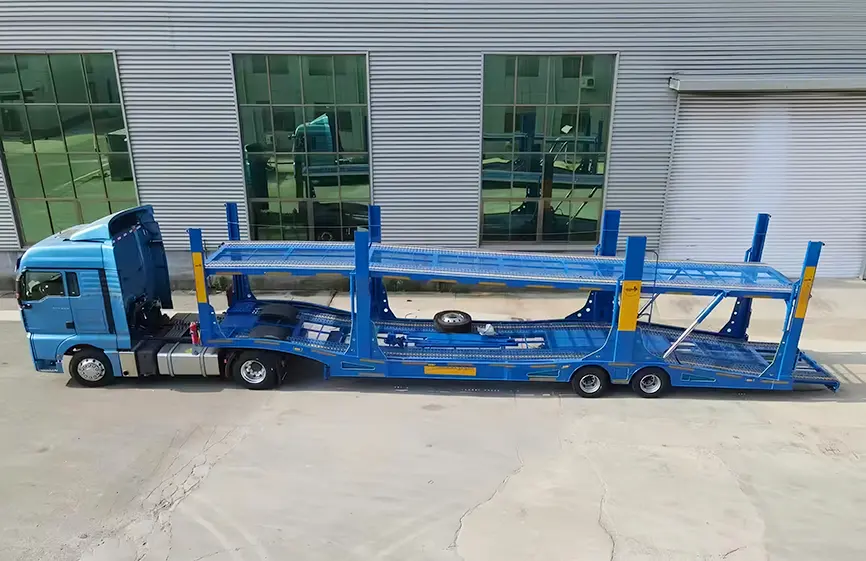

The design and construction of the Shacman Semi Trailer for Transporting Cars are primarily focused on efficiency, safety, and lightweight construction. Its chassis employs a beam and frame structure, which is not only lightweight but also has a low weight, typically featuring two loading platforms, one above the other. These platforms are raised and lowered using hydraulic cylinders, with a steel wire rope pulley system ensuring smooth operation. The height and position of the platforms are adjustable to accommodate the loading requirements of different vehicle models.
The overall structure of the Shacman Semi Trailer for Transporting Cars adopts a truss form, which eliminates the need for longitudinal beams, further reducing self-weight. Compared to similar models, its self-weight is approximately 30% lighter. Additionally, the Shacman Semi Trailer for Transporting Cars features a leaf spring suspension system, providing excellent ride comfort. In terms of operation, the design of the car transport semi-trailer prioritises safety and convenience. All loading and unloading platform lifting controls are reliable, and the driver can clearly observe the operation process, ensuring accuracy.
Additionally, our 6-10 position Shacman Semi Trailer for Transporting Cars is OTTC certified and exported to Central Asia, Russia, and other countries. We provide comprehensive after-sales service and technical guidance.
| Product Types | Shacman Semi Trailer For Transporting Cars | |
| Main parameters | Dimensions (mm) | 17000mmx2550mmx4000mm |
| Basic configuration | Main beam | Upper wing plate 10#, lower wing plate 12#, neutral plate 5+4# |
| Side beam | Three-in-one I-beam | |
| Structure | Integrated European-style frame structure | |
| Towing pin | 50# | |
| Legs | Factory configuration list | |
| Suspension | Hechang brand air suspension | |
| Leaf spring | None | |
| Axle | Factory-fitted 2 x 10 tonnes 2 | |
| Steel rim | Factory-fitted model 12 | |
| Tyre | Linglong 245/70R22.5 vacuum | |
| Brake system | Kangjian valve | |
| Base plate | 2.5 mm perforated plate | |
| Rear | 1.5-metre pull-out ladder between upper and lower tiers + climbing ladder | |
| Mudguard | None | |
| Other | Complete set of electrical circuits, hydraulic oil tank and operating valve system for the entire vehicle | |
| Other sections | Includes vehicle tools, fire extinguisher, wheel chocks, and straps. | |
