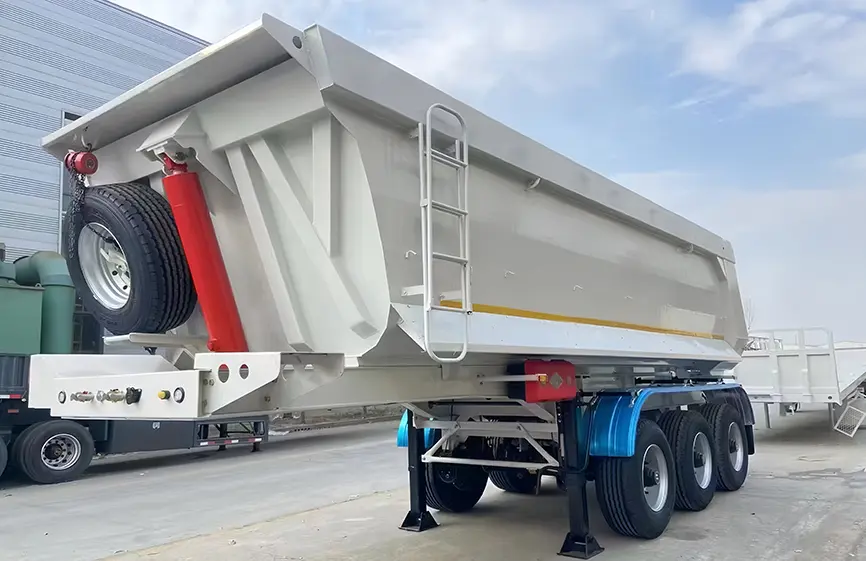

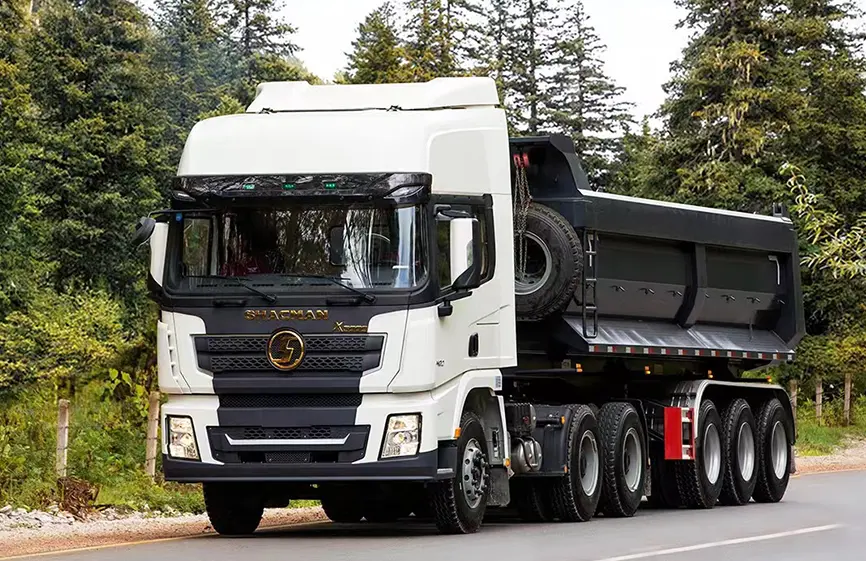

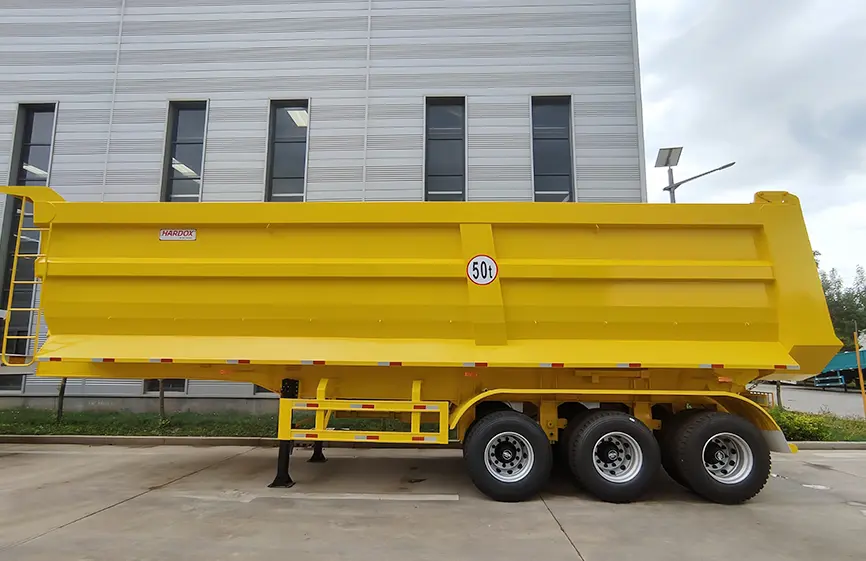

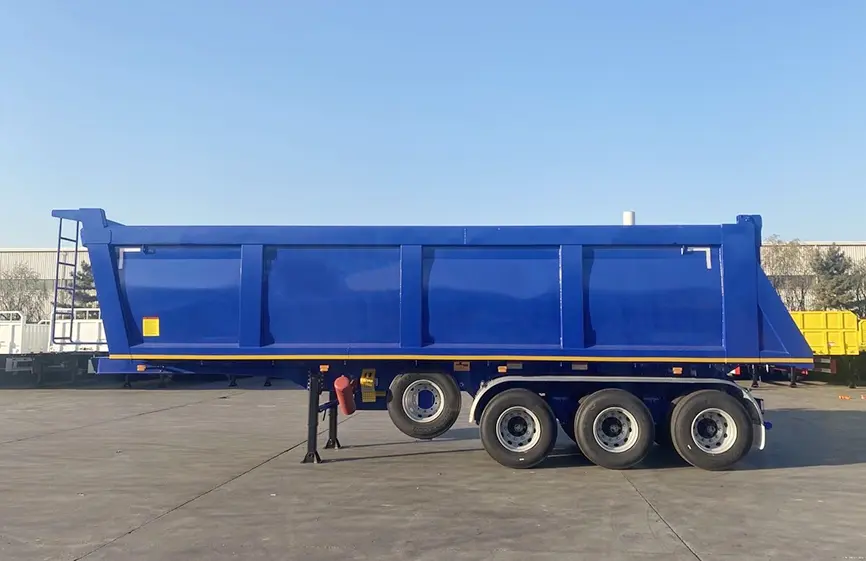

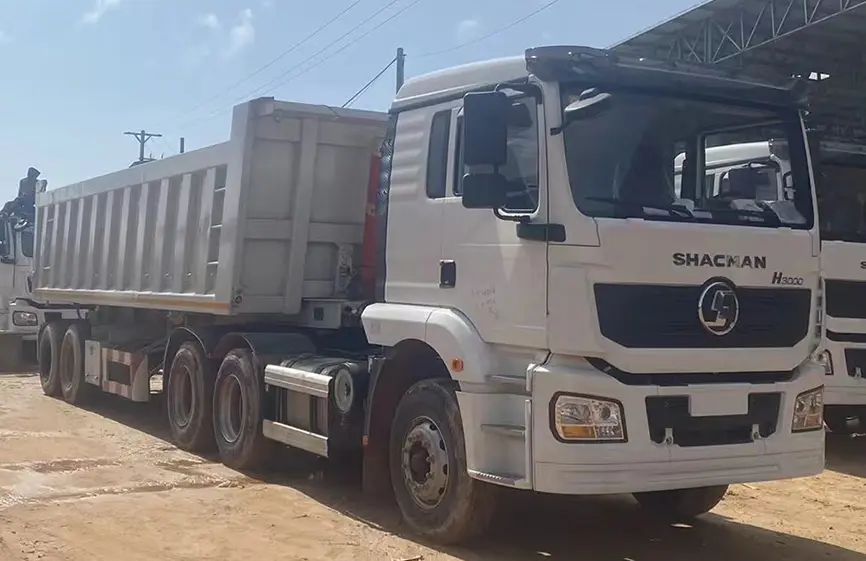

Shacman Tipper Semi-Trailer is a type of heavy-duty vehicle designed for efficient transportation and dumping of bulk materials such as sand, gravel, coal, and other construction materials. It consists of a tractor unit and a detachable dump body, which allows for easy loading and unloading operations.
The Shacman Tipper Semi-Trailer features a robust and durable construction, ensuring long-lasting performance and reliability in various working conditions. The trailer is equipped with high-quality components, including a sturdy frame, strong axles, and reliable suspension systems, which contribute to its excellent load-carrying capacity and stability on the road.
One of the key advantages of the Shacman Tipper Semi-Trailer is its efficient dumping mechanism. The hydraulic lifting system enables quick and effortless dumping of materials, reducing labor costs and increasing productivity. The dump body is designed with an ergonomic shape that allows for optimal material distribution and reduced spillage during dumping operations.
In addition, the Shacman Tipper Semi-Trailer is equipped with advanced safety features, such as air brakes, ABS (Anti-lock Braking System), and a reverse alarm system, which help prevent accidents and ensure the safety of both the driver and other road users.
| Shacman Tipper Semi-Trailer Main Structure | |
| Product Type | Tipper Semi-Trailer |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |
| Body Material | Body is made of Q345/NM450 materials for maximum abrasiveness and impact resistance. (Optional special Hardox® 450 and Hardox® 500 Tuf steel for light weight design) |
| Tail Gate | Mechanical open, lengthwise, top-hinged (Optional hydraulic) |
| Volume | 24 m3 (Optional design with any volume) |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3-4-5-6 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Rim Dimensions | 22.5X11.75 steel rims with standard tire dimension |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, totally 12 units (for 24m3) |
| Other Compatible Tire Sizes | 12 R 22.5 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
