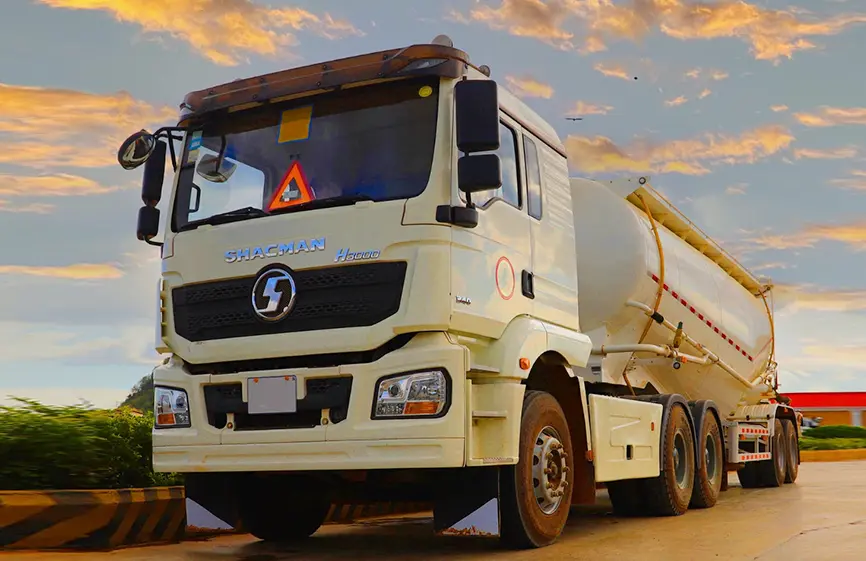

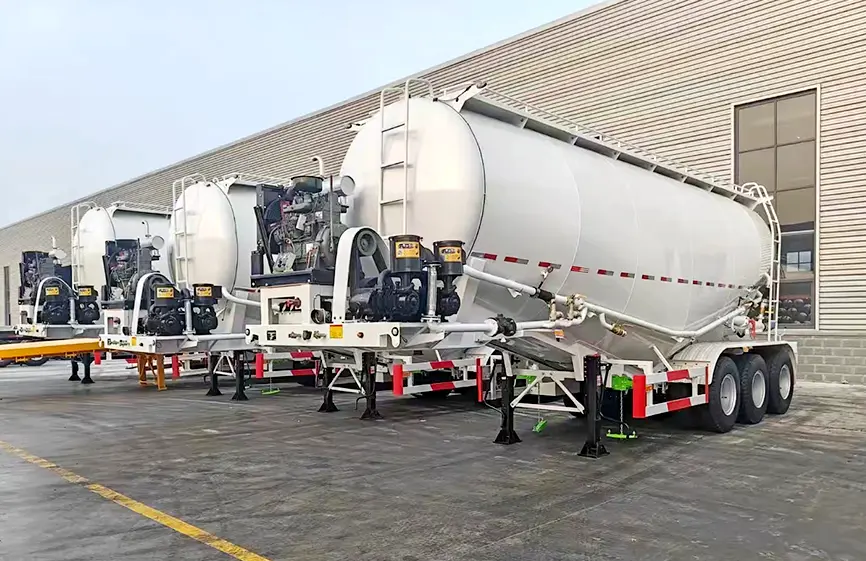

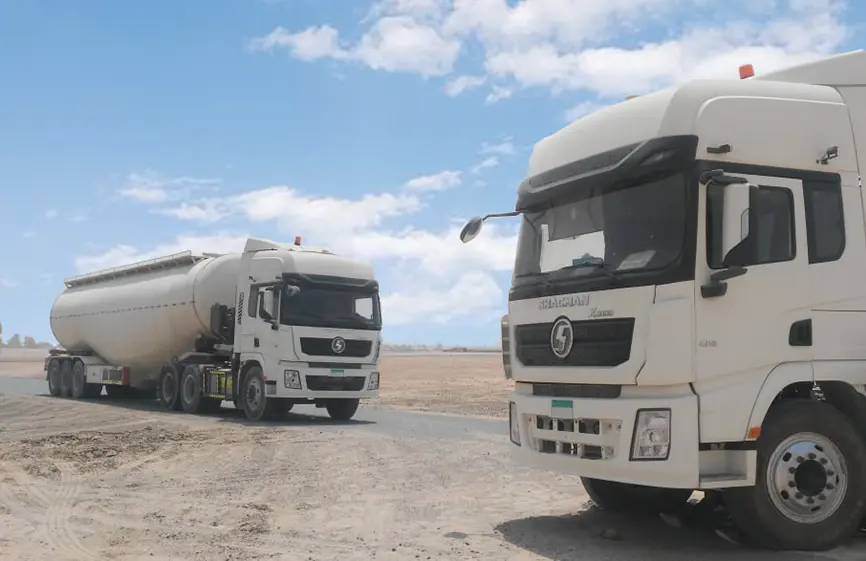

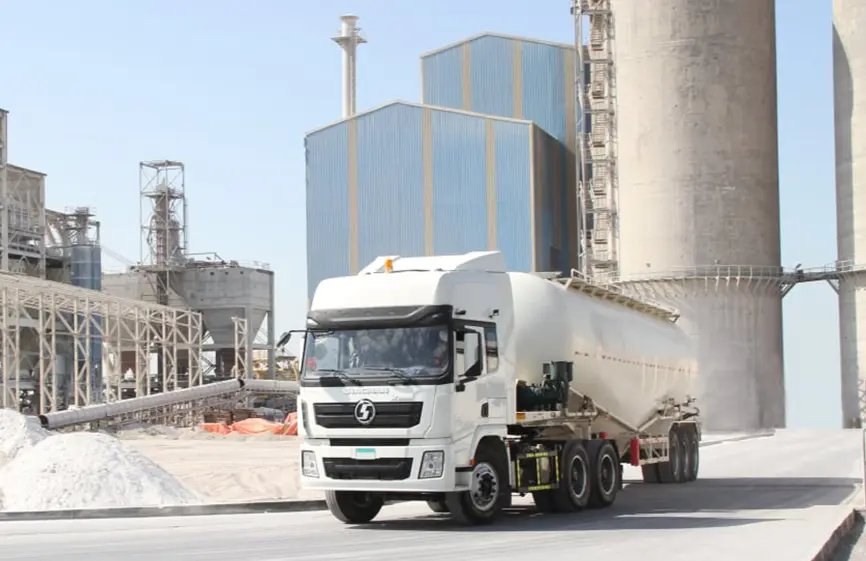

The Shacman V-Type Cement Bulker Semi Trailer from Emirsan Trailer sets a high standard in bulk cement transportation. Designed for transporting cement, lime powder, and fly ash, this trailer ensures optimal performance and reliability.
Design and Features: The V-shaped design facilitates efficient unloading through gravitational flow, reducing residue. Made from high-strength steel, it guarantees durability and a longer service life.
Capacity and Performance: With a capacity ranging from 35 to 60 tons, Shacman V-Type Cement Bulker Semi Trailer includes advanced pneumatic discharge systems, ensuring a high unloading rate of up to 1.5 tons per minute.

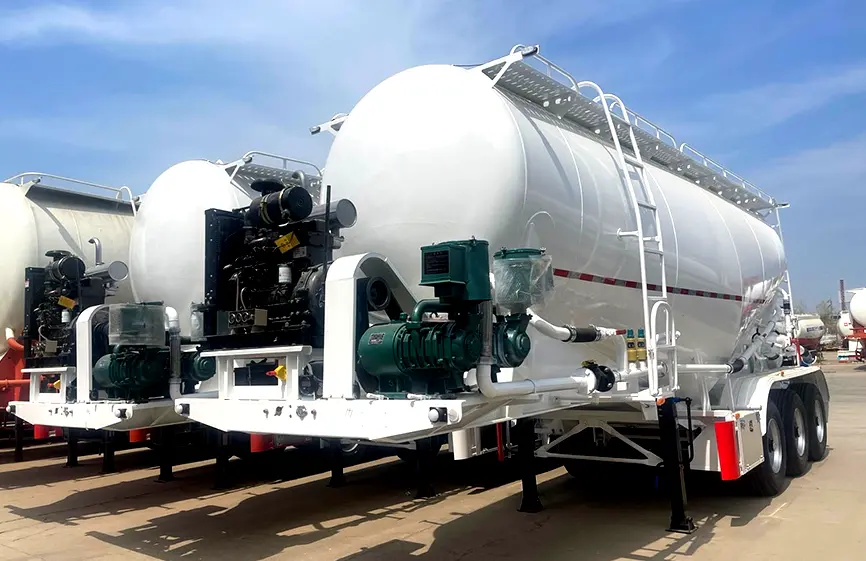

Loading and Unloading: The pneumatic discharge system ensures efficient and swift unloading, minimizing downtime. Its airtight design prevents contamination and moisture ingress.
| Specification | |
| Product Type | Shacman V-Type Cement Bulker Semi Trailer |
| Main Chassis Material | Q345/NM450 material “I” profile produced with automatic submerged arc welding, high-quality strength, Chassis: 5 mm, Flanges: 8 mm |
| Tank body | Tank is built by carbon steel Q345 with thickness of 4 mm 4 units of heavy duty screw type loading covers with 450 mm opening Working pressure 2 bar and test pressure 3 bar 4″ discharging system and 6 m special alloy discharge hose Spheric air valves and 4 discharging jet valves units 1 unit regulated to 2.5 bar safety valve Upper catwalk and access ladder 2 x Manhole Covers, 4001 mm Discharging System and pipeline 4 inch Welding applied in flat position by automatic arc welding machine Offload adaptor of 4 automatic offload to the left side or from the middle of the bulker with return lines with couplers in the back of bulker with one 3” and one 4” pipes size |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Suspensions : Air Suspension, Front Axle Liftable (Optional) |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 12R22.5 (Optional any compatible size) |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, |
| Other Compatible Tire Sizes | 12.00R20 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
