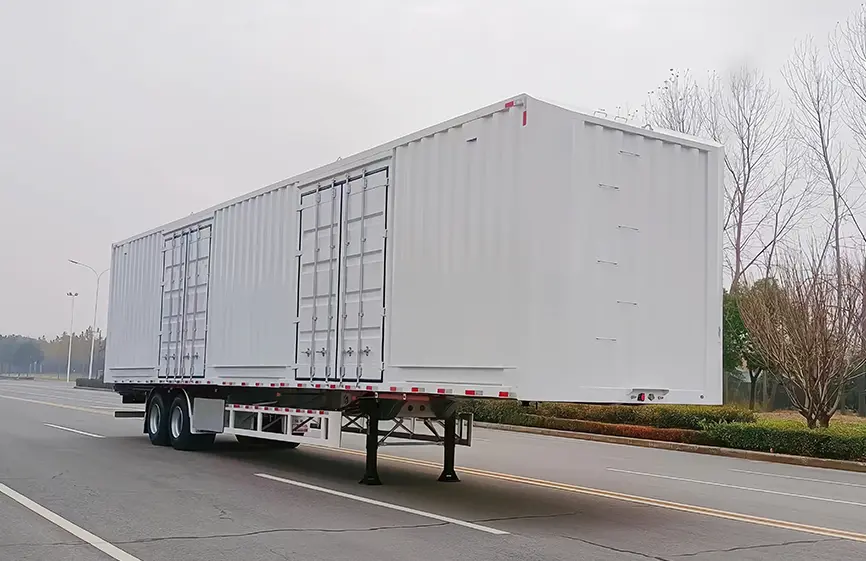

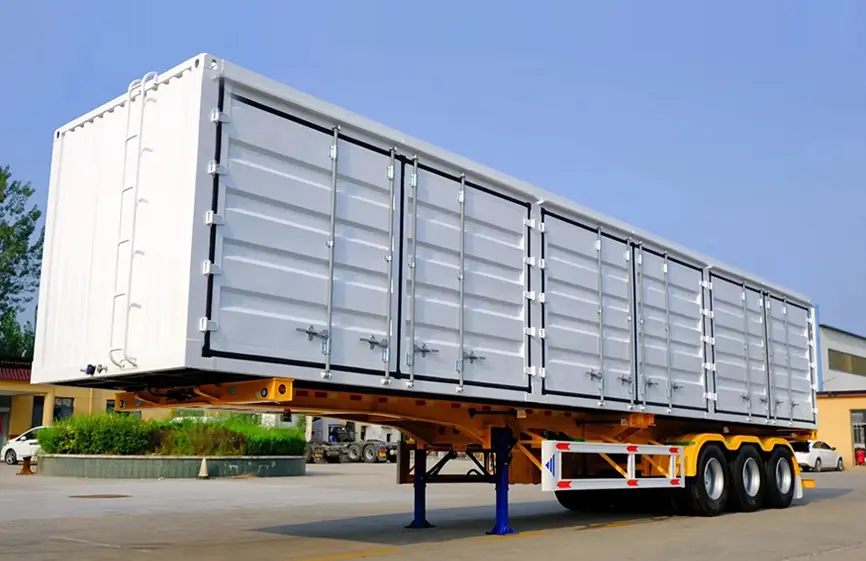

Shacman Van Semi Trailer series is suitable for transporting household appliances, light industrial goods, coal, sand and gravel, and other building materials, as well as palletized goods. The top cover of the live-top box can be raised and lowered vertically to change the box volume and meet the loading and unloading requirements of different goods. The wing-type box facilitates the loading and unloading of goods and improves loading and unloading efficiency.
1. The Shacman Van Semi Trailer features strong load-bearing capacity, high safety factors, rational design, durability, and advanced manufacturing processes.
2. The chassis of the Shacman Van Semi Trailer adopts a through-beam structure, with longitudinal beams available in straight or gooseneck styles. The web height ranges from 400 to 550 mm. Longitudinal beams are welded using automatic submerged arc welding, and the chassis undergoes shot blasting treatment. Cross beams are inserted into the longitudinal beams and welded as a single unit.
3. The Shacman Van Semi Trailer’s box structure uses high-strength cold-rolled corrugated steel plates with a frameless design, providing a spacious cargo area with reasonable internal distribution. It features X-shaped tie rods, offering advantages such as high load capacity, heavy-duty performance, and lightweight construction. The Van top offers options such as closed, sliding, open, and open with a tarp rod, providing convenient operation and meeting users’ diverse and personalized requirements.
4. The Shacman Van Semi Trailer is composed of a series-connected steel spring and suspension mount; the structure is reasonable, with strong stiffness and hardness, designed to support loads and reduce impact.
5. The Shacman Van Semi Trailer features a closed-type side protection design, effectively reducing lateral risks during high-speed driving and lowering energy consumption. The rear protection design includes reasonably positioned towing attachments for convenient operation.
| Semi Trailer Main Structure | |
| Product Type | Van Semi-Trailer |
| Main Chassis Material | Made of high quality and high strength Q345 steel, ;made of two welded long itudinal beams in I form with cross beams at needed distances (Optional special T700 steel for light weight design) |
| Tail Gate | Mechanical open, lengthwise, top-hinged (Optional hydraulic) |
| Volume | 45-60 m3 (Optional design with any volume) |
| Semi Trailer Axle Specification | |
| Number of Axles | 2-3-4 axles |
| Axle Brake Type | Drum brake type (Optional disc brake type) |
| Each Axles Capacity | 13 tons capacity (Optional up to 20 tons) |
| Each Sequence Twin/Single Wheel | Single wheel (Depends on tire dimension) |
| Number of Steered Axles and Position | Optional other options |
| Semi Trailer Suspension Equipment | |
| Suspension Type | Air suspension and equipment’s (Optional any type) |
| Suspension Bellows and Type | 818 Type suspension bellows |
| Springs and Type | Parabolic double decked Z spring or other types |
| Shock Absorbers | Standard shock absorbers equipment |
| Trailer Tires & Rims Specifications | |
| Tire Dimensions | 385/65 R 22.5 (Optional any compatible size) |
| Rim Dimensions | 22.5X11.75 steel rims with standard tire dimension |
| Total Tire & Rim Unit | With 385/65 R 22.5 option, totally 12 units (for 24m3) |
| Other Compatible Tire Sizes | 12 R 22.5 (Double tire size optional) |
| Semi Trailer Brake System | |
| Air Line | Standard Dual circuit brake hardware |
| Brake System | EBS (Optional 4S/3M or 4S/4M) WABCO or KNORR brand (Optional only ABS System) |
| Brake Slack Adjusters | Automatic type |
| Semi Trailer Electrical Equipment | |
| Electrical Input Voltage | Standard 24V |
| Socket Type | Standard 7 (optional 15 pins) NATO type or any type distribution cable |
| Ex-Proof Compatibility | Available as optional |
| Lighting Functions | Brake, signal, stop, reversing and fog lights, side lights, reversing lights, license plate lights |
| Semi Trailer Hydraulic Equipment | |
| Hydraulic System | Five stages heavy duty cold-drawn telescopic cylinder |
| Hydraulic Oil Tank | Available as optional (Optionally oil tank has 70lt capacity or at the desired capacity. On the tank there are, 125″ suction filter, and 25″ return filter with ventilation, level indicator, special valve, and releasing tap) |
| Other Standard Equipment | |
| King Pin | 50#/90# |
| Landing Legs | Dynamic 24 ton, static 50 tons capacity, one side controlled |
| Lockable Cabinets | 1-2 units |
| Spare Tire Holder | 1-2 units |
| Operate the shining vest | 1-2 units |
| Water Tank | 1 water tank with soap dispenser |
| Mudguards | 3 sets of half mudguard |
