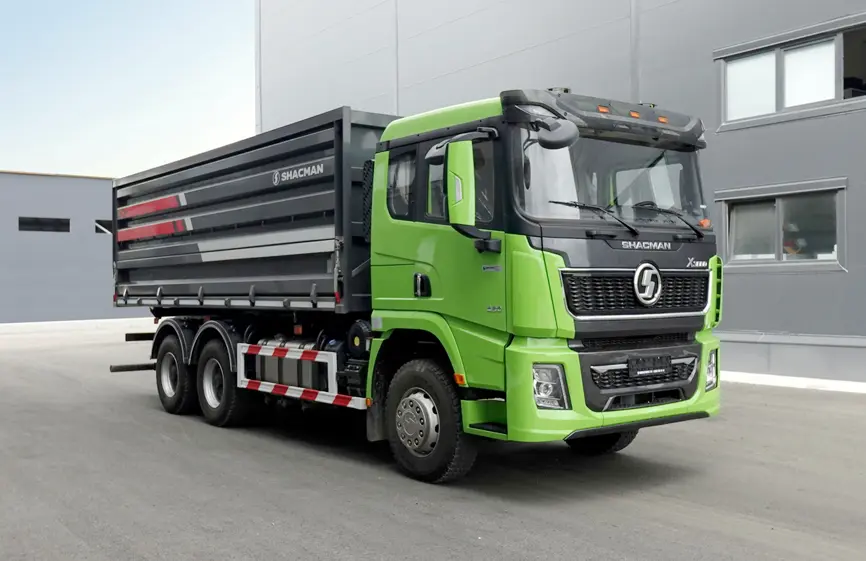

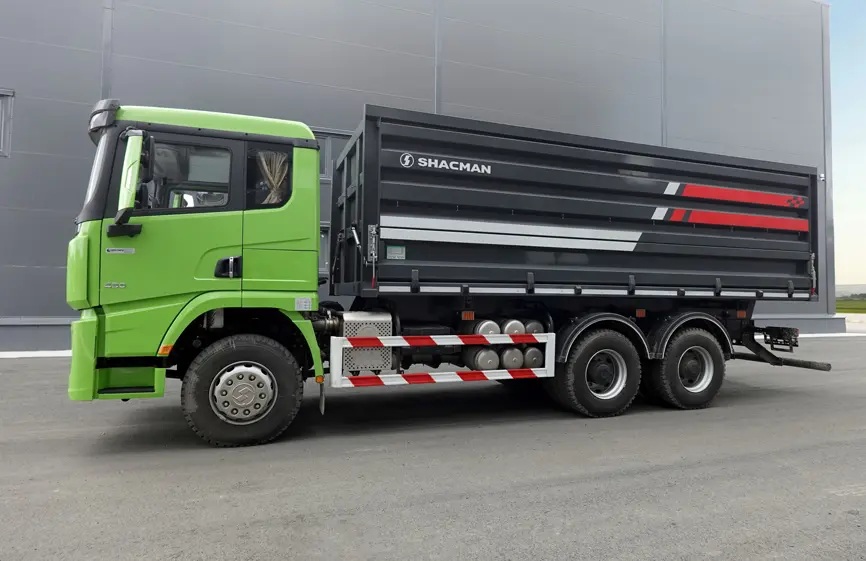

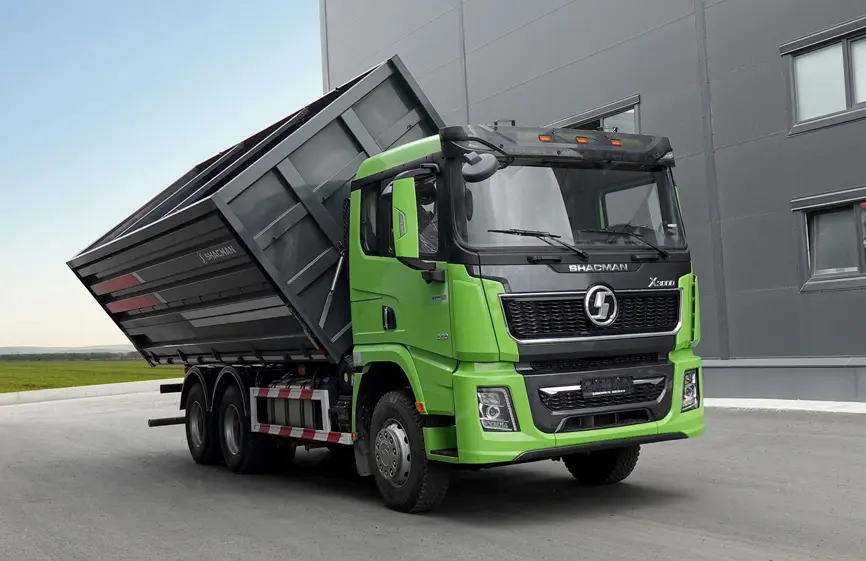

Shacman X3000 430 Dump Truck,A powerful and reliable truck, specially designed for transporting grain and other bulk cargo. Provides excellent cross-country ability and stability on various types of roads, making it an ideal choice for agricultural enterprises.
In the heavy machinery sector, the Shacman X3000 430 Dump Truck stands as a benchmark of Chinese manufacturing excellence. This 43-tonne rated capacity mining dump truck, equipped with the Weichai WP13.430E62 engine, is akin to having a “steel heart,” delivering robust power output even at altitudes of 3,000 meters. The Shacman X3000 430 Dump Truck’s innovative “I”-shaped monocoque chassis design enhances its torsional strength by 23%, making it particularly suited for the harsh road conditions found in mining areas.
Drivers who have operated the Shacman X3000 430 Dump Truck have praised its ergonomic design: the wraparound dashboard features a 7-inch smart terminal that enables real-time monitoring of the hydraulic lifting system’s status. The standard oil-bath air filter ensures the Shacman X3000 430 Dump Truck maintains optimal airflow even in dusty and sandy work environments. According to actual operational data, the Shacman X3000 430 Dump Truck has an average mean time between failures (MTBF) of 12,000 kilometers and maintains an availability rate of over 92%.
Through lightweight design, the Shacman X3000 430 Dump Truck has a curb weight of only 14.8 tons, representing a 5% weight reduction compared to similar products. Paired with a Fast 12-speed transmission, it forms a golden power chain that reduces fuel consumption by 3-5 liters per 100 kilometers compared to competing products. In a comparative test at a large coal mine, 10 Shacman X3000 430 Dump Trucks saved over 1.5 million yuan in annual fuel costs, earning them the title of “cost-saving experts” in efficient transportation.
Technical specifications
Wheel arrangement: 6×4
Cabin: X3000
Engine: Weichai Power 430 hp
Gearbox: Fast Gear 12JSD220TA-B
Final drive ratio: 4.7
Fuel tank: 500 l
Tires: 315/80R22.5

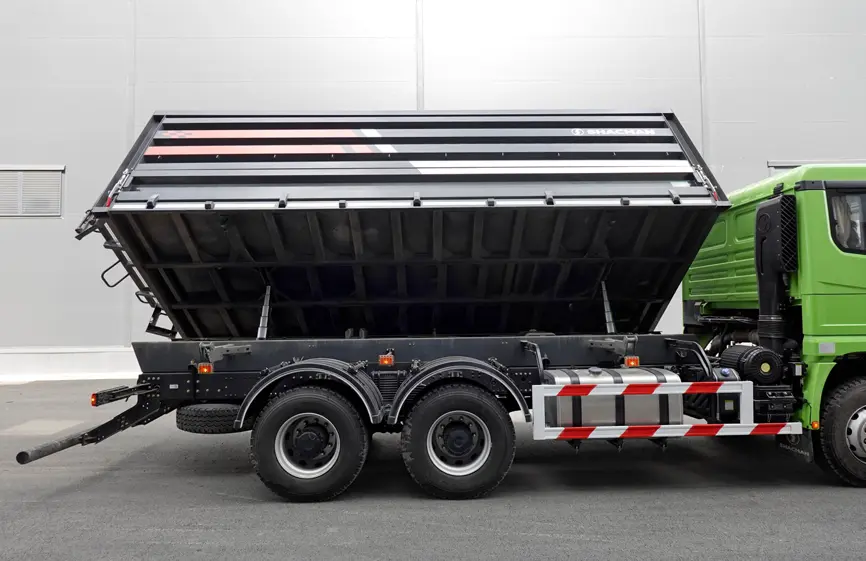

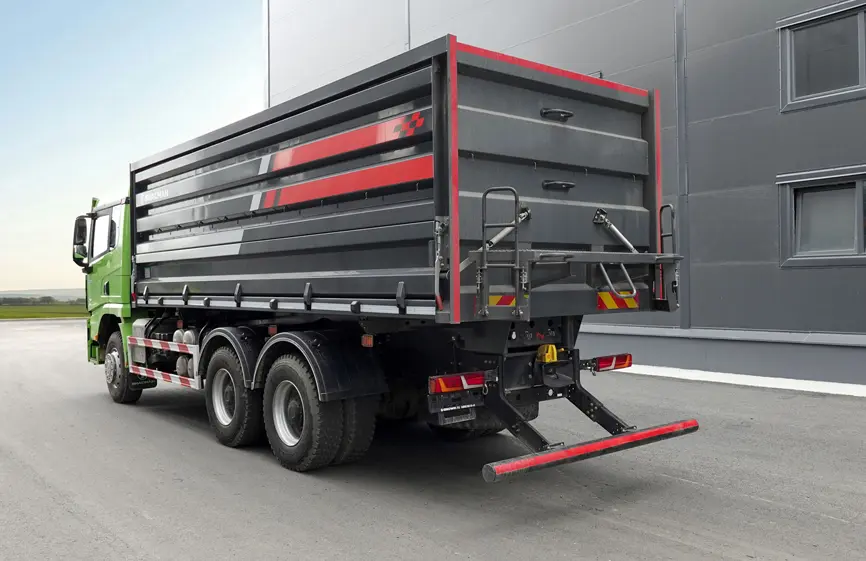

Body characteristics
Length/width/height: 6,300 mm/2,300 mm/ 1,800 mm
Body volume: 25 m³
Floor/side wall thickness: 3 mm
Interior
Multimedia screen with touch control
Steering wheel tilt and reach adjustment
Driver’s seat with air suspension
Rear-view mirrors with electric drive and heating
Autonomous air heater
Sleeping shelf
Storage compartment under the sleeping shelf
Inner and outer sun visor, sun visor side curtain
Tool kit: fire extinguisher, jack, wheel chocks
Exterior
Front and rear leaf spring suspension with anti-roll bar
LED headlights with low and high beam function, as well as fog lights
Steel wheels
Intelligent driver assistance systems
Anti-lock braking system ABS
Climate control
Cruise control
360 degree all-round view system
