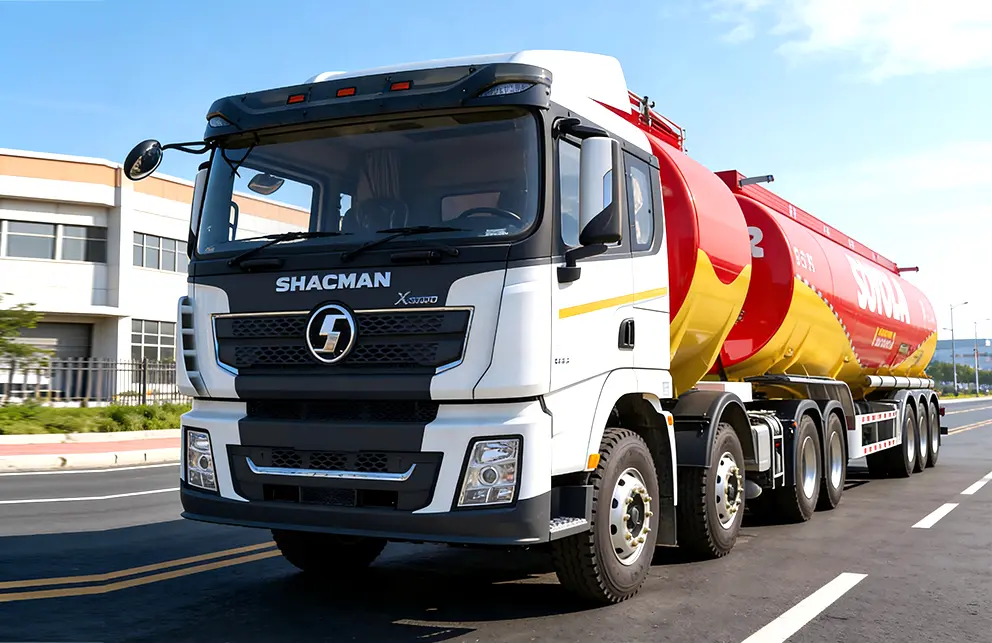

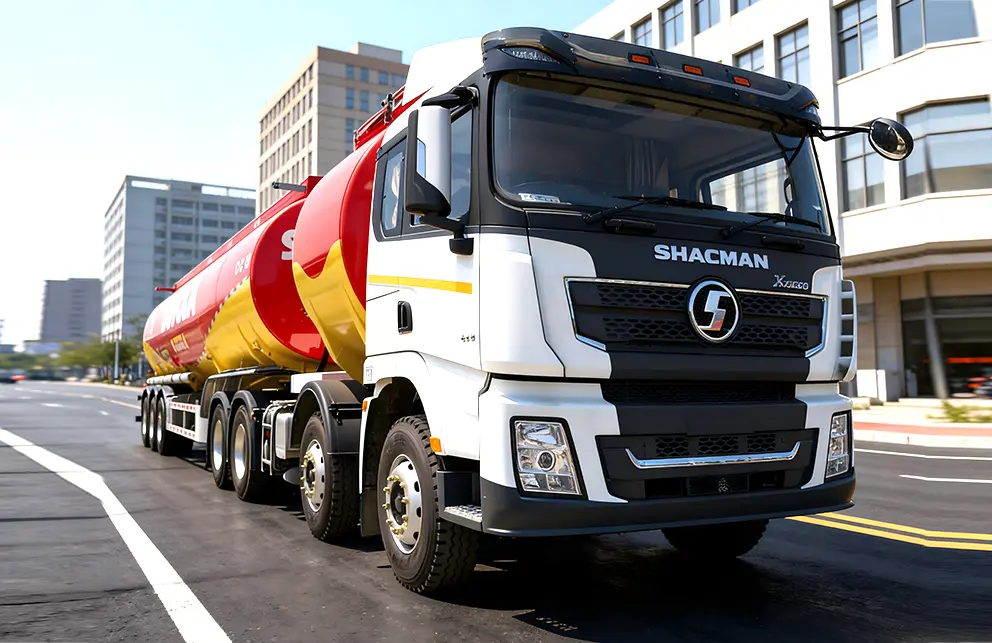

Shacman X3000 8x4 Tractor Oil Tank

The Shacman X3000 8×4 Tractor Oil Tank is a heavy-duty specialized vehicle designed for the safe and efficient transportation of various liquid fuels, including diesel, gasoline, and lubricating oil. Built on Shacman’s advanced X3000 platform, it combines robust power performance, advanced safety features, and customizable tank configurations to meet the demands of global fuel logistics and distribution industries.

Drive Configuration: 8×4 heavy-duty layout with left-hand or right-hand drive options, compliant with Euro III emission standards.
Power System: Equipped with Weichai WP12.400E201 diesel engine, delivering 400 HP maximum power and 1,900 N·m peak torque. Paired with FAST 12-speed manual transmission for smooth power delivery.
Tank volume: 30,000-32,000 liters (8,000-8,450 gallons), with customizable options from 10,000 to 60,000 liters
Tank material: Carbon steel, stainless steel, or aluminum alloy, with anti-corrosion coating for extended service life
Loading weight: 40 tons; Curb weight: approx. 12,500 kg
Tank accessories: Manhole, walkway, handrail, ladder, oil pump, pump-in/out ports, valves, and oil hose for safe and convenient operation

Enhanced Safety Features: Built-in anti-static devices, emergency shut-off valves, and fire extinguishers ensure safe transportation of flammable liquids. Compliant with international safety standards for hazardous material transport.
Customization Flexibility: Supports tailored configurations such as different tank materials, volumes, emission standards, and auxiliary equipment to meet diverse customer needs.
Robust Durability: Reinforced frame structure and high-quality tank material ensure reliable performance under long-term heavy load operations, with a service life exceeding 800,000 kilometers.
Operational Efficiency: Optimized engine and transmission system achieve low fuel consumption, reducing long-term operational costs for logistics companies. Fast loading and unloading system minimizes turnaround time.

SHACMAN X3000 8X4 TRACTOR OIL TANK
Model	SX43155W266CR
Engine	M10 440
Horsepower (PS)	440
Emissions	Euro II
Transmission	SF16JZ240-Aluminum Shell-QHG50C
Axle Ratio	13T MAN Single-Stage Reduction Axle-3.364
Frame (mm)	850×270 (Single 8)
Wheelbase (mm)	1950+2675+1400
Rear Overhang (mm)	725
Cab	Extended Flat Top
Front Axle	HD 7.5T
Suspension	Front and Rear Multi-Leaf Springs
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tires	315/80R22.5
Upper Structure Specifications	6.5 cubic meter aluminum alloy liquid tank, single compartment, tank body 5182 5.5mm, end caps 5182 6mm; additionally, a 300L carbon steel oil tank is added to the chassis.
Basic Configuration	X3000 extended flat-top cab tractor unit with top fairing, electronically controlled automatic climate control, Jost domestically produced C-type cast 50mm saddle, imported clutch, oil bath air filter, right-side exhaust (with fire cap), multi-leaf spring front suspension, multi-leaf spring rear suspension, domestically produced right-hand drive steering gear, multi-function steering wheel (with cruise control), WABCO imported four-channel ABS, 180Ah maintenance-free battery, electric tilting, three-stage entry steps, fiberglass bumper, lightweight. Three-section integrated mudguards/Dual front tow pins/Power window regulators/Central locking (with remote control)/Air-operated driver’s seat/Power heated and electrically adjustable rearview mirrors/Taillight protection grille/Radiator protection grille/Aluminum alloy air tank/Visual long-life coarse filter/LED taillights/Upright battery box/Aluminum alloy step ladder/Rear reflector/Driver’s cab reflective markings/50T jack/8KG fire extinguisher/Four-point air suspension/Flatbed mounting plate/LED daytime running lights/Reversing buzzer/Fuel system anti-theft system
