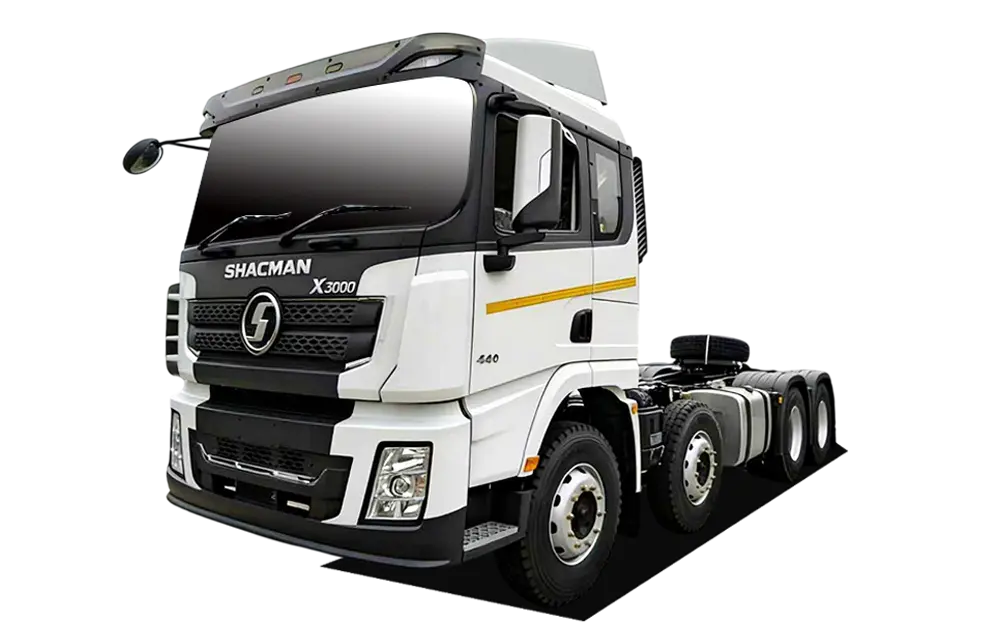

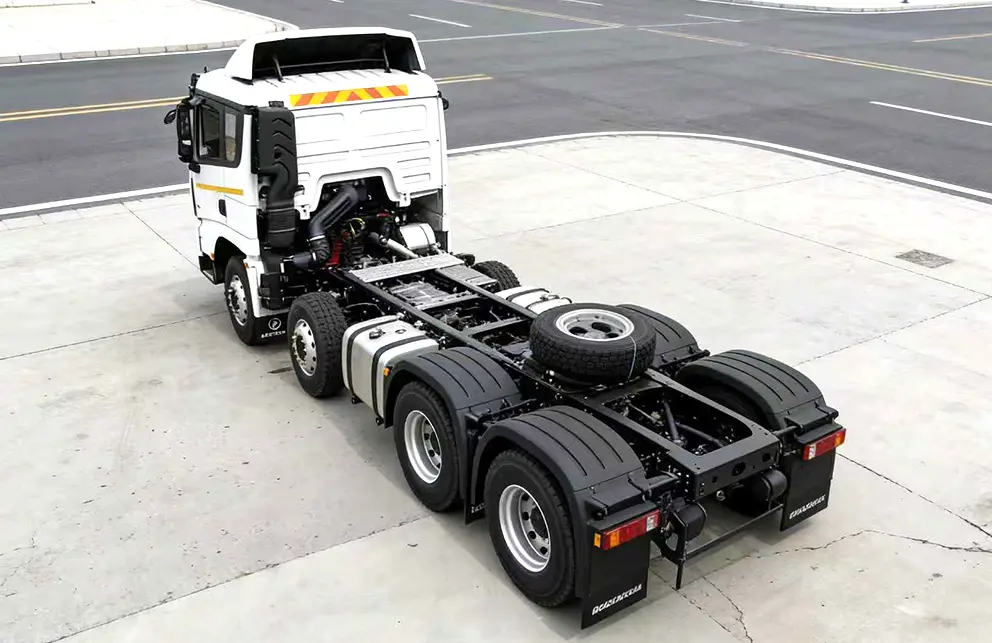

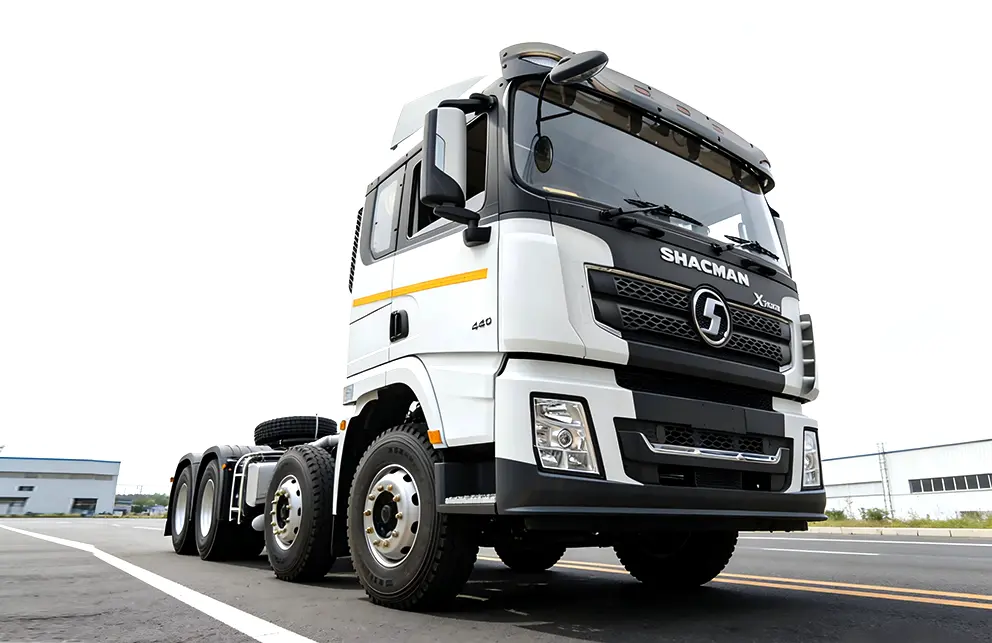

The Shacman X3000 8×4 Tractor Truck is a heavy-duty commercial vehicle designed for long-haul cargo transportation and heavy load towing. Built on Shacman’s advanced X3000 platform, it combines robust power performance, intelligent control systems, and durable components to meet the demands of global logistics, mining, and construction industries. With customizable configurations and competitive pricing, it serves as a cost-effective solution for international markets including Africa, Southeast Asia, South America, and the Middle East.
Drive Configuration: 8×4 heavy-duty layout with manual transmission, supporting left-hand or right-hand drive options.
Power System: Equipped with Weichai WP12.430E201 diesel engine, delivering 430 HP maximum power and 2,000 N·m peak torque.
Compliant with Euro II to Euro V emission standards, ensuring adaptability to diverse regional regulations.
Front axle: MAN 7.5T axle; Rear axle: 2×16000kg double reduction driving axles with inter-wheel differential lock for enhanced traction
Transmission: FAST 12JSD200T-B 12-forward, 2-reverse speed manual gearbox for smooth power delivery
Wheelbase: 1800+3575+1400 mm; Overall dimensions: customized based on cargo body requirements
Tire: 12.00R20 radial tires; Fuel tank capacity: 400 L
Robust Durability: Reinforced frame structure and heavy-duty components ensure reliable performance under long-term heavy load operations, with a service life exceeding 800,000 kilometers.
High Traction & Stability: The three rear drive axles with differential lock provide exceptional traction on uneven roads and steep slopes, ensuring safe operation in challenging terrains.
Customization Flexibility: Supports tailored configurations such as different emission standards, cabin designs, and auxiliary equipment to meet diverse customer needs.
| SHACMAN X3000 8X4 TRACTOR TRUCK | |
| Model | SX43155W266CR |
| Engine | M10 440 |
| Horsepower (PS) | 440 |
| Emissions | Euro II |
| Transmission | SF16JZ240-Aluminum Shell-QHG50C |
| Axle Ratio | 13T MAN Single-Stage Reduction Axle-3.364 |
| Frame (mm) | 850×270 (Single 8) |
| Wheelbase (mm) | 1950+2675+1400 |
| Rear Overhang (mm) | 725 |
| Cab | Extended Flat Top |
| Front Axle | HD 7.5T |
| Suspension | Front and Rear Multi-Leaf Springs |
| Fuel Tank | 400L Aluminum Alloy Fuel Tank |
| Tires | 315/80R22.5 |

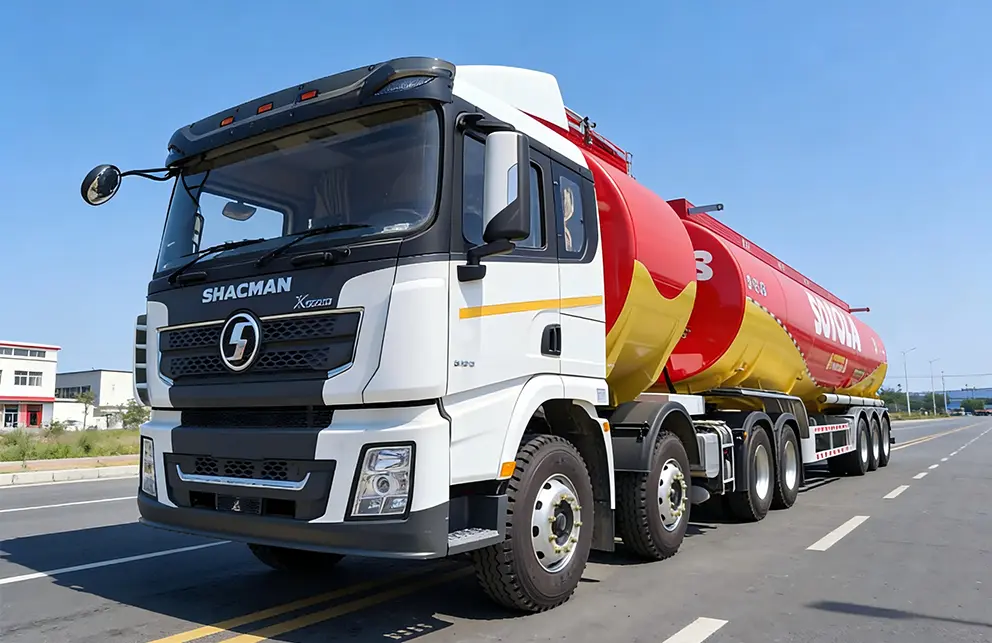

| Upper Structure Specifications | 6.5 cubic meter aluminum alloy liquid tank, single compartment, tank body 5182 5.5mm, end caps 5182 6mm; additionally, a 300L carbon steel oil tank is added to the chassis. |
| Basic Configuration | X3000 extended flat-top cab tractor unit with top fairing, electronically controlled automatic climate control, Jost domestically produced C-type cast 50mm saddle, imported clutch, oil bath air filter, right-side exhaust (with fire cap), multi-leaf spring front suspension, multi-leaf spring rear suspension, domestically produced right-hand drive steering gear, multi-function steering wheel (with cruise control), WABCO imported four-channel ABS, 180Ah maintenance-free battery, electric tilting, three-stage entry steps, fiberglass bumper, lightweight. Three-section integrated mudguards/Dual front tow pins/Power window regulators/Central locking (with remote control)/Air-operated driver’s seat/Power heated and electrically adjustable rearview mirrors/Taillight protection grille/Radiator protection grille/Aluminum alloy air tank/Visual long-life coarse filter/LED taillights/Upright battery box/Aluminum alloy step ladder/Rear reflector/Driver’s cab reflective markings/50T jack/8KG fire extinguisher/Four-point air suspension/Flatbed mounting plate/LED daytime running lights/Reversing buzzer/Fuel system anti-theft system |
