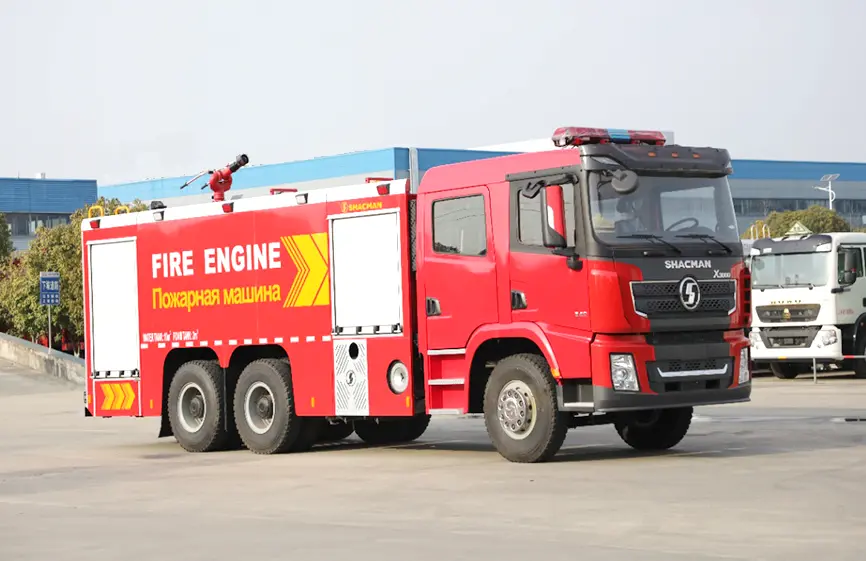

Carriage parameters

 Distribution structure of carriages

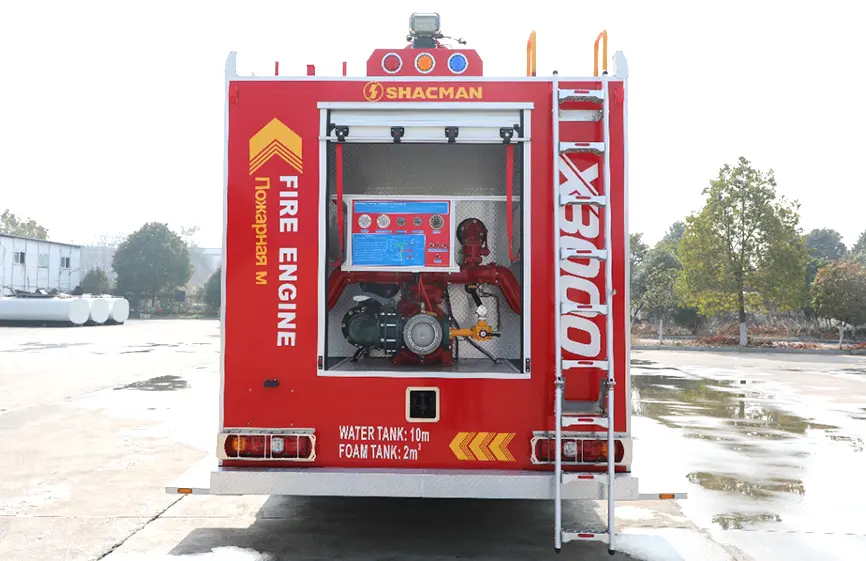

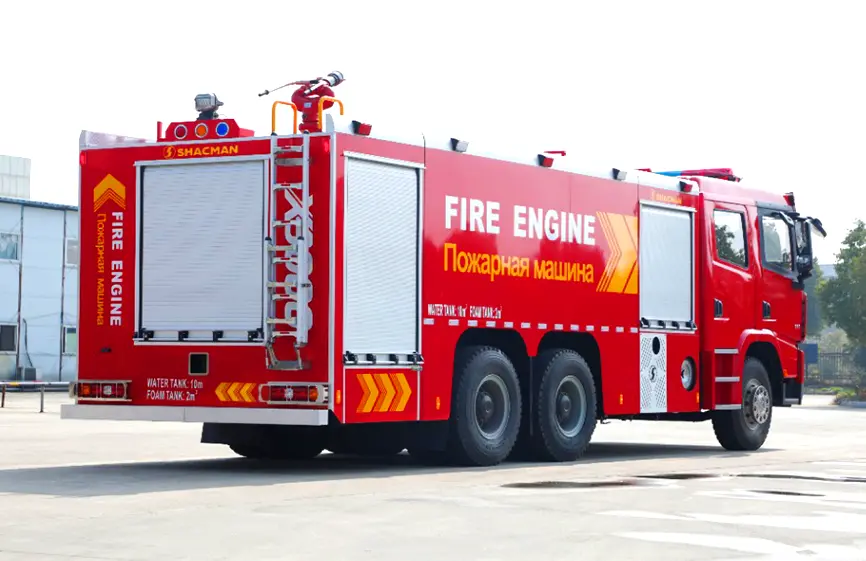

The front part is the equipment box, the middle part is the water tank, and the rear part is the pump room.

Material of carriage construction

 The frame skeleton and skin are made of high quality Q235 carbon steel profiles.

 Car body making process

All carbon steel profiles and plates are treated with acid washing and phosphating to prevent corrosion, all parts and standard parts are treated with electroplating, electrophoresis and other surface treatment processes. All cutting parts are cut by laser cutting machine to ensure the precision of parts.

 Fire extinguishing agent tank parameters

Tank capacity

water tank, 2000KG foam tank

Tank material

Water tank and foam tank are made of 304 stainless steel

Tank structure

 The tank frame is welded, longitudinal and transverse wave prevention plates are set inside the tank, and a manhole is opened in the middle. The head, side plate and partition plate all have trapezoidal rib to increase strength, and the top plate is reinforced with steel triangular profile.

detection mode

After 0.1 MPa hydrostatic pressure strength test, no obvious residual deformation appeared on both sides of the tank.

Tank characteristics

1.The tank is equipped with a device to prevent the water pump from forming vortices which will affect the flow rate and a filter screen.

2.The tank is equipped with a stainless steel floating ball level indicator, which can display the capacity of the extinguishing agent in the tank through the level meter on the instrument panel; the bottom of the tank is equipped with a sewage outlet with a ball valve.

3.The tank has one DN76 overflow pipe and two DN76 inlet ports on both sides of the car, which is convenient for other vehicles to supply water and add liquid.

Fire pump parameters

brand

 Shanghai Rongshen

model

CB10/60normal pressure fire pump

rate of flow

60L/s

pressure

1.0MPa

Vacuum pump parameters

Working form

 piston

Water diversion time

≤35s

Water absorption depth

≥7m

maximum working pressure

≥85Kpa

 Pipeline system parameters

 Water suction line

The water pump has a DN150 inlet.

Water absorption method

 Natural water source, liquid tank, fire water storage tank.

Water absorption method

One DN100 outlet fire cannon pipe is set on the roof, and one DN80 and one DN65 outlet are set on both sides of the pump room.

Water supply line

A DN65 pump is set in the pump room to inject water into the tank. There are 2 DN65 injection pipes on both sides of the car, which can inject water into the tank.

Empty the remaining pipes

In order to protect the pump and each ball valve, a discharge pipe is installed in the pipeline, and ball valves are respectively equipped.

Cooling water lines

Set up a circulating water line to cool the force collector for a long time.

 Fire cannon parameters

brand

WESTE

model

PL8/48W fire cannon

 rate of flow

48L/S

working pressure

1.0MPa

Work radiu

Water ≥ 70m, foam ≥ 65m

installation site

Top of the tank.

 Fire pump power unit

Form of forceps

Full power sandwich actuator.

cooling-down method

Forced water cooling.

Lubrication method

Splashing oil lubrication.

control mode

Cab control.

electrical system

lamps and lanterns

1.The cab is equipped with a long row of police lights, and three warning flashing lights are set on both sides of the car.

2. Fire scene lighting lamps are set on the roof of the car, and lighting combination lamps are set on both sides of the car.

3.lighting is set in the member room, equipment box and pump room

4.Side profile lights are set, and turn signals are set at the rear.

siren

100W

control method

1.The police light, alarm and flashing light are controlled in the cab.

2.The lighting of the equipment box and pump room is controlled in the pump room

Equipment room parameters

material quality

The equipment rack is made of aluminum alloy profile, and the interior panel is oxidized aluminum plate.

 technology

The equipment room adopts a lockable roller shutter door, the handle and lock pin are strong and durable, and do not deform. The rivets are fixed in the sliding tracks on both sides, and the sealing performance has been tested by water to ensure no leakage.

design discipline

①Design materials integration according to combat formation and combat deployment.

②Various equipment brackets are designed according to ergonomic principles.

③No climbing tools are required, and the principle of simple and practical access to any equipment in the box.

④Place equipment according to the logical relationship and frequency of use.

⑤ Take any equipment within 1-2 movements from the ground or on the pedal.

Fire fighting equipment list

order number

name

 unit

quantity

 remarks

1

fire hose

tray

10

6 DN65,4 DN80

2

Water supply hose

 meter

1

Type 13, DN65 inward buckle

3

Straight water gun

 piece

1

4

 Fountain water gun

 piece

1

5

dry-chemical fire extinguisher

 piece

1

ABC dry powder fire extinguisher

6

 Collector

 piece

1

7

Distribution pipeline

 piece

1

8

Water pipe wrench

 piece

2

9

rubber hammer

piece

1

10

 Fire hydrant wrench on the ground

 piece

1

11

Underground fire hydrant wrench

 piece

1

12

The Guard Bridge

 piece

2

13

Water belt wrap

 piece

4

14

Water hose hooks

 piece

4

15

 a fireman’s axe

 piece

1

16

 Fire suction pipe

 meter

8

17

Water intake pipe filter

 piece

1

One is provided for every 8 m suction pipe

18

Oblique interface

 piece

2

Inner diameter Φ65 to Φ80

19

shovel

 piece

1

20

T-shaped pick

 piece

1

21

Same type interface

 piece

1

DN100

22

Foam pipette

 piece

1

23

Foam gun

 piece

1
