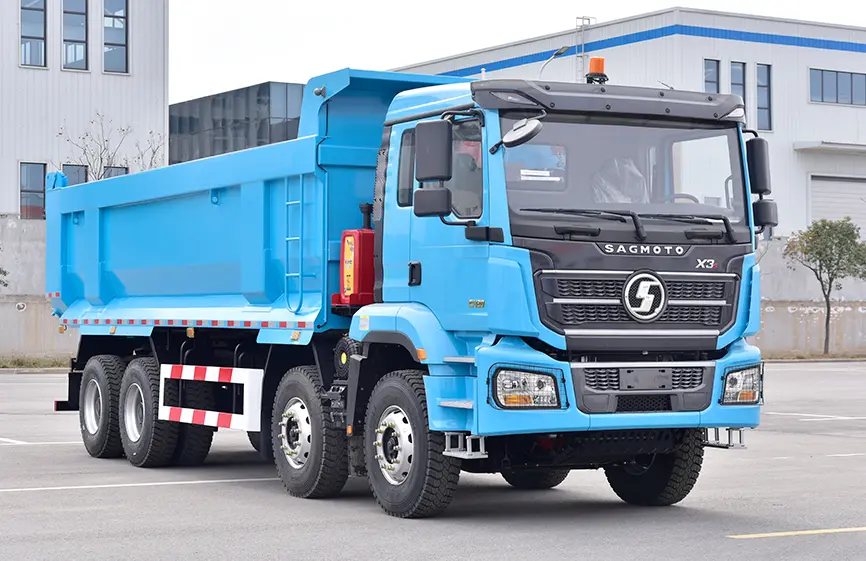

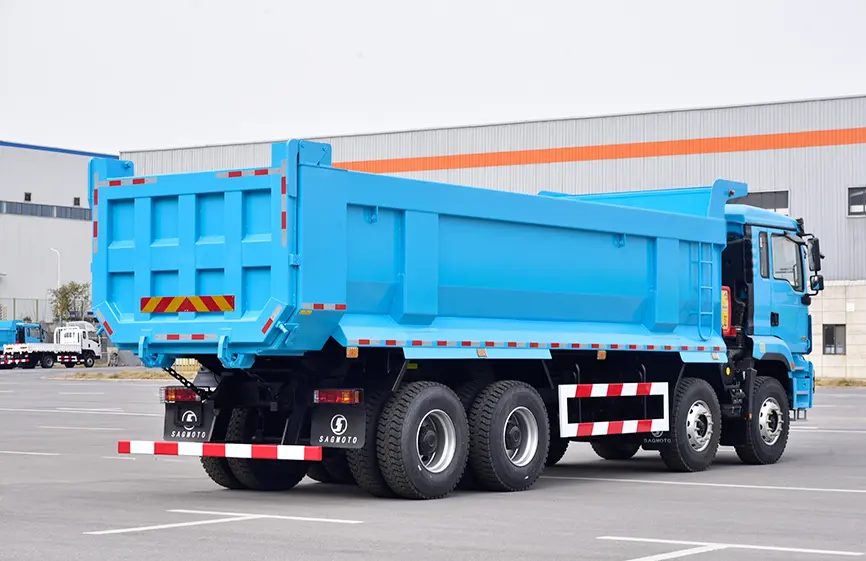

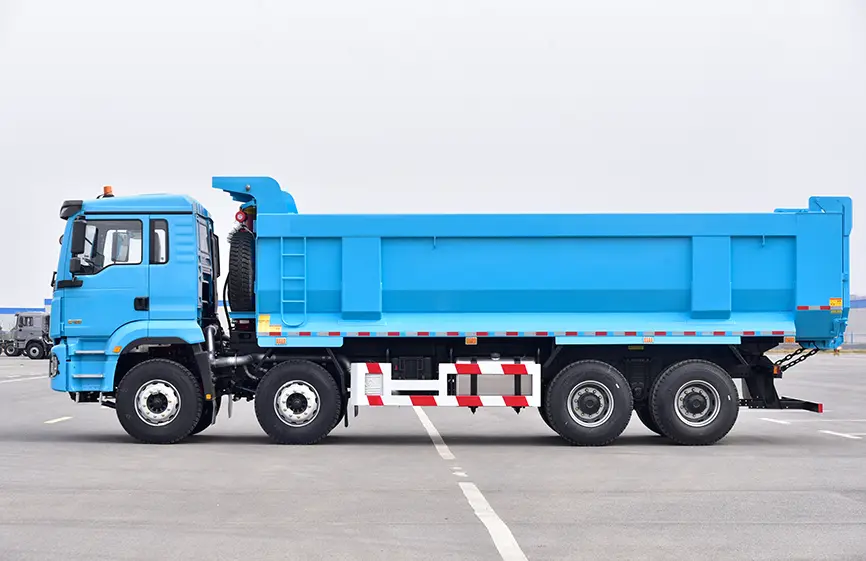

The SHACMAN X3000 8×4’s design centers on robustness and high load capacity, making it suitable for heavy-duty transportation in challenging environments like mining, construction sites, and quarries. The 8×4 drive configuration provides superior traction and stability, especially important on uneven or soft terrain often found at such work sites.
Environmental Protection and Power: Upgraded from Euro 2 to Euro 6 emission standards, engine power increased by 16%, torque reaches 2400 N·m, and climbing ability is enhanced.
Driving Experience: The cab features a four-point suspension design, standard air conditioning and an air-suspension seat, and noise levels are kept below 75 decibels.
Durability: The cargo box is made of Hardox 450 wear-resistant steel, which has 30% higher impact resistance than ordinary steel, making it suitable for transporting hard materials such as ores.
Shacman X3s 8×4 Tipper Truckis primarily used in sectors that require moving massive amounts of heavy material:
Construction and Earthmoving: For transporting sand, gravel, and demolition debris.
Mining and Quarrying: For hauling extracted minerals, rocks, and overburden.
Large-scale Infrastructure Projects: Ideal for use on dams, road construction, and port development sites.

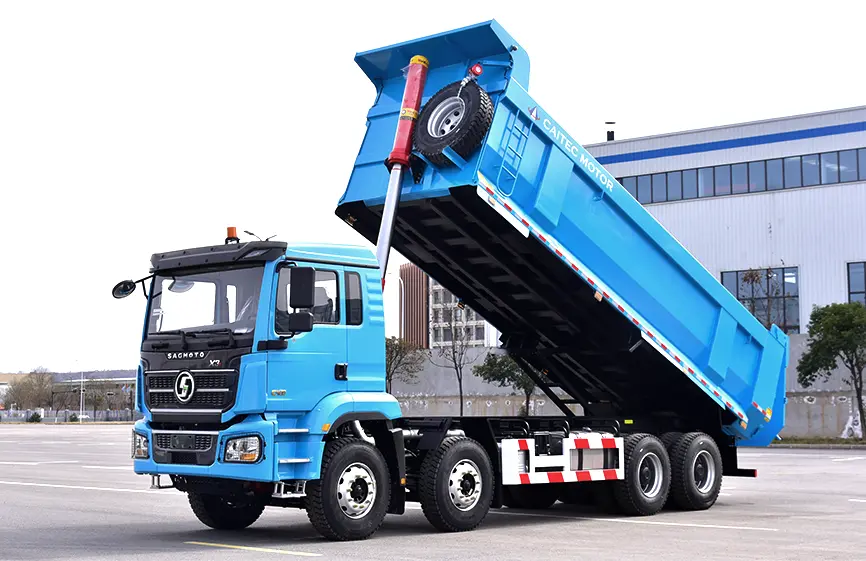

Durable Construction: High-strength steel dump body with front-lifting hydraulic system for efficient unloading.
Powerful Performance: Equipped with a Weichai diesel engine and FAST manual transmission, ensuring reliability under heavy loads.
Safety & Comfort: Left-hand drive configuration, air suspension seats, and ergonomic cabin design for operator comfort during long hauls.
Customization Options: Available in white, red, or blue; supports tailored modifications for specific industry needs (e.g., mining, construction).
|
Truck Name |
SHACMAN X3S 8×4 TIPPER TRUCK |
|
Model |
SX3253M3M39J3840 |
|
Driving position |
left standard rudder |
|
Driving type |
6*4 |
|
Engine |
Cummins ISME 450 30 |
|
Effluent standard |
Europe 3 |
|
Transmission |
Fast 810JSD180(cast iron)-QH50 |
|
Vehicle speed ratio |
16t/ two-stage/5.92 |
|
Frame (mm) |
850×300 /8+7 |
|
Wheel base(mm) |
3775+1400 |
|
Front axle |
9.5t |
|
Suspension |
10/12 (four main films+four horseback riding) |
|
Fuel tank |
400L Aluminum fuel tank |
|
Wheels and tires |
12.00R20/18PR |
|
Other configurations |
1. Cab: X3s medium-long and half-high roof, airbag shock-absorbing main seat, fixed auxiliary seat, four-point mechanical mount, halogen headlights, multi-function steering wheel, lever rearview mirror, automatic constant temperature air conditioner, electric window, 5-inch LCD screen combination instrument, Bluetooth player (with 5-inch screen)., manual turnover, central locking (1 central key +2 mechanical keys), M3000S metal bumper (bumper can be the same color as the cab or black bumper), cast outrigger/central towing hook, three-step stepping and sunshade; 2. Chassis: 180Ah maintenance-free battery, iron gas cylinder, spare wheel rack with spare wheel, oil-bath air filter, headlight and taillight protection grille, 50t jack, water tank protection grille+oil pan protection grille (optional in desert area: windproof oil pan protection grille). 3. Logo: with non-luminous SQ logo, SAGMOTO logo, English or Chinese and Englis |
