When a next-generation wind turbine blade needs to reach a remote mountain site, the logistics challenge is as demanding as the energy it will produce. Here is how the SHACMAN X5000 heavy-haul tractor delivered 180 tonnes of oversized cargo through some of Southeast Asia’s toughest terrain.
Transporting oversized wind turbine components through mountainous regions is one of the most demanding tasks in heavy-haul logistics. Tight hairpin bends, steep gradients, narrow roads and unpredictable traffic conditions require specialized equipment, experienced operators and heavy-haul vehicles capable of delivering consistent power and control.
In a recent operation, the SHACMAN X5000 was deployed to transport a giant wind turbine blade through challenging highland terrain in Southeast Asia — a real-world demonstration of what a modern heavy-haul tractor can achieve.
At a staging yard in the foothills of Southeast Asia, a crane loaded the turbine blade onto a specialized blade lifter.
Initially positioned horizontally, the blade was gradually raised toward a near-vertical position. This significantly reduced the blade’s swept envelope, helping the transport combination negotiate tight hairpin bends and maintain clearance when meeting oncoming traffic.
With ballast and transport equipment included, the gross combination weight reached approximately 180 tonnes.
The operation was managed by a logistics team with more than 40 years of experience in heavy-haul transportation, specializing in power-generation equipment, mining machinery and wind energy components. Its fleet includes modular hydraulic axle trailers, hydraulic lifting systems and specialized blade lifters designed for demanding oversized transport operations.
The SHACMAN X5000 deployed for this operation was configured specifically for heavy-haul duty.
Its M15 heavy-haul engine delivers 660 hp and 3,200 N·m of peak torque, with maximum torque available across a broad 900–1,400 rpm range.
This torque characteristic provides strong and consistent pulling capability during demanding operations — from low-speed starts under heavy load to sustained climbs on steep gradients.
Combined with a hub-reduction axle, the heavy-haul powertrain is designed to deliver the wheel-end torque required to move extremely heavy combinations through challenging terrain.
SHACMAN X5000 heavy-haul key specs:
Engine: M15 heavy-haul
Power: 660 hp
Peak torque: 3,200 N·m
Torque band: 900–1,400 rpm
Axle: Hub-reduction
Gross combination weight in this operation: ~180 tonnes
Mountain heavy haul is not only a test of pulling power. Long downhill sections can place equally significant demands on vehicle control and braking performance.
For this operation, the SHACMAN X5000 used a three-level braking system, combining engine braking and a hydraulic retarder to help control vehicle speed continuously, with the service brakes providing an additional braking layer when required.
For an operation involving a gross combination weight of approximately 180 tonnes, maintaining controlled speed on prolonged descents is a critical part of safe and efficient transport.
https://www.shacmantruks.com/models/x5000/
The steepest climbs presented the greatest challenge.

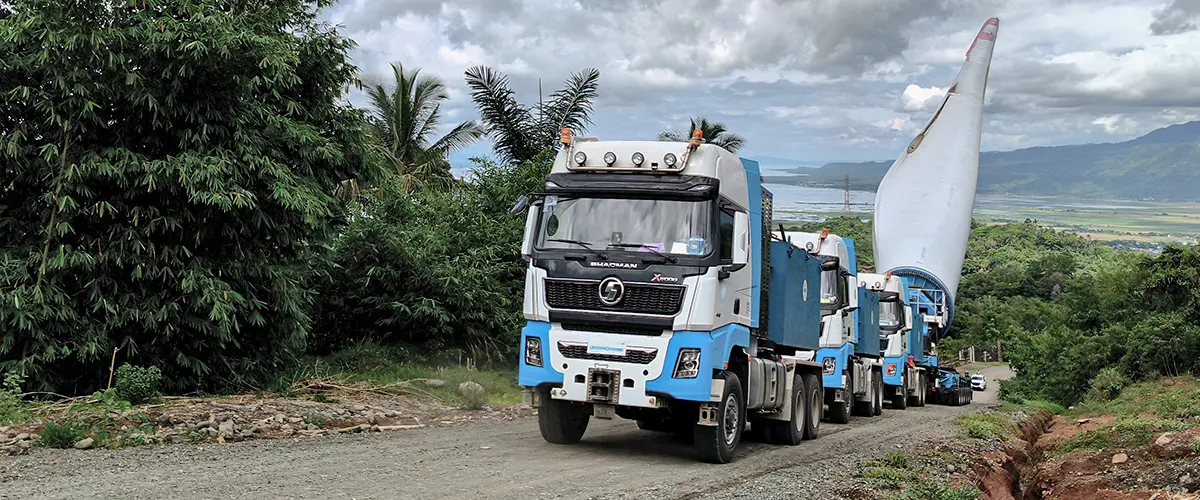

To move the approximately 100-tonne-class payload through the demanding sections of the route, three SHACMAN X5000 tractors were connected in tandem using steel cables and worked together to provide additional pulling force.
The convoy progressed steadily along steep and winding gravel roads, with the vehicles, transport equipment and experienced operators working together as one coordinated system.
The operation demonstrated an important principle of extreme heavy haul: success depends not only on vehicle performance, but also on the right combination of specialized equipment, route planning and experienced on-site coordination.
After reaching the project site, the blade was unloaded, lifted into position and precisely mated with the turbine hub.
As wind power development continues across Southeast Asia, turbine components are becoming increasingly large and demanding to transport. Many new projects are also located in remote or mountainous areas, where infrastructure and road conditions add another layer of complexity to project logistics.
These operations require heavy-haul solutions that can deliver the right combination of power, control, reliability and adaptability.
With its heavy-haul configuration and proven X5000 platform, SHACMAN continues to support demanding transportation operations across challenging environments.
SHACMAN X5000 — Built for the toughest missions.
