In the highly competitive heavy-duty truck sector, Shaanxi Automobile has always occupied a pivotal position with its unremitting pursuit of quality and innovative technology. In particular, the Shacman F3000 6X4 3255 Dump Truck has once again swept the market and become the first choice of all walks of life around the world.
Complementing its powerful engine is an equally impressive transmission system. The Shacman F3000 6X4 3255 Dump Truck’s precisely tuned gearbox is like a harmonious conductor, coordinating smooth and stable power transmission to minimize energy loss. This not only significantly reduces the vehicle’s operating costs, but also helps to create a more sustainable and environmentally friendly transportation solution, achieving an ideal balance between economic efficiency and environmental responsibility.
At the heart of the Shacman F3000 6X4 3255 Dump Truck is a high-performance engine that delivers amazing power output. The Shacman F3000 6X4 3255 Dump Truck engine incorporates advanced combustion technology and a turbocharging system, allowing the Shacman F3000 6X4 3255 Dump Truck to easily conquer the most challenging terrains and carry huge payloads. Whether climbing steep and rugged hillsides or shuttling through muddy and slippery construction sites, the Shacman F3000 6X4 3255 Dump Truck can demonstrate excellent climbing ability and strong traction to ensure smooth operation in any environment.
The chassis and body structure of the Shacman F3000 6X4 3255 Dump Truck have been meticulously designed and reinforced. Constructed using high-strength materials, it boasts exceptional load-bearing capacity and superior torsional strength. Even when fully loaded with heavy materials, the Shacman F3000 6X4 3255 Dump Truck remains stable, maintaining integrity and safety throughout the transportation process. The durability of this Shacman F3000 6X4 3255 Dump Truck makes it an ideal choice for long-term, high-intensity operations in industries such as construction, mining, and infrastructure development.
Truck Name
|
Shacman F3000 6X4 3255 Dump Truck
|
Dimension(Lx W xH)(mm)
|
8500×2560×3450mm
|
GVW (kg)
|
≤50000kg
|
Kerb mass(kg)
|
15000kg
|
Approach / departure angel
|
28/30
|
Front/rear suspension(mm)
|
1525/1654
|
Max. gradeability (%)
|
28
|
Engine brand
|
Weichai Engine
|
Engine model
|
WP10.400E22,400hp
|
Rated output power
|
280kw
|
Emission Standard
|
E-II
|
Displacement(L)
|
9.726L
|
Driving type
|
6×4
|
Axle number
|
3
|
Wheel base(mm)
|
3775+1400mm
|
Clutch
|
φ430 diaphragm spring
|
Gearbox
|
FAST 10JSD180,10 Forward&2 Reverse,Manual
|
PTO
|
QH50
|
Front axle
|
9.5T MAN,with drum braking system
|
Rear axle
|
16T MAN double speed reduction drive axle
|
Steering
|
ZF technology right-hand drive(RHD)
|
Type
|
12.00R20,10+1pc
|
Suspension
|
Both front and rear are high strengthen mechanical leaf spring+4 U bolts
|
Tank capacity(L)
|
380L
|
Max. speed (km/h)
|
75km/h
|
Color
|
Optional
|
Cargo box size(mm)
|
5600×2300×1500mm bottom8mm,side6mm
|
Lifting style
|
φ180 hydraulic front lifting cylinder
|

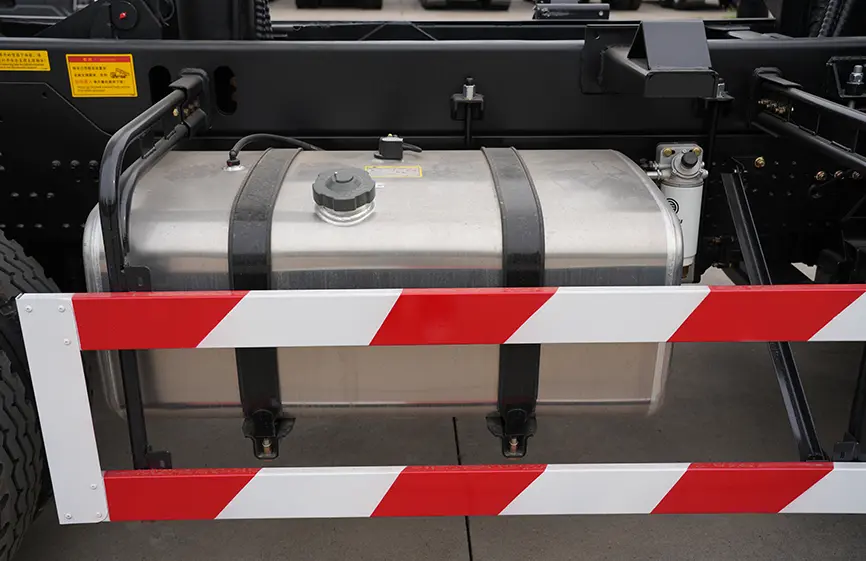

Fuel tank
|
800L
|
