Expectations and demands are on the raise and the F3000 series is the solution. With many configurations available to choose; from the standard tipper or trailer trucks to highly specialized vehicles for that tough job, the F3000 has you covered. No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.
■ Cummins core power upgrade, FAST twin center shaft structure gearbox, HanDe high ratio single stage axle, vehicle power increased by 20%, Cummins ISM engine;
■ High performance: Improved muffler, improved ground clearance, new exhaust system layout, lowest center of gravity, new stabilizing technology;
■ Military grade chassis, reinforced driver cab, upgraded oil bath type air filter, strengthened transmission shaft, improved cab front suspension, new front axle stabilizer bar and muffler, imported cab turning shaft, off road racing quality cab damping spring;
■ Mature power delivery system, increased overall efficiency, higher uptime, lower maintenance cost.
Driving is a stressful endeavor, which is why the F3000 is designed with an improved driver’s cab utilizing advanced technologies from the German truck giant, MAN. Spacious, comfortable and safe, the F3000 cab will bring a peace of mind to you on the job.
■ Frame type structure, local strengthening design, for maximum safety
■ Industry leading torsional stiffness and bending stiffness
■ Highly efficient cabin design; reducing drag and increasing air intake to the engine
■ Toughened laminated windshield glass, ensuring safe operation
■ Greater driver field of vision; allowing better driver awareness
■ Spacious interior and storage space, up to 620mm wide cushioned bed

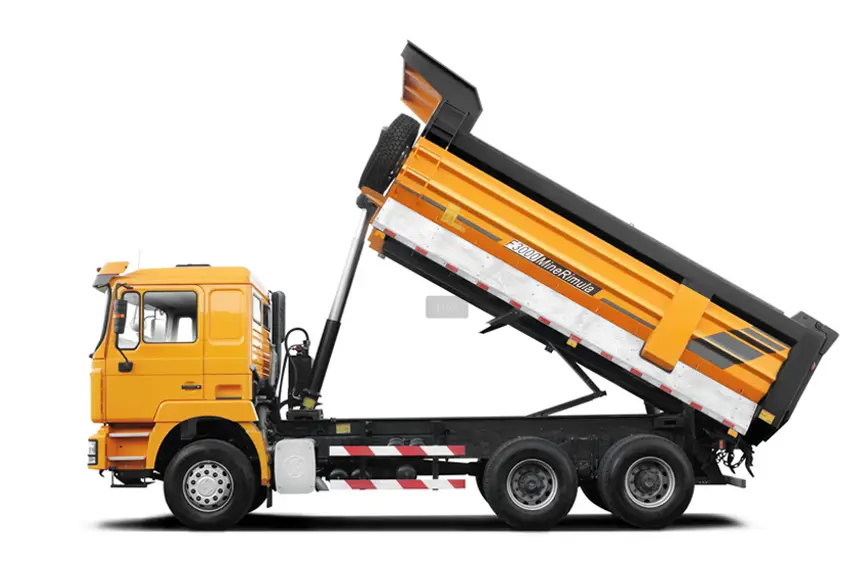

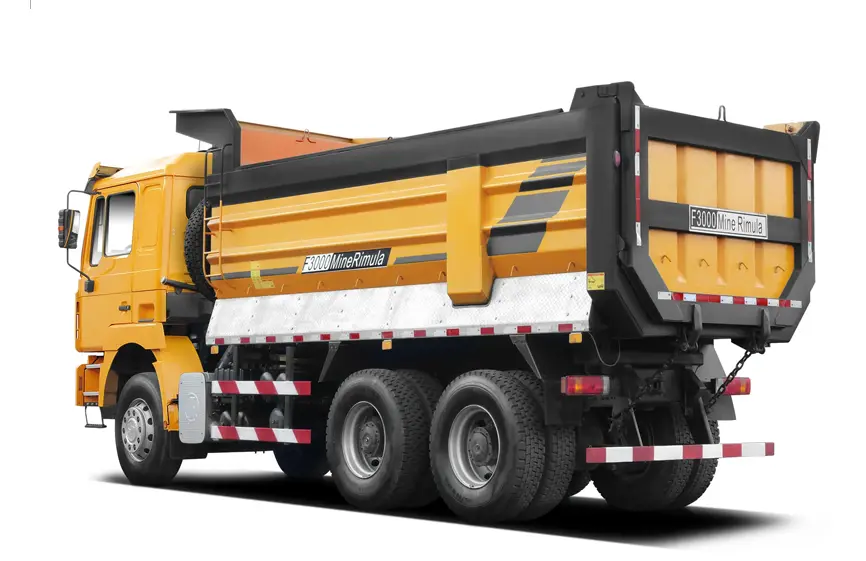

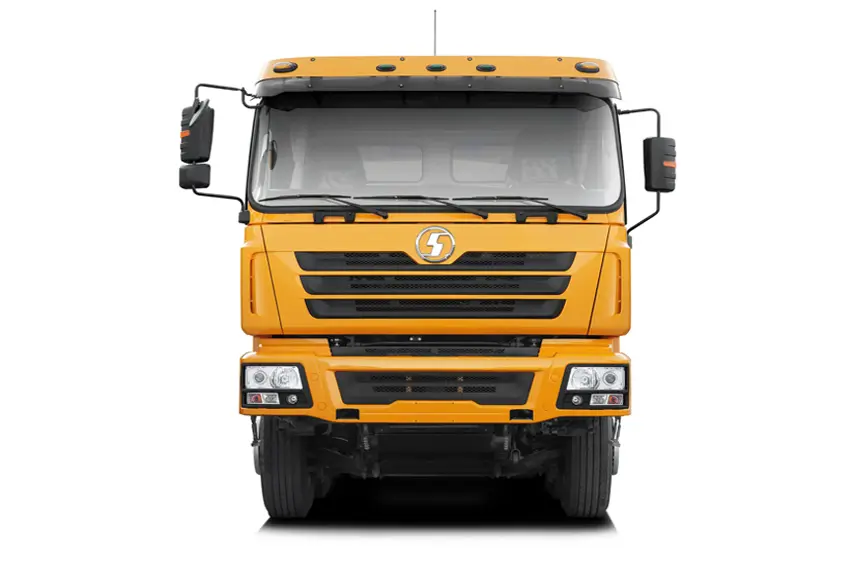

| shacman F3000 6×4 dump truck | |
| Type of goods | Ore/sand/gravel/coal |
| Driving Type | 6×4 |
| Cabin | MAN H3000,Mid Lengthened Flat Roof |
| Engine Brand | WEICHAI |
| Engine Model | WEICHAI WP10.300E22 |
| Engine Power | 270-375HP |
| Engine Emission | Euro II |
| Wheelbase | 3175+1400 |
| Loading Capacity | 30-40 tons |
| Transmission | FAST |
| Front axle | 7.5T MAN 7500kg |
| Rear axle | 16T STR 2*16000kg |
| Tires | 12.00R20 315/80R22.5 12.00R22.5 |
| Fuel | Diesel |
| Fuel Tank | 400L |
| Cargo box size | 5400*2300*1300mm |
| Dimensions (L x W x H) (mm) | 8085*2500*3450mm |
