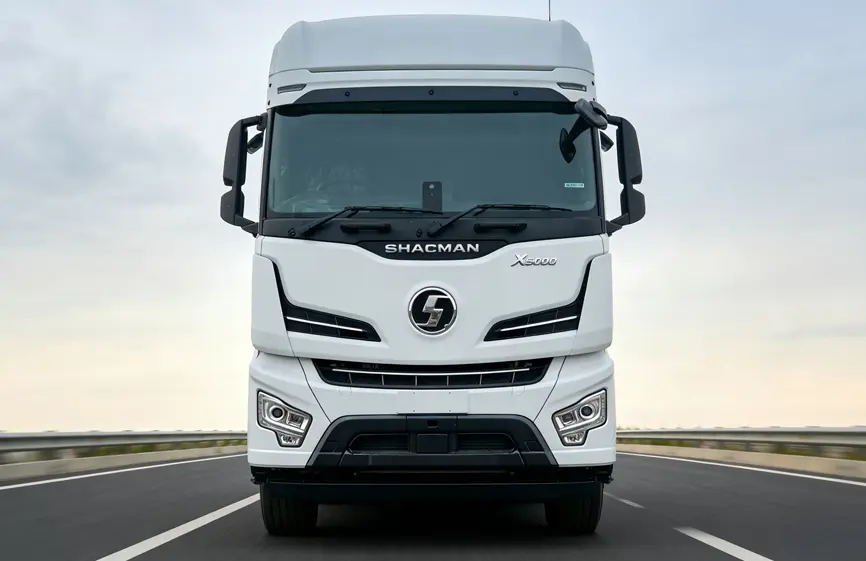

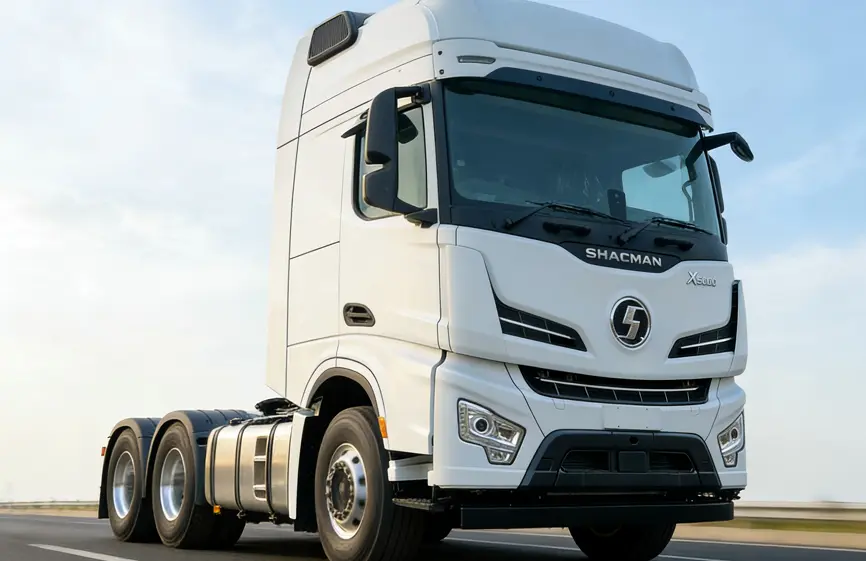

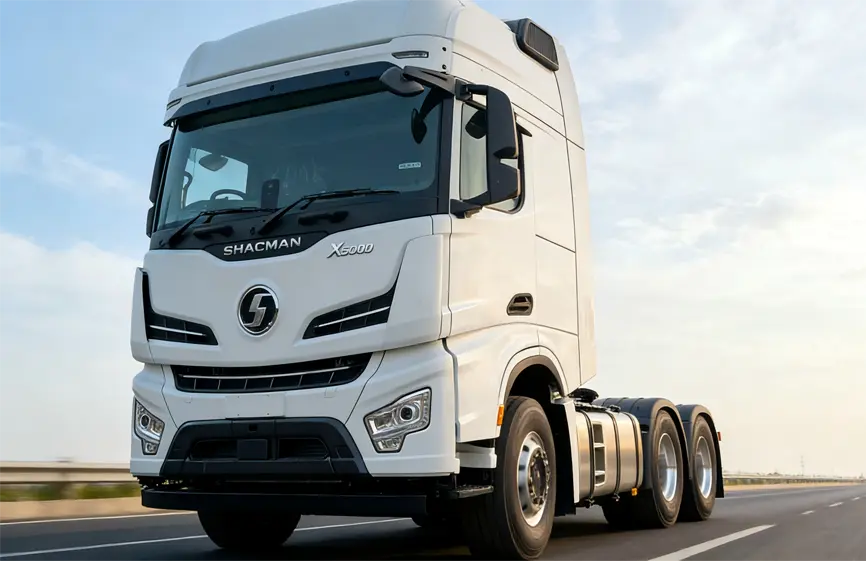

The Shacman X6000 560hp Tractor Truck is a high-end, intelligent heavy-duty vehicle designed to compete with modern European tractors. As a flagship 6×4 model, it is engineered for long-haul logistics, combining a powerful 560hp drivetrain with advanced safety systems and a driver-centric “mobile home” cabin.
| Shacman X6000 560hp Tractor Truck Optional configuration | ||
| Model | X6000 | |
| Drive form | 6×4 | |
| Truck Version: | Lightweight | |
| Design vehicle model | SX4255Y4324CR | |
| Engine | Model | M13 560 |
| Horsepower (PS) | 560 | |
| Emissions | Original row | |
| transmission | SF16JZ260 – Aluminum Casing – QHG50C Spline – FHB400 | |
| Axle ratio | 13T HD Single-Stage Reduction Axle – 2.846 | |
| Frame (mm) | (970-850)×270(single 8) | |
| Wheelbase (mm) | 3200+1350 | |
| Rear overhang of the frame (mm) | 800 | |
| Driver’s cab | Extended high roof | |
| Front axle | HD 7.3T Maintenance-Free Front Axle | |
| Suspension | Front and rear, with fewer leaf springs (2 in front, 3 in rear). | |
| Tank | 730L+300L aluminum alloy | |
| Tires | Front tires: 385/65R22.5; Rear tires and spare tire: 315/80R22.55 (front longitudinal, rear segment); spare tire same as rear tires. | |
| Basic configuration | X6000 extended high-roof cab, top and side fairings, ventilated and heated driver’s seat, power and heated side mirrors, electronically controlled automatic climate control, power windows, power tilt-and-turn windows, highway-grade bumper, three-stage entry steps, central locking (with remote control), multi-function steering wheel, standard center-mounted air filter, right-side exhaust, radiator grille, imported right-hand drive steering gear, Jost domestically produced C-type cast 50mm saddle, integrated mudguards, 220Ah maintenance-free battery, WABCO six-channel EBS+ESC. | |
| One country, one book configuration | Four-point air suspension, SHACMAN logo, all-English signage, no rear window, dual-side toolboxes, aluminum alloy air tank, 1320±30mm ground clearance, adjustable saddle, electric sunroof, reversing buzzer, fuel tank cap anti-theft, simple spare tire carrier, LED headlights, upright battery box with steps, fully enclosed operating platform, visual long-lasting coarse filter, transmission with forced cooling, aluminum alloy wheels, stainless steel wheel rim covers, door sunshades, sunshades without decorative lights, only white marker lights, front underrun protection, EPB electronic parking brake (including trailer brake control), trailer rear work light, fenders with splash guards, silver lettering and silver emblem, removal of herringbone reflector on rear beam, removal of front lower side mirror, 10-inch display screen. Features include: full LCD instrument panel, tire pressure monitoring, reserved 1MPa tire inflation interface, reserved 24V power interface in the overhead compartment, leather steering wheel, automatic headlights, 1200W inverter power supply, illuminated logo, welcome lights, 38L onboard refrigerator, keyless start and entry, lighting in the overhead compartment and sleeper berth, reserved air gun and interface, protective caps on rear wheel nuts, lights, glass, seat belts, tires, splash guards, rearview mirrors, saddle with E logo, SHACMAN Telematics terminal, corrugated mounting plate, deluxe toolbox, 50T jack, and 8kg fire extinguisher. | |
