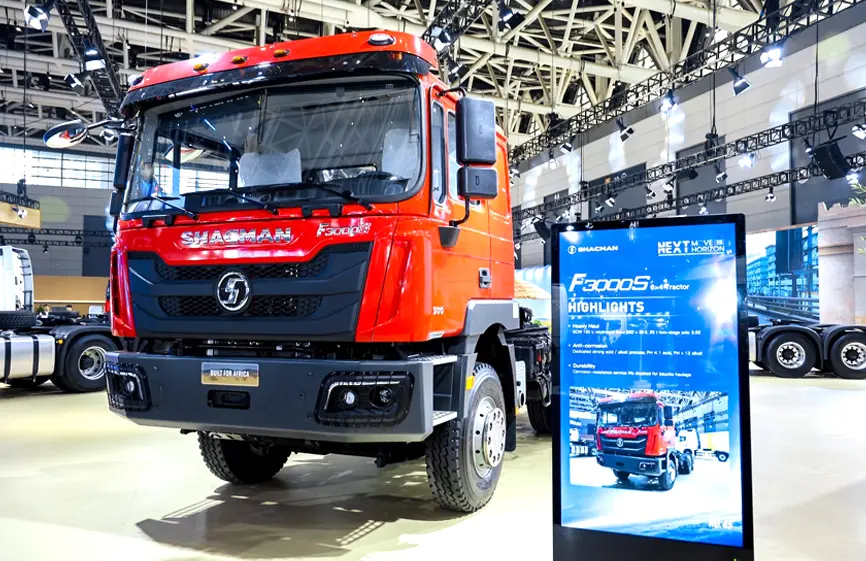

The Shacman F3000S 6×4 Tractor Truck is the upgraded variant of the proven F3000 platform, engineered for long-haul trunk logistics, mining & construction haulage, and cross-border container transport. It is built around a “Golden Powertrain” philosophy — pairing a Weichai diesel engine with a Fast Gear manual transmission and Hande axles derived from mature MAN technology — to deliver a balance of traction power, structural durability, and whole-life operating economy for fleet operators, project contractors, and dealers in Africa, the Middle East, Central Asia, and Latin America.
The F3000S 6×4 is powered by a Weichai diesel engine rated at 375–430 HP, with maximum torque in the 1,600–1,800 N·m range delivered at low engine speeds. This torque characteristic allows the tractor to pull 40–60 tonne trailer loads up gradients without excessive downshifting or clutch slip.
The engine is mated to a Fast Gear 12-speed manual transmission (common variants include the 12JSD200T-B), known for reduced driveline losses and smooth high/low range shifts. Emission configurations span Euro II through Euro V, allowing the vehicle to be specified for markets with varying import regulations.
| Shacman F3000S 6X4 Tractor Truck | |||
| GENERAL SPECIFICATIONS |
Model | SX4255JV384 | |
| Overall dimensions(mm) | 7,545 x 2,550 x 3,700 | ||
| Wheel base(mm) | 3,775+ 1,400 | ||
| Track（mm) | 2.036/1,930 | ||
| Fifth wheel height(mm) | 1,470 | ||
| Curb weight / GCW (kg) | 9,800 / 12,0000 | ||
| Economical / max. speed (km/h) | 50-65/90 | ||
| Market segment | Heavy-haul transportation of industrial productsfor daily use | ||
| MAIN ONFIGURATION |
CAB | Type | Extended flat-roof cab with top deflector |
| Suspension | Four-point hydraulic suspension | ||
| Seat | Air-suspended driver’s seat | ||
| AC | Coolingonly air conditioner | ||
| Sleeper | Single bunk | ||
| ENGINE | Power (PS)/emission standard | 430 / Euro Ⅱ | |
| Rated power / speed (kw / rpm) | 316/ 1,900 | ||
| Max. torque/ economical speed(N·m / rpm) | 2,000/1,000-1,400 | ||
| Displacement(L) | 11.6 | ||
| Transmission | 12-speed MT | ||
| Frame(mm) | 850 x 300 (8+7) | ||
| AXLES | Front axle | 9.5 t | |
| Rear axle | 16 t two-stage reduction axe, 4.769 | ||
| Suspension system | Multi-leaf springs (10 /12) | ||
| Braking & safety (EBS / ESC / AEBS / ACC /LDWS1 360°, etc.) | Reversing camera | ||
| OTHER CHASSIS |
Battery | 165 Ah maintenance-free battery | |
| Fuel tank | 700 L+ 300 L aluminum | ||
| Fifth wheel | 90# fifth wheel | ||
| Tire size | 12.00R24 | ||
