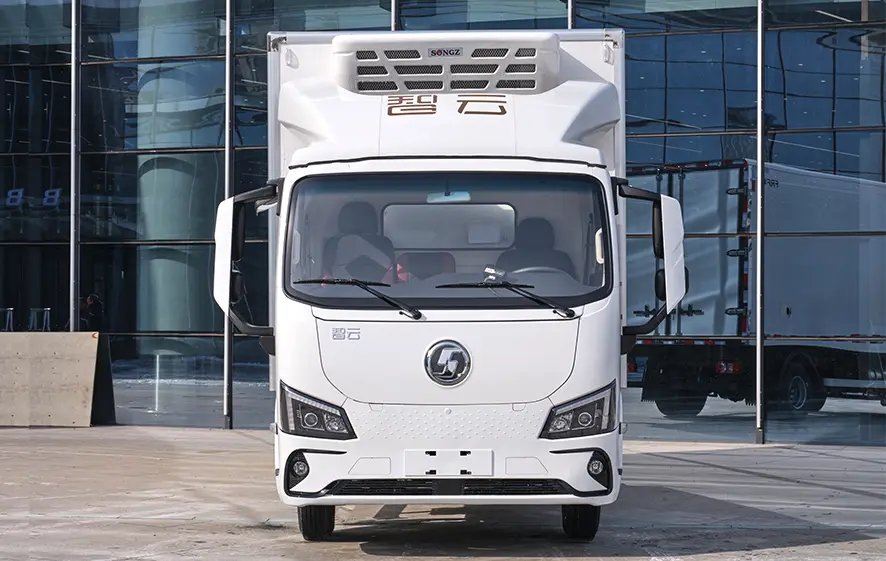

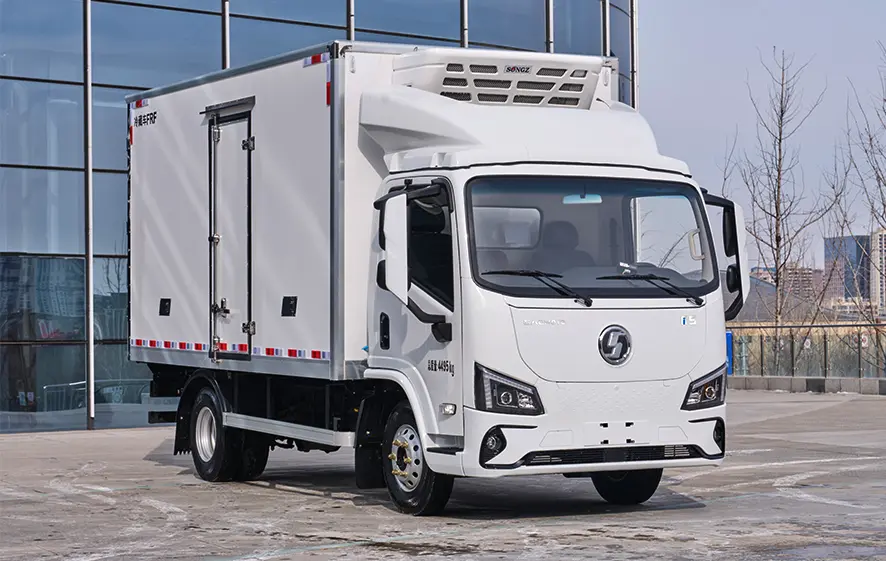

As a zero-emission solution tailored for modern cold chain logistics, the Shacman I9 Electric Refrigerated Van combines advanced electric propulsion, intelligent temperature control, and robust cargo management to meet the demanding requirements of transporting perishable goods. Developed by Shaanxi Automobile Group, this vehicle integrates cutting-edge technology with practicality, positioning it as a reliable choice for businesses aiming to reduce carbon footprints without compromising on performance.
The I9 Electric Refrigerated Van is engineered to address the unique challenges of cold chain logistics, from maintaining precise temperature ranges to ensuring energy efficiency during long-haul deliveries. Its electric powertrain eliminates tailpipe emissions, making it ideal for urban operations with strict environmental regulations, while its refrigerated cargo compartment preserves the integrity of fresh produce, pharmaceuticals, frozen foods, and other temperature-sensitive items.
| SHACMAN I9 ELECTRIC REFRIGERATED VAN | |
| Cab | i9/2020 |
| Powertrain | Inovance 3rd-generation controller + Inovance flat-wire motor |
| Battery pack | CATL / 86.55 kWh |
| Axle | Front 2.2 t, Rear 3.5 t (rated load 5 t) Hand Electric integrated electric drive axle |
| Wheelbase | 3360 |
| Ground clearance at the bottom of the battery pack (mm) | 400 (unladen), 320 (fully laden) |
| Minimum turning circle (m) | <6.5 |
| Maximum speed (fully loaded, 6 t) (km/h) | >100 |
| Maximum gradient (fully loaded, 6 t) (%) | ≥20% |
| Leaf springs | 3/3+2; 3/5+2 (air brakes as standard) |
| Tyres | 7.00R16/8PR |
| Container dimensions | 4200×2100×2100 Panel van |
| 4180×2100×400 Panel van | |
| 4180×2100×400 Flatbed | |
| 4080×2100×2100 Refrigerated | |
| Gross vehicle and load weight | 6t (hydraulic brakes)/8t (air brakes) |
