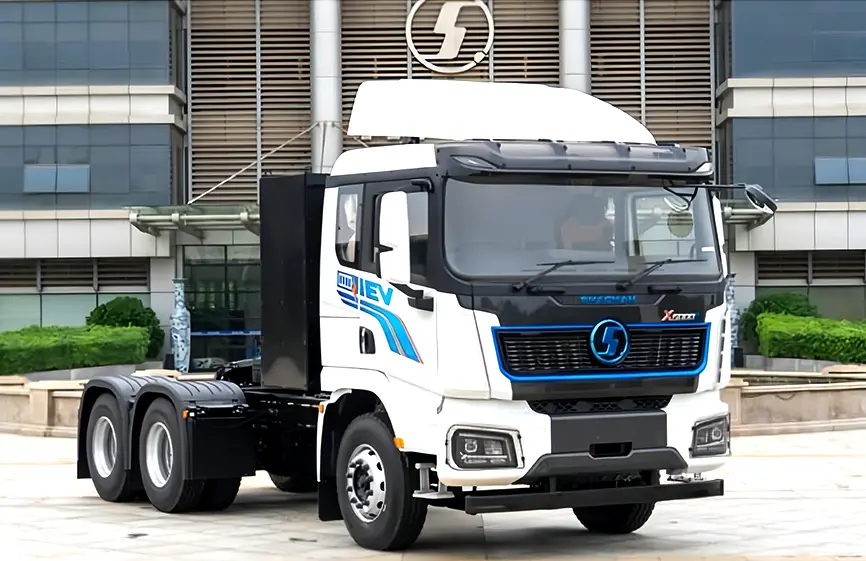

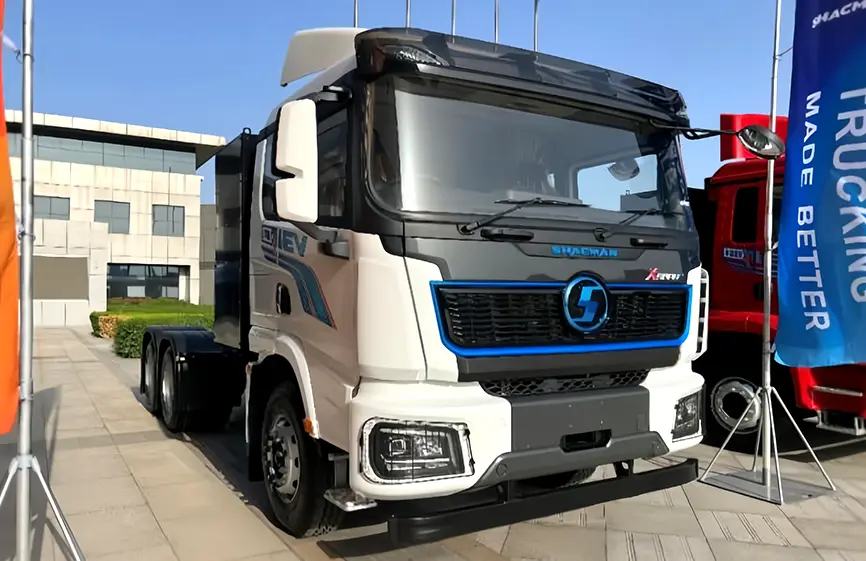

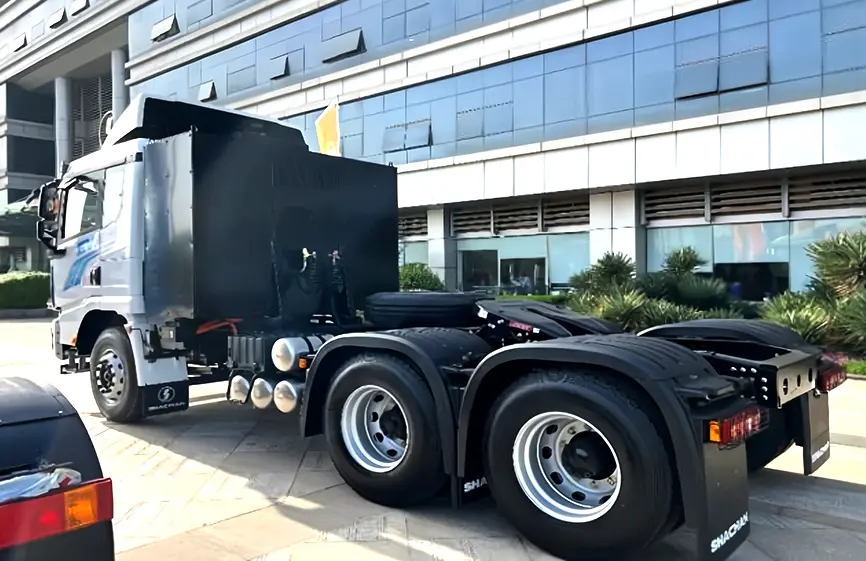

Shacman X5000E 6x4 Ev Prime Mover

As a flagship model in Shacman’s New Energy portfolio, the X5000E 6×4 EV Prime Mover (Electric Tractor) combines advanced electric technology, robust payload capacity, and smart fleet management to meet the demanding needs of short-to-medium haul logistics. Building on Shacman’s proven heavy-duty platform, this vehicle delivers zero-emission efficiency without compromising on performance, making it an ideal choice for fleets aiming to reduce carbon footprints while maintaining productivity.

Engineered for container haulage, regional distribution, and urban logistics, the X5000E 6×4 EV Prime Mover is optimized for short-to-medium haul operations, particularly in urban areas or enclosed job sites with strict environmental regulations. Its 6×4 drive configuration ensures exceptional traction on various terrains, while the electric powertrain eliminates tailpipe emissions, allowing operation in low-emission zones and urban centers.

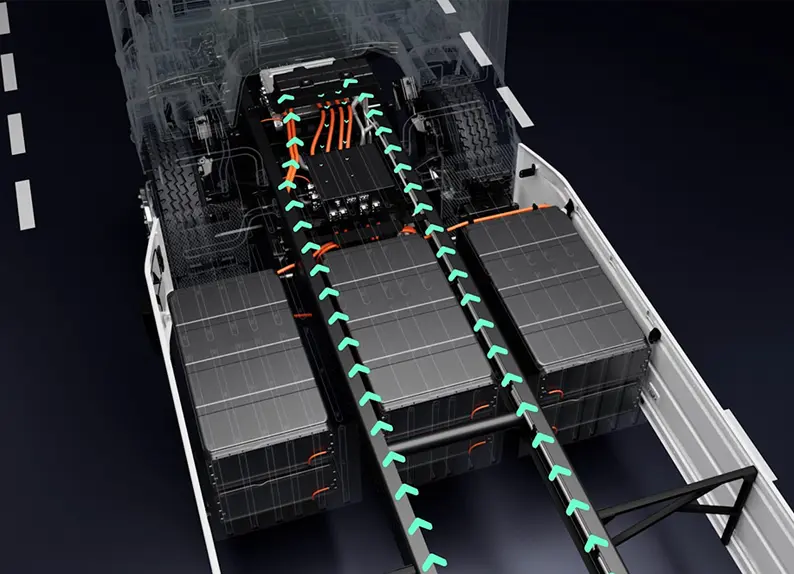

Battery & Range: Equipped with a massive 422.87 kWh lithium iron phosphate (LFP) battery pack, providing a CLTC-certified range of over 300 km, which is ideal for short-to-medium haul operations. The LFP battery offers exceptional durability, with a cycle life of over 8,000 charges, and supports both fast-charging and quick battery swapping.
Charging & Swapping Efficiency: Supports high-power DC fast charging, which replenishes 20-80% battery capacity in a short period, enabling quick top-ups during driver breaks. It also offers a quick battery swapping option, allowing full battery replacement in minutes, significantly reducing downtime and improving operational efficiency.

SHACMAN X5000E 6X4 EV PRIME MOVER
Model	SX425054384N2R
Cabin	X5000E Extended Flat-Top Cab with Roof Air Deflector
Driven type	6×4
Type	Prime Move
Curb Weight(kg)	10,975
GVW(kg)	49000
Ground clearance (mm)	262
Length （mm)	7410
Width （mm)	2540
Height （mm)	3655
Drive Motor
Type	TZ400XS033 Permanent Magnet Synchronous Motor
Rated Power（Kw）	270
Peak Power（Kw）	410
Rated Torque（Kw）	1400
Peak Torque（Kw）	2400
Battery
Brand	CATL
Type	Lithium Iron Phosphate
Capacity(kW.h)	CN352.08kWh
Placement form	Rear
Type	Charging
Transmission
Type	F4E240
Number of gears	4
Shift Type	AMT
Steering
Type	Right-hand drive
Chassis
Frame	850×300（8）
Wheel base (mm)	3780+1345
Suspension
Front Suspension	Reduced leaf spring
Rear Suspension	Reduced leaf spring
Axles
Front axle	HD 7.5T Front axle
Rear axle	13T single reduction driving axle
Ratio	6.167
Tires
Type	12R22.5
Numbers	10+1
Equipment	Hydraulic suspension
	Air main driver seat
	Electric window regulators
	Manual cab tilting
	AC
	ABS (Anti-lock Braking System)
	165Ah Maintenance-free battery
	LED headlights
	Three-step boarding ladder
	Engineering vehicle bumper
	LED lights
